Запчасти Case IH 885N (9-38) - ROOF AND SIDE PANELS, 885 AND 885H TRACTORS WITH METAL CLAD DB WEATHERFRAME (09) - CHASSIS/ATTACHMENTS

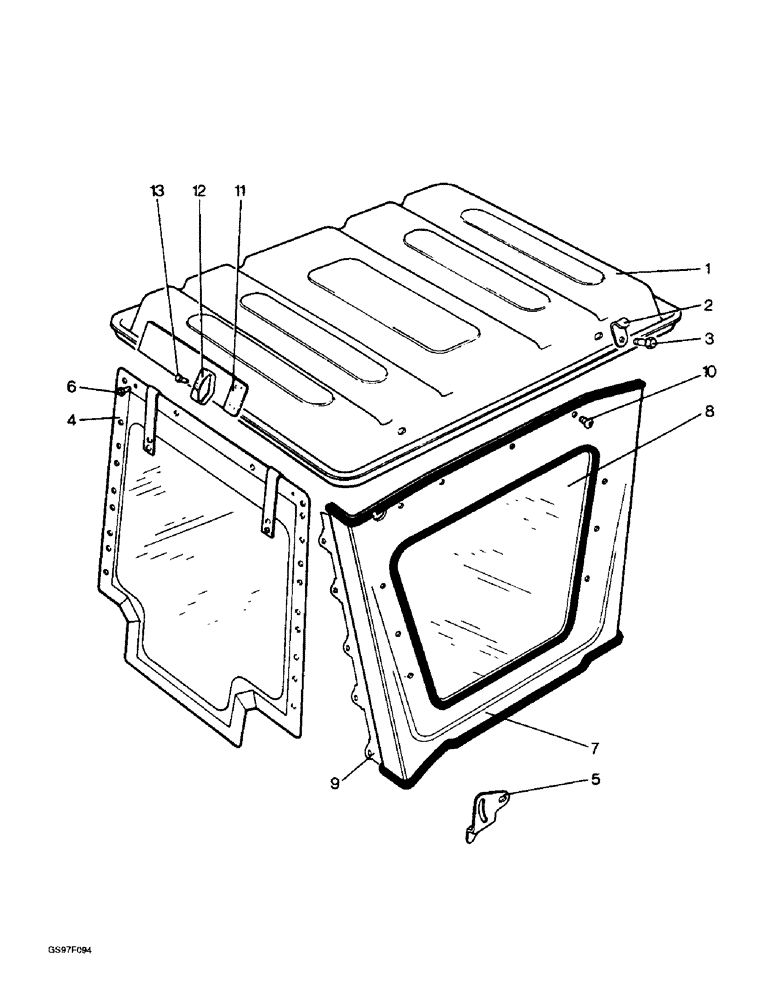

Схема запчастей Case IH 885N - (9-38) - ROOF AND SIDE PANELS, 885 AND 885H TRACTORS WITH METAL CLAD DB WEATHERFRAME (09) - CHASSIS/ATTACHMENTS
10
13
3
9
12
7
8
4
11
1
5
2
6

Артикул

Название

Примечание

Количество

1

K773140

ROOF

- metal clad, also order bracket K772319, bolt K773277, washer K691857, grommet K691959 and roof boss K691965 (Replaces roof K772681)

1шт.

2

K772319

BRACKET

- lifting

4шт.

3

K773277

BOLT

- special, 1/2 inch NC, Serial Range: roof-frame

4шт.

K691857

WASHER

- special

4шт.

K691959

GROMMET

- roof

5шт.

K691965

COLLAR

BOSS - roof

3шт.

4

K771376

SKIRT

CURTAIN - rear, no longer available

1шт.

5

K772960

SKIRT

HOOK - curtain, right-hand fender, no longer available

1шт.

K773202

SKIRT

HOOK - curtain, left-hand fender, no longer available

1шт.

6

K691892

SCREW

- hex, 1/4 NC x 1 inch, rear curtain to frame, no longer available

4шт.

K626662

WASHER

- flat, 1/4 inch, rear curtain to frame (Replaces washer K19470)

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Rear curtain to frame (Replaces washer K626341) 1/4"

4шт.

K691893

NUT

- wing, 1/4 inch NC, rear curtain to frame, no longer available

4шт.

K773593

ROPE

- upper, rear curtain, no longer available

2шт.

K773594

ROPE

- lower, rear curtain, no longer available

2шт.

K774036

ATTACHMENT

HOOP - rubber, no longer available

2шт.

K773069

PANEL

ASSEMBLY - side, complete, right-hand, no longer available, Includes: Ref. 7 and 8

1шт.

K773073

PANEL, SIDE

PANEL ASSEMBLY - side, complete, left-hand, no longer available, Includes: Ref. 7 and 8

1шт.

7

K772649

PANEL

- side, welded assembly, right-hand, no longer available

1шт.

7

K772644

PANEL

- side, welded assembly, left-hand, no longer available

1шт.

8

K772895

WASHER

RAIL - curtain, right-hand, no longer available

1шт.

8

K773003

RAIL - curtain, left-hand, no longer available

1шт.

9

K772654

WINDOW

GLASS - side panel, no longer available

2шт.

K774418

SPOOL

BOBBIN - roof, no longer available

5шт.

K692095

RIVET

- roof, no longer available

5шт.

10

K603926

SCREW

- hex, 1/4 NC x 3/4 inch, Serial Range: panels-frame

24шт.

K773029

STUD

- panels to frame, no longer available

2шт.

K626662

WASHER

- flat, 1/4 inch, panels to frame (Replaces washer K19470)

26шт.

493-41026

LOCK WASHER,Ext Tooth, 1/4"

WASHER - external tooth lock, 1/4 inch, panels to frame (Replaces washer K626552)

26шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, panels to frame (Replaces nut K607043)

2шт.

K773276

HOOK

- coat, panels to frame, no longer available

2шт.

11

K773199

PLATE

- rear number, no longer available

1шт.

12

K954461

PLATE

LAMP ASSEMBLY - rear number plate, no longer available, Includes: Cover, Holder, Base, Screw, and Lead

1шт.

K692044

COVER

- lamp, no longer available

1шт.

K692045

BASE

HOLDER - bulb, no longer available

1шт.

K692046

BASE

- rubber, no longer available

1шт.

K19391

SCREW

- hex, no longer available (Replaces screw K692047)

1шт.

K692048

SPARE PART

LEAD - lamp, no longer available

1шт.

13

K692069

SCREW

- hex, 1/4 NC x 1 inch, lamp to plate, no longer available

3шт.

K626662

WASHER

- flat, 1/4 inch, lamp to plate (Replaces washer K19470)

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Lamp to plate (Replaces washer K626341) 1/4"

3шт.

K691893

NUT

- wing, 1/4 inch NC, Serial Range: lamp-plate

3шт.

K954383

LEAD -, Serial Range: lamp-connectors

1шт.

K67916

ELEC CONNECTOR

CONNECTOR - single

4шт.

K954455

ELECTRICAL WIRE

LEAD - connectors to 3-way connector, no longer available

1шт.

K691989

CLIP

- leads to cab, no longer available

1шт.

K692034

STRAP

CLIP - leads to cab, no longer available

3шт.

K692035

LINK

- retaining, leads to cab, no longer available

3шт.

Выбрано товаров: 48
