Запчасти Case IH 885N (9-32) - FENDERS AND CAB FRAME, 885Q AND 885QH TRACTORS (09) - CHASSIS/ATTACHMENTS

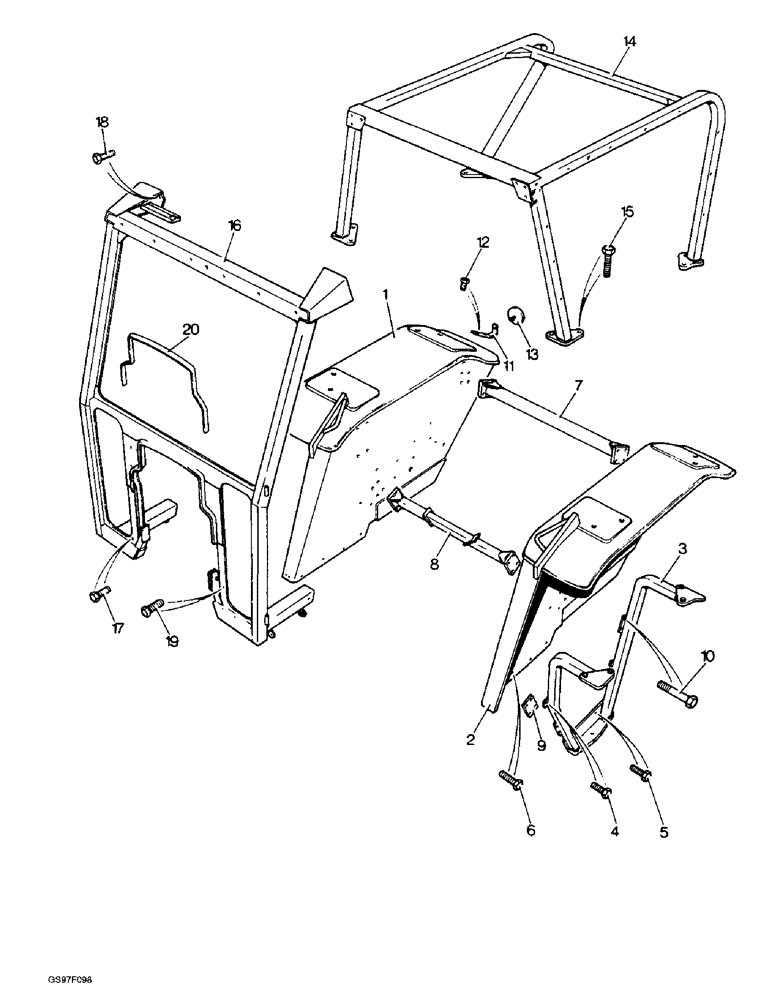

Схема запчастей Case IH 885N - (9-32) - FENDERS AND CAB FRAME, 885Q AND 885QH TRACTORS (09) - CHASSIS/ATTACHMENTS
17
19
8
3
14
9
15
20
7
6
2
18
1
5
13
11
4
10
16
12

Артикул

Название

Примечание

Количество

1

K955161

WHEEL

FENDER - full, right-hand, tractor serial number 11010300 and after, no longer available

1шт.

1

K950303

WHEEL

FENDER - full, right-hand, tractor serial numbers prior to 11010300, no longer available

1шт.

2

K955162

RIM

FENDER - full, left-hand, tractor serial number 11010300 and after, no longer available

1шт.

2

K950304

RIM

FENDER - full, left-hand, tractor serial numbers prior to 11010300, no longer available

1шт.

K955119

FRAME

BRACKET - support, right-hand, tractor serial number 11010300 and after, no longer available

1шт.

3

K955118

FRAME

BRACKET - support, left-hand, tractor serial number 11010300 and after, no longer available

1шт.

K950299

FRAME

BRACKET - support, right-hand, tractor serial numbers prior to 11010300, no longer available

1шт.

3

K950300

FRAME

BRACKET - support, left-hand, tractor serial numbers prior to 11010300, no longer available

1шт.

4

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Fenders to support brackets Hex, 5/16"-18 x 7/8", G5, Full Thd

4шт.

K626682

WASHER

- flat, 5/16 inch, fenders to support brackets

8шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , fenders to support brackets 5/16"

8шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, Fenders to support brackets

8шт.

5

K602736

SCREW

- hex, 1/4 NC x 7/8 inch, fenders to support brackets

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Fenders to support brackets 1/4"

4шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, fenders to support brackets (Replaces nut K607043)

4шт.

6

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch, fenders to cab floor (Replaces bolt K602733)

30шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Fenders to cab floor (Replaces washer K626341) 1/4"

30шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, fenders to cab floor (Replaces nut K607043)

30шт.

K954444

STRIP

- sealing, fenders to cab floor, no longer available

2шт.

7

K955742

SUPPORT

BEAM - cross, rear, tractor serial number 11010300 and after, no longer available

1шт.

7

K949508

BEAM

- cross, rear, tractor serial numbers prior to 11010300, no longer available

1шт.

8

K955743

BEAM

- cross, front, tractor serial number 11010300 and after, no longer available

1шт.

8

K950604

BEAM

- cross, front, tractor serial numbers prior to 11010300, no longer available

1шт.

9

K948719

PLATE - clamping, beams to fenders, no longer available

4шт.

10

413-748

BOLT,Hex, 7/16" - 14 x 3", Gr 5

- hex, 7/16 NC x 3 inch, beams to fenders (Replaces bolt K600703)

16шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, , Beams to fenders (Replaces washer K626344) 7/16"

16шт.

11

K929468

BRACKET

REFLECTOR - bracket

2шт.

12

K603924

SCREW

- hex, 1/4 NC x 1/2 inch, brackets to fender, no longer available

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Brackets to fender (Replaces washer K626341) 1/4"

4шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, brackets to fender (Replaces nut K607043)

4шт.

13

K964716

REFLECTOR

ASSEMBLY - bracket, no longer available, order reflector K302778, washer 492-11010 and nut K11109

2шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, , Reflectors to brackets #10

2шт.

K11109

NUT

- nex, 2 inch BA, Serial Range: reflectors-brackets

2шт.

13

K302778

REFLECTOR

- bracket

2шт.

14

K955191

FRAME

- upper, welded assembly, tractor serial number 11010300 and after, no longer available

1шт.

14

K954142

CAB

FRAME - upper, welded assembly, tractor serial numbers priot to 11010300, no longer available

1шт.

15

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

Frame to fenders (Replaces bolt K603274) Hex, 5/8"-11 x 1 1/2", G5, Full Thd

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Frame to fenders (Replaces washer K19485) 5/8"

8шт.

K691826

WASHER

- special, Serial Range: frame-fenders

8шт.

16

K955739

FRAME

- front, welded assembly, tractor serial number 11010300 and after, no longer available

1шт.

16

K950373

FRAME

- front, welded assembly, tractor serial numbers prior to 11010300, no longer available

1шт.

17

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SCREW - hex, 5/16 NC x 3/4 inch, frame to cab floor

10шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , frame to cab floor (replaces washer K19481) 5/16"

10шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, Frame to cab floor (Replaces nut K607044)

10шт.

K949707

SHIM

- 0.060 inch, front frame to upper frame, no longer available

2шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch, front frame to upper frame (Replaces bolt K602936)

4шт.

18

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

Front frame to upper frame (Replaces bolt K602983) Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

492-11038

LOCK WASHER,3/8"

front frame to upper frame (Replaces washer K19482) 3/8"

6шт.

425-106

NUT,3/8"-16, Cl 5

Front frame to upper frame (Replaces nut K607045) 3/8"-16, G5

2шт.

19

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch, front frame to scuttle (Replaces bolt K602847)

3шт.

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SCREW - hex, 5/16 NC x 3/4 inch, front frame to scuttle

7шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , front frame to scuttle (Replaces washer K19481) 5/16"

10шт.

K627726

GROMMET

- wiper lead, 1 inch, front frame, no longer available

1шт.

K627742

GROMMET

PLUG - rubber, 15/32 inch diameter, loader control cable apertures

2шт.

K955470

ADHESIVE

STRIP - seating, 6 x 12 mm x 15 inch (381 mm) long, fender door stops, no longer available

2шт.

20

K953103

STRIP

- seating, 1/16 x 5/8 x 43 inch (1092 mm) long, bonnet, no longer available

1шт.

Выбрано товаров: 56
