Запчасти Case IH 885N (9-28) - FENDERS AND FRAME PLATFORMS, 885, 885G AND 885H TRACTORS WITH REINFORCED FULL FENDERS (09) - CHASSIS/ATTACHMENTS

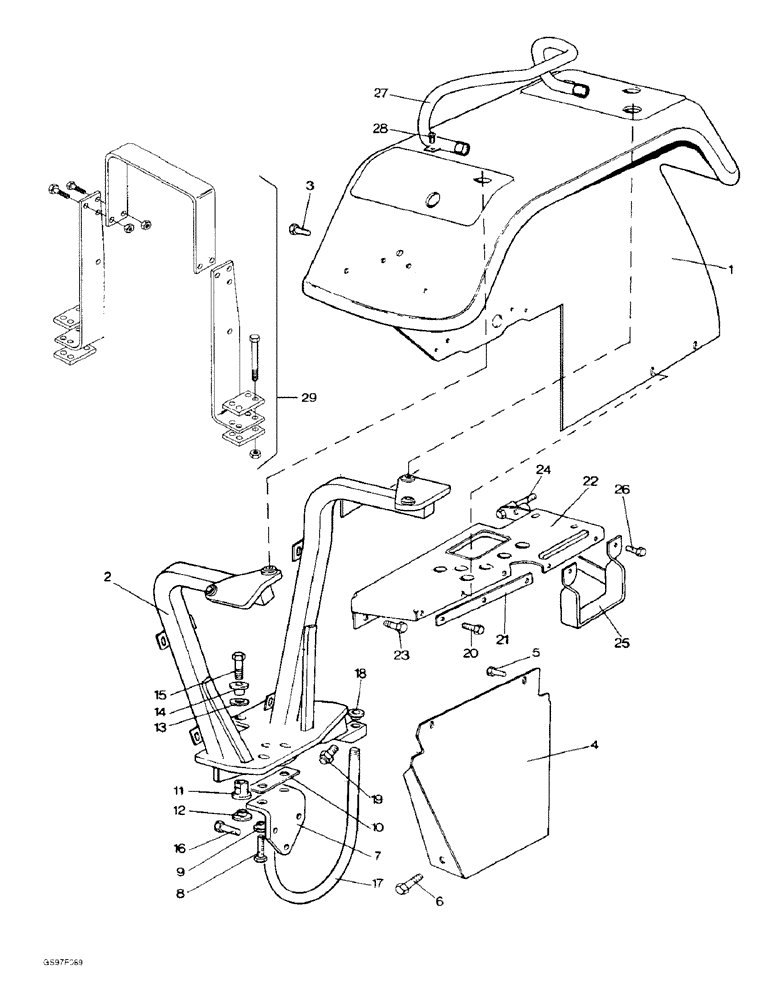

Схема запчастей Case IH 885N - (9-28) - FENDERS AND FRAME PLATFORMS, 885, 885G AND 885H TRACTORS WITH REINFORCED FULL FENDERS (09) - CHASSIS/ATTACHMENTS
20
22
3
18
27
26
6
11
17
29
24
23
9
15
4
25
5
2
1
13
10
19
14
28
16
8
12
7
21

Артикул

Название

Примечание

Количество

1

K775027

FENDER

- full, right-hand, no longer available

1шт.

K775030

FENDER

- full, left-hand, no longer available

1шт.

2

K771967

FRAME

SUPPORT - right-hand fender, no longer available

1шт.

K771966

FRAME

SUPPORT - left-hand fender, no longer available

1шт.

3

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SCREW - hex, 5/16 NC x 3/4 inch, fenders to supports

16шт.

K626682

WASHER

- flat, 5/16 inch, Serial Range: fenders-supports

16шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , fenders to supports (Replaces washer K19481) 5/16"

16шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, Fenders to supports (Replaces nut K607044)

16шт.

4

K773487

GUARD

SHIELD - mud, right-hand fender, no longer available

1шт.

K773488

GUARD

SHIELD - mud, left-hand fender, no longer available

1шт.

5

K602740

SCREW

- hex, 1/4 NC x 5/8 inch, shields to fenders, no longer available

4шт.

K626682

WASHER

- flat, 5/16 inch, Serial Range: shields-fenders

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Shields to fenders (Replaces washer K626341) 1/4"

4шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, shields to fenders (Replaces nut K607043)

4шт.

6

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch, shields to supports (Replaces bolt K600316)

4шт.

K691987

WASHER,10.5mm ID x 30mm OD x 3.0mm Thk

- special, 5/16 inch, Serial Range: shields-supports

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , shields to supports (Replaces washer K19481) 5/16"

4шт.

7

K772147

SUPPORT

PLATE - support , no longer available

2шт.

8

K691839

BOLT

- hex, 1/2 NC x 2-1/4 inch, support plates to fenders, no longer available

4шт.

9

K771938

BUSHING

- nylon, support plates to fenders, no longer available

4шт.

K691835

WASHER

- special, 1/2 inch, support, Serial Range: plates-fenders

4шт.

K626686

WASHER

- hex, 1/2 inch, support, Serial Range: plates-fenders

4шт.

10

K772134

PAD

- nylon, support plates to fenders, no longer available

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Support plates to fenders (Replaces washer K626345) 1/2"

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Support plates to fenders (Replaces nut K607047) 1/2"-13, G5

4шт.

11

K773969

ADJUSTER

- supports to rear axle housing, no longer available

4шт.

12

K771563

BUSHING

- nylon, supports to rear axle housing

4шт.

13

K773970

WASHER

- nylon, 1/2 inch, supports to rear axle housing, no longer available

4шт.

K692050

WASHER

- flat, 1/2 inch, supports to rear axle housing

4шт.

14

K692049

WASHER

- special, 1/2 inch, supports to rear axle housing

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Supports to rear axle housing (Replaces washer K626345) 1/2"

4шт.

15

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

Supports to rear axle housing (Replaces bolt K600885) Hex, 1/2"-13 x 1 3/4", G5

1шт.

16

413-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

- hex, 1/2 NC x 1-5/8 inch, supports to reduction units (Replaces screw K691960)

6шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Supports to reduction units (Replaces washer K626345) 1/2"

6шт.

K626686

WASHER

- flat,1/2 inch, supports to reduction units

6шт.

17

K772171

BOLT

U-BOLT - 3/4 inch NC, supports to reduction units, no longer available

2шт.

18

K771554

BUSHING

- nylon, supports to reduction units, no longer available

4шт.

K19476

WASHER

- flat, 3/4 inch, supports to reduction units

4шт.

425-1412

JAM NUT,Jam, 3/4"-10, G5

- hex jam, 3/4 inch NC, supports to reduction units (Replaces nut K607086)

8шт.

19

K971994

SCREW - special, 1/2 inch NF, supports to reduction units

4шт.

20

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch, fenders to platforms (Replaces bolt K602847)

6шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , fenders to platforms (Replaces washer K19481) 5/16"

6шт.

K626682

WASHER

- flat, 5/16 inch, Serial Range: fenders-platforms

12шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, Fenders to platforms (Replaces nut K607044)

6шт.

21

K772177

STRIP

- nylon, fenders to platforms, no longer available

2шт.

22

K943550

FRAME

PLATFORM ASSEMBLY - frame, right-hand, used with 885 and 885G tractors, no longer available, Includes: Bracket and Bearing

1шт.

22

K945597

FRAME

PLATFORM ASSEMBLY - frame, right-hand, used with 885H tractors, no longer available, Includes: Bracket and Bearing

1шт.

K943553

FRAME

PLATFORM ASSEMBLY - frame, left-hand, no longer available, Includes: Bracket and Bearing

1шт.

K85415

BRACKET

- bearing

1шт.

K904258

SPHERICAL BEARING

BEARING - brake cross shaft

1шт.

23

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

Platforms to main frame (Replaces K603003) Hex, 7/16"-14 x 1", G5, Full Thd

8шт.

24

113-320

BOLT,Hex, 7/16" - 14 x 5-1/2", Gr 5

Platforms to main frame (Replaces bolt K600625) Hex, 7/16"-14 x 5 1/2", G5

2шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, , Platforms to main frame (Replaces washer K19483) 7/16"

10шт.

25

K944297

X

STIRRUP - right-hand, no longer available

1шт.

K944296

X

STIRRUP - left-hand, no longer available

1шт.

26

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch, stirrups to platforms (Replaces bolt K602803)

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , stirrups to platforms (Replaces washer K19481) 5/16"

4шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, Stirrups to platforms (Replaces nut K607001)

4шт.

27

K773527

SEAT

RAIL - seat, no longer available

1шт.

28

K603926

SCREW

- hex, 1/4 NC x 3/4 inch, seat, Serial Range: rail-fender

2шт.

K626662

WASHER

- flat, 1/4 inch, seat rail to fender (Replaces washer K19470)

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Seat rail to fender (Replaces washer K626341) 1/4"

2шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, seat rail to fender (Replaces nut K607043)

2шт.

29

220520A1

KIT - ROPS attachment

1шт.

29

245080A1

KIT - ROPS attachment, foldable

1шт.

Выбрано товаров: 65
