Запчасти Case IH 885N (9-16) - FRONT WHEELS, BALLAST WEIGHTS AND FRONT FENDERS (09) - CHASSIS/ATTACHMENTS

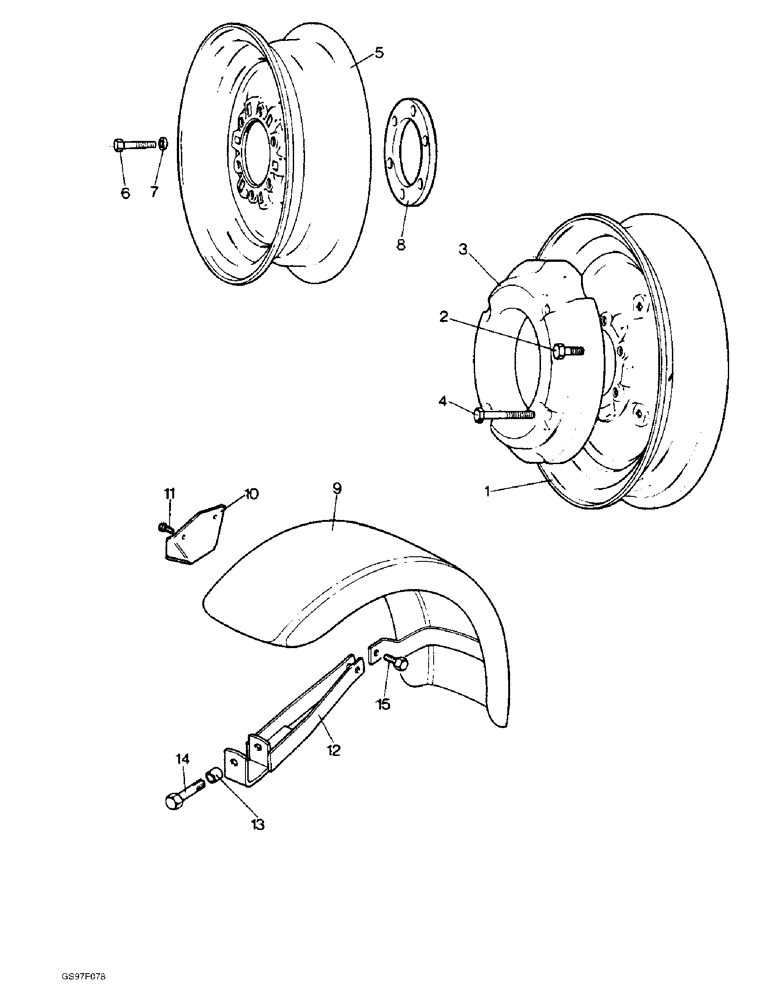

Схема запчастей Case IH 885N - (9-16) - FRONT WHEELS, BALLAST WEIGHTS AND FRONT FENDERS (09) - CHASSIS/ATTACHMENTS
7
13
11
10
6
2
15
12
5
3
9
8
4
14
1

Артикул

Название

Примечание

Количество

1

K947937

WHEEL

front, 4.50E x 16 inch, fits 6.00-16 tires, used with 885Q, 885Sk, 885, 885G, 885QH and 885H tractors

2шт.

2

K907400

WHEEL BOLT,1/2" - 13 x 1 1/8"

BOLT - wheel, 1/2 NC x 1 inch, used with 885Q, 885Sk, 885 and 885G tractors

12шт.

2

K971809

WHEEL BOLT

- wheel, 1/2 NC x 2-1/4 inch, used with 885QH and 885H tractors

12шт.

3

K909316

WEIGHT

- ballast, 85 lb, used with 885Q, 885Sk, 885 and 885G tractors

2шт.

4

413-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

Used with 885Q, 885Sk, 885 and 885G tractors (Replaces bolt K600817) Hex, 1/2"-13 x 3 3/4", G5

8шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Used with 885Q, 885Sk, 885 and 885G tractors (Replaces nut K607004) 1/2"-13, G5

8шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Used with 885Q, 885Sk, 885 and 885G tractors (Replaces washer K19484) 1/2"

8шт.

5

K947937

WHEEL

- front, 4.50E x 16 inch, fits 6.00-16 tires, used with 885N tractors

2шт.

6

413-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 5

- hex, 1/2 NC x 1-7/8 inch, used with 885N tractors (Replaces bolt K600872)

12шт.

7

K626687

WASHER

- special, 1/2 inch, used with 885N tractors

12шт.

8

K910174

BUSHING

SPACER - front wheel, used with 885N tractors

2шт.

K922457

SPARE PART

UNIT ASSEMBLY - front fender, used with 885QH and 885H tractors, no longer available, Includes: Ref. 9 - 15, Washer, and Nut

1шт.

9

K972520

FENDER

- front, left-hand, no longer available

1шт.

K972521

FENDER

- front, right-hand, no longer available

1шт.

10

K925112

SUPPORT

BRACKET - support, no longer available

2шт.

11

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch, brackets to fenders (Replaces bolt K602803)

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , brackets to fenders (Replaces washer K19481) 5/16"

4шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, Brackets to fenders (Replaces nut K607001)

4шт.

12

K919385

SUPPORT

STAY - support, no longer available

2шт.

13

A30015

NEEDLE BEARING,0.375" ID x 0.563" OD x 0.625"

TUBE - distance, stays to stub axles (Replaces tube K916450)

2шт.

14

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

- hex, 3/8 NC x 4 inch, stays to stub axles (Replaces bolt K600420)

2шт.

492-11038

LOCK WASHER,3/8"

stays to stub axles (Replaces washer K19482) 3/8"

2шт.

425-106

NUT,3/8"-16, Cl 5

Stays to stub axles (Replaces nut K607002) 3/8"-16, G5

2шт.

15

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

Stays to fenders (Replaces bolt K603104) Hex, 1/2"-13 x 1", G5, Full Thd

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Stays to fenders (Replaces washer K19484) 1/2"

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Stays to fenders (Replaces nut K607004) 1/2"-13, G5

2шт.

Выбрано товаров: 26
