Запчасти Case IH 885N (9-14) - REAR WHEELS AND BALLAST WEIGHTS (09) - CHASSIS/ATTACHMENTS

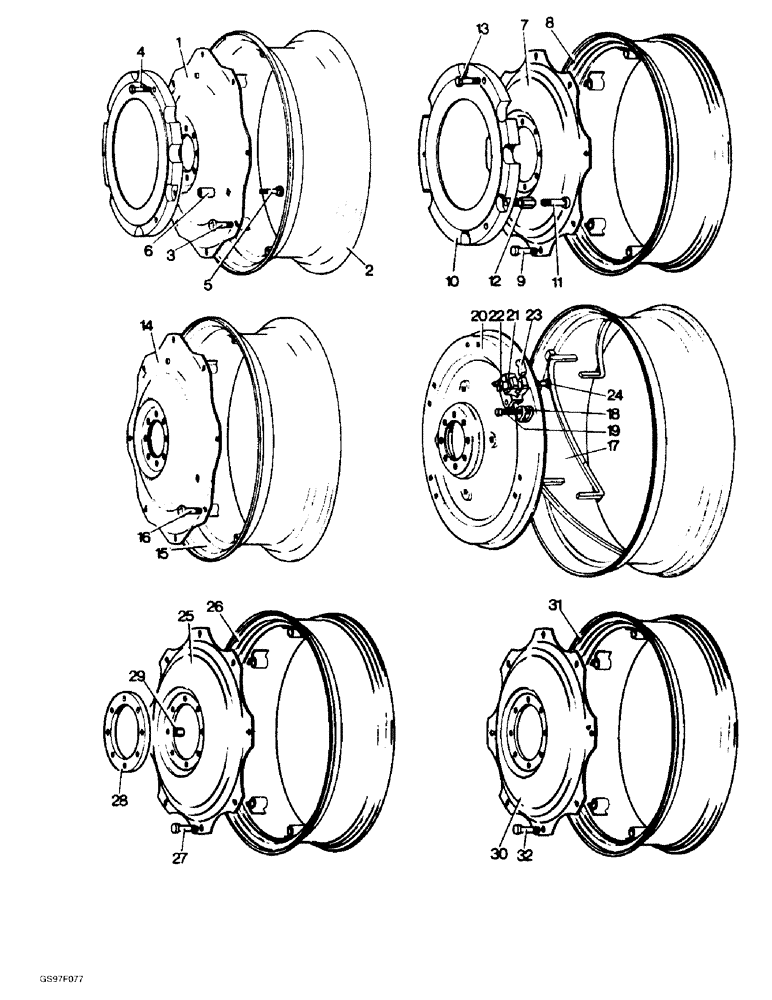

Схема запчастей Case IH 885N - (9-14) - REAR WHEELS AND BALLAST WEIGHTS (09) - CHASSIS/ATTACHMENTS
23
7
15
5
29
8
32
17
13
1
2
26
4
12
19
20
18
24
27
16
6
10
31
22
11
3
28
14
30
21
9
25

Артикул

Название

Примечание

Количество

K301005

RIM

CENTER ASSEMBLY - rear rim, W10 x 32 inch, fits 12.4/11-32 tires, used with 885Q, 885QH, 885Sk, 885, 885H and 885G tractors, no longer available (Replaces center assembly K947926), Includes: Ref. 1 - 3, Washer, and Nut

2шт.

At first change, order new wheel K306358. After first change, individual parts can be ordered.

1шт.

1

K301007

DISC, WHEEL

CENTER - rear wheel, no longer available (Replaces center K909538)

1шт.

At first change, order new wheel K306358. After first change, individual parts can be ordered.

1шт.

2

K301006

RIM

- rear wheel, W10 x 32 inch (Replaces rim K901852)

1шт.

3

K611270

WHEEL BOLT,5/8" - 18 x 2.91", Gr 5

BOLT - rim, 5/8 NF x 2-7/8 inch

16шт.

K19475

WASHER

- flat, 5/8 inch

16шт.

B88351

NUT

- hex, 5/8 inch NF (Replaces nut K617006)

16шт.

4

K86167

WEIGHT

- ballast, 100 lb, used with 885Q, 885QH, 885Sk, 885, 885H and 885G tractors

4шт.

5

K690452

BOLT

- coach, 5/8 BSF x 2-7/8 inch

6шт.

6

K910181

BUSHING

SPACER - distance

6шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Used with 885Q, 885QH, 885Sk, 885, 885H and 885G tractors (Replaces washer K19485) 5/8"

6шт.

K19406

WHEEL NUT

- hex, 5/8 inch BSF, used with 885Q, 885QH, 885Sk, 885, 885H and 885G tractors

6шт.

K947924

RIM

CENTER ASSEMBLY - rear rim, W11 x 28 inch, fits 14.9/13-28 tires, used with 885Q, 885QH, 885Sk, 885, 885H and 885G tractors, no longer available as an assembly, order components, Includes: Ref. 7 - 9, Washer, and Nut

2шт.

7

K301003

WHEEL

CENTER - rear wheel, no longer available (Replaces center K905284)

1шт.

At first change, order new wheel K262521 (W9 x 28) to fit 11.2/10-28 and 12.4/11-28 tires or wheel K262524 (11 x 28) to fit 13.6 x 12-28 and 14.9 x 13-28 tires.

1шт.

8

K301060

RIM

- rear wheel, W11 x 28 inch (Replaces rim K67980)

1шт.

9

K611270

WHEEL BOLT,5/8" - 18 x 2.91", Gr 5

BOLT - rim, 5/8 NF x 2-7/8 inch

16шт.

K19475

WASHER

- flat, 5/8 inch

16шт.

425-1110

NUT,5/8"-18, G5

(Replaces nut K617006) 5/8"-18, G5

16шт.

10

K86167

WEIGHT

- ballast, 100 lb, used with 885Q, 885QH, 885Sk, 885, 885H and 885G tractors

4шт.

11

K611270

WHEEL BOLT,5/8" - 18 x 2.91", Gr 5

BOLT - rim, 5/8 NF x 2-7/8 inch, used with 885Q, 885QH, 885Sk, 885, 885H and 885G tractors

6шт.

12

K914869

STUD

- special, 5/8 inch NF, used with 885Q, 885QH, 885Sk, 885, 885H and 885G tractors

6шт.

13

K19305

BOLT

- 5/8 BSF x 2 inch, used with 885Q, 885QH, 885Sk, 885, 885H and 885G tractors

6шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Used with 885Q, 885QH, 885Sk, 885, 885H and 885G tractors (Replaces washer K19485) 5/8"

6шт.

K948185

RIM

CENTER ASSEMBLY - rear rim, W12 x 24 inch, fits 14.9/13-24 tires, used with 885Q, 885QH, 885Sk, 885, 885H and 885G tractors, Includes: Ref. 14 - 16, Washer, and Nut

2шт.

14

K301038

WHEEL

CENTER - rear wheel, no longer available (Replaces center K907539)

1шт.

Order wheel K262518. If this part is for a W8 x 24 front four-wheel drive tractor, order two K262518 wheels.

1шт.

15

K301040

DISC, WHEEL

RIM - rear wheel, W12 x 24 inch, no longer available

1шт.

At first change, order new wheel K262518. After first change, individual parts can be ordered.

1шт.

16

K611270

WHEEL BOLT,5/8" - 18 x 2.91", Gr 5

BOLT - rim, 5/8 NF x 2-7/8 inch

16шт.

K19475

WASHER

- flat, 5/8 inch

16шт.

425-1110

NUT,5/8"-18, G5

Replaces nut K617006) 5/8"-18, G5

16шт.

K947936

RIM

CENTER ASSEMBLY - rear rim, power-adjusted W11 x 28 inch, fits 12.4/11-28 tires, used with 885Q, 885QH, 885Sk, 885, 885H and 885G tractors, no longer available as an assembly, order components, Includes: Ref. 17 - 24, Bolt, Nut's, and Washer

2шт.

17

A167901

RIM

- rear wheel, W11 x 28 inch (Replaces rims K921200 and K302519)

1шт.

18

A9406

STOP

BRACKET - stop, wheel rim (Replaces bracket K917337)

2шт.

19

K200142

SCREW,Hex, 9/16" x 2 1/8"

- hex, stop bracket

2шт.

20

A167900

DISC

CENTER - rear wheel (Replaces center K917517)

1шт.

21

K917340

SUPPORT

BODY - rear rim

4шт.

22

K200128

PIN

- eccentric

4шт.

K917341

RING

- snap, eccentric

4шт.

23

K917432

BLOCK - rear rim, no longer available

4шт.

24

K601323

BOLT

- coach, 5/8 NC x 1-5/8 inch, no longer available, order bolt K304694 and nut 829-1416 below

8шт.

K304694

CARRIAGE BOLT

- carrage, M16

8шт.

829-1416

NUT,M16, Cl 10

8шт.

A161560

WASHER,19.84mm ID x 31.7mm OD x 4.6mm Thk

- lock, 3/4 inch

8шт.

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

(Replaces nut K607035) 3/4"-10, G5, Hvy

8шт.

K301042

WHEEL

CENTER ASSEMBLY - rear rim, W9 x 28 inch, fits 11.2/10-28 or 12.4/11-28 tires, used with 885N tractors, no longer available (Replaces center assembly K947925), Includes: Ref. 25 - 27, Washer, and Nut

2шт.

At first change, order new wheel K262521. After first change, individual parts can be ordered.

1шт.

25

K301003

WHEEL

CENTER - rear wheel, no longer available (Replaces center K905284)

1шт.

At first change, order new wheel K262521 (W9 x 28) to fit 11.2/10-28 and 12.4/11-28 tires or wheel K262524 (11 x 28) to fit 13.6 x 12-28 and 14.9 x 13-28 tires.

1шт.

26

K301042

WHEEL

RIM - rear wheel, W9 x 28 inch (Replaces rim K67624)

1шт.

27

K611270

WHEEL BOLT,5/8" - 18 x 2.91", Gr 5

BOLT - rim, 5/8 NF x 2-7/8 inch

16шт.

K19475

WASHER

- flat, 5/8 inch

16шт.

425-1110

NUT,5/8"-18, G5

(Replaces nut K617006) 5/8"-18, G5

16шт.

28

K929124

BUSHING

SPACER - 1/2 inch, rear wheels with 12.4/11-28 tires, used with 885N tractors, no longer available

2шт.

29

K617170

NUT

- wheel, special, 5/8 inch NF, used with 885N tractors

16шт.

K947919

RIM

CENTER ASSEMBLY - rear rim, W8 x 24 inch, fits 9.5/9-24 tires, used with 885N tractors, no longer available, Includes: Ref. 29 - 32, Washer, and Nut

2шт.

30

K301038

WHEEL

CENTER - rear wheel, no longer available

1шт.

Order wheel K262518. If this part is for a W8 x 24 front four-wheel drive tractor, order two K262518 wheels.

1шт.

31

K301045

RIM

- rear wheel, W12 x 24 inch, no longer available

1шт.

32

K611270

WHEEL BOLT,5/8" - 18 x 2.91", Gr 5

BOLT - rim, 5/8 NF x 2-7/8 inch

16шт.

K19475

WASHER

- flat, 5/8 inch

16шт.

425-1110

NUT,5/8"-18, G5

(Replaces nut K617006) 5/8"-18, G5

16шт.

Выбрано товаров: 64
