Запчасти Case IH 885N (9-10) - MAIN FRAME AND COVERS (09) - CHASSIS/ATTACHMENTS

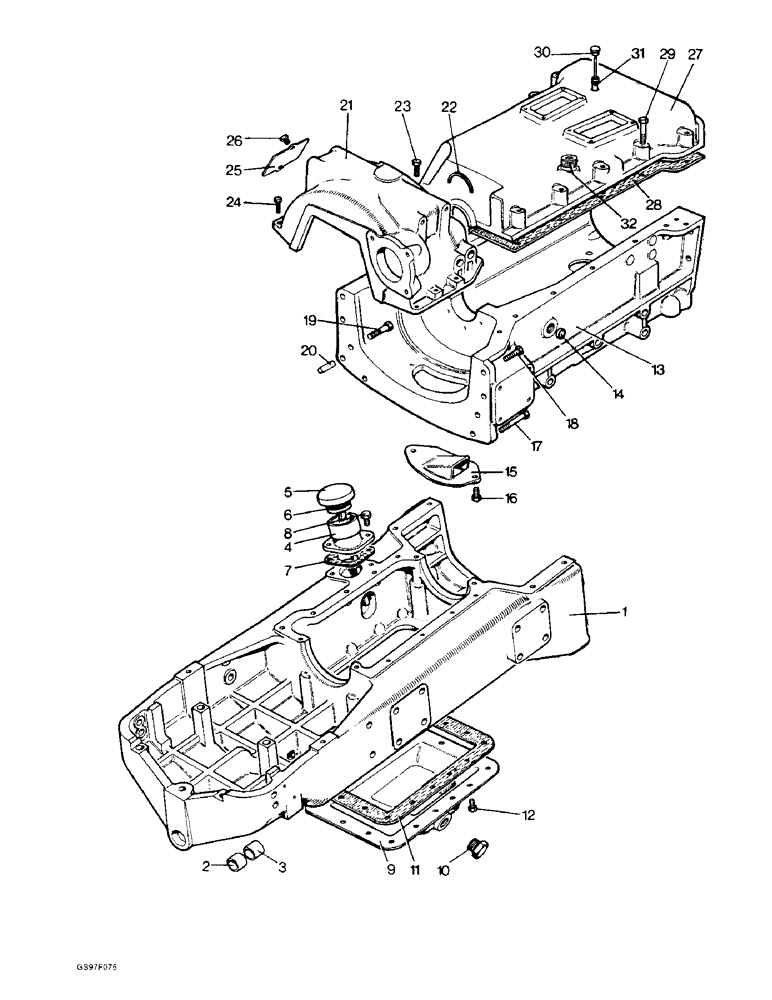

Схема запчастей Case IH 885N - (9-10) - MAIN FRAME AND COVERS (09) - CHASSIS/ATTACHMENTS
8
16
22
7
27
10
32
25
12
9
23
13
17
30
26
2
19
15
18
24
29
21
3
5
14
28
4
31
1
6
20
11

Артикул

Название

Примечание

Количество

1

K942478

FRAME

- main, front with front mounted pump, no longer available (Replaces frame K945574)

1шт.

2

K621427

BUSHING

- front, trunnion pin bearings

1шт.

3

K262791

BUSHING

- rear, trunnion pin bearings (Replaces bushing K621301)

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper (Replaces fitting K13176) 1/4"-28 NPT x .54" lg

1шт.

4

K902042

FILLER

- oil, no longer available

1шт.

5

K912773

DIPSTICK

CAP - filler, with dipstick

1шт.

6

238-5220

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

(Replaces O-ring K15279) -220, 70 Duro, 1.359" ID x .139" Thk

1шт.

7

K902043

SEAL

- main frame

1шт.

8

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

(Replaces bolt K602905) Hex, 3/8"-16 x 1 1/8", G5, Full Thd

2шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer K19482) 3/8"

2шт.

9

K907339

COVER

SUMP - engine lubrication, no longer available

1шт.

10

K623849

PLUG

- flanged, 1/2 inch BSP, drain (Replaces plug K623825)

1шт.

K626317

WASHER

- flat, aluminum, 27/32 inch (Replaces washer K626793)

1шт.

11

K262733

GASKET

- main frame (Replaces gasket K907585)

1шт.

12

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (Replaces bolt K602803)

16шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer K19481) 5/16"

16шт.

13

K951228

FRAME

- main, rear, used with 885Q, 885QH, 885Sk and 885LP tractors, no longer available

1шт.

13

K929250

FRAME

- main, rear, used with 885, 885N and 885H tractors, no longer available

1шт.

13

K940352

FRAME

- main, rear, used with 885G tractors, no longer available

1шт.

14

K951336

GAUGE

- sight, transmission oil, used with 885Q, 885QH, 885Sk and 885LP tractors, no longer available

1шт.

353-11

PLUG,Cap, .610" OD

- tapered, 5/8 inch OD

32шт.

15

K947404

COVER

- clutch pit

1шт.

16

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch (Replaces bolt K602733)

2шт.

K626662

WASHER

- flat, 1/4 inch (Replaces washer K19470)

2шт.

17

113-330

BOLT,Hex, 7/16" - 14 x 3-3/4", Gr 5

- hex, 7/16 NC x 3-3/4 inch, front frame to rear main frame, no longer used (Replaces bolt K600617)

4шт.

18

413-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

- hex, 7/16 NC x 1-1/4 inch, front frame to rear main frame (Replaces bolt K603005)

2шт.

19

13-734

BOLT,Hex, 7/16" - 14 x 2-1/8", Gr 5

- hex, 7/16 NC x 2-1/8 inch, front frame to rear main frame (Replaces bolt K600607)

4шт.

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC, Front frame to rear main frame (Replaces nuts K607003 and B90348)

4шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, , Front frame to rear main frame (Replaces washer K19483) 7/16"

10шт.

20

K900105

PIN

- dowel, 5/8 x 1-5/8 inch (Replaces pin K621852)

2шт.

21

K951000

CLUTCH

HOUSING - clutch, with sealing strip, used with 885Q, 885QH, 885Sk and 885LP tractors, also order strip K929966 below (Replaces housing K951033)

1шт.

21

K942278

CLUTCH

HOUSING - clutch, with sealing strip, used with 885, 885N, 885H and 885G tractors, no longer available

1шт.

22

K929668

STRIP

- sealing, clutch housing, 18 inch (457 mm) long, cut from bulk foam K953479 below

1шт.

K953350

COVER

PLATE - cover, clutch housing, used with 885Q, 885QH, 885Sk and 885LP tractors, no longer available

1шт.

353-3

PLUG,Cap, .302" OD

- plastic, 3/8 inch, timing apertures (Replaces plug K628087)

2шт.

K953479

TAPE

FOAM - bulk, 50 foot (15240 mm) long

1шт.

23

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, clutch housing to main frame (Replaces bolt K602904)

1шт.

24

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch, clutch housing to main frame (Replaces bolt K600404)

4шт.

413-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5

- hex, 3/8 NC x 4-1/4 inch, clutch housing to main frame, used with 885, 885N, 885H and 885G tractors (Replaces bolt K600421)

2шт.

492-11038

LOCK WASHER,3/8"

clutch housing to main frame (Replaces washer K19482) 3/8"

7шт.

25

K89387

COVER

PLATE - inspection, clutch compartment, used with 885, 885N, 885H and 885G tractors

1шт.

26

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch, used with 885, 885N, 885H and 885G tractors (Replaces bolt K602734)

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch, used with 885, 885N and 885G tractors (Replaces bolt K602735)

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Used with 885, 885N, 885H and 885G tractors (Replaces bolt K19480) 1/4"

2шт.

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 45 degree, 1/4-28 taper x 17/32 inch, used with 885, 885N, 885H and 885G tractors (Replaces fitting K690973)

2шт.

27

K949906

COVER

- gearbox, used with 885Q, 885QH and 885Sk tractors, no longer available

1шт.

27

K945687

COVER

- gearbox, used with 885LP, 885, 885N, 885H and 885G tractors, no longer available

1шт.

28

K929663

GASKET,0.2mm Thk

- gearbox cover to main frame (Replaces gasket K200024)

2шт.

29

413-752

BOLT,Hex, 7/16" - 14 x 3-1/4", Gr 5

- hex, 7/16 NC x 3-1/4 inch, gearbox cover to main frame, used with 885Q, 885QH and 885Sk tractors (Replaces bolt K600615)

9шт.

29

413-752

BOLT,Hex, 7/16" - 14 x 3-1/4", Gr 5

- hex, 7/16 NC x 3-1/4 inch, gearbox cover to main frame, used with 885LP, 885, 885N, 885H and 885G tractors (Replaces bolt K600615)

10шт.

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

Gearbox cover to main frame (Replaces bolt K600604) Hex, 7/16"-14 x 1 3/4", G5

1шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, , Gearbox cover to main frame (Replaces washer K19483) 7/16"

10шт.

30

K956099

DIPSTICK

- transmission oil, used with 885, 885N, 885H and 885G tractors (Replaces dipstick K947615)

1шт.

31

K942348

SLEEVE

- dipstick, used with 885, 885N, 885H and 885G tractors

1шт.

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk, Used with 885, 885N, 885H and 885G tractors (Replaces O-ring K24701)

1шт.

32

K12362

PLUG

- taper, 1 inch BSP, oil filler, used with 885, 885N, 885H and 885G tractors

1шт.

32

K628102

PLUG

- dipstick hole, used with 885LP tractors

1шт.

Выбрано товаров: 57
