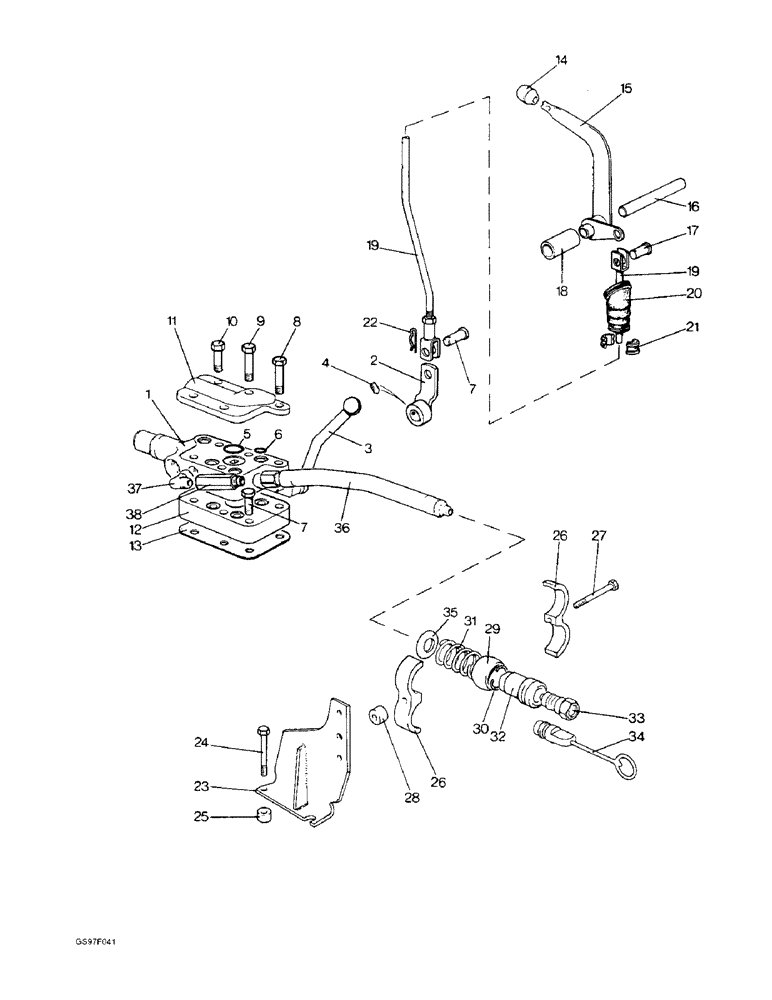

Запчасти Case IH 885N (8-44) - SINGLE LIVE TAKE OFF VALVE UNITS (08) - HYDRAULICS

K931848

SPARE PART

UNIT - single live take off valve, used with 885Q, 885QH and 885Sk tractors, no longer available

1шт.

K931850

SPARE PART

CONTROL - hand, single valve, used with 885Q, 885QH and 885Sk tractors, no longer available

1шт.

K918959

UNIT - single live take off valve, used with 885, 885H and 885G tractors, no longer available, order K918957

1шт.

K140000

KIT - pipes and couplings, single valve, no longer available (Replaces pipe K930230)

1шт.

1

K956421

VALVE

- take off (Replaces valve assembly K943825)

1шт.

2

K950851

LEVER

- cranked, used with 885Q, 885QH and 885Sk tractors

1шт.

3

K946382

LEVER

- hand, cranked, used with 885, 885H and 885G tractors

1шт.

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

(No. 404), Used with 885Q, 885QH and 885Sk tractors with S/N 11010300 and after (Replaces key K19602) #3, 1/8" x 1/2"

1шт.

126-6

WOODRUFF KEY,# 213, 1/8" x 3/8"

(No. 403) (Replaces key K622382) # 213, 1/8" x 3/8"

1шт.

4

83-1316

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

SCREW - set, hex socket, 5/16 NC x 3/8 inch, cup point (Replaces screw K606322)

1шт.

5

K623588

O-RING,2.69mm Thk x 29.97mm ID, 75 Duro

- 1-3/16 inch ID

1шт.

6

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

(Replaces O-ring K24852) -115, 90 Duro, .674" ID x .103" Thk

5шт.

7

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

(Replaces bolt K600510) Hex, 3/8"-16 x 2", G5

1шт.

8

K600511

BOLT

- hex, 3/8 NC x 4-1/4 inch

2шт.

9

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

- hex, 3/8 NC x 4-1/2 inch (Replaces bolt K600512)

1шт.

10

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

(Replaces bolt K600515) Hex, 3/8"-16 x 2 3/4", G5

2шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer K19482) 3/8"

6шт.

11

K919242

COVER

- valve

1шт.

12

K950386

BASE

PLATE - valve (Replaces baseplate K962085)

1шт.

13

K917387

GASKET

- baseplate to axle housing

1шт.

14

K950493

KNOB

- hand lever, used with 885Q, 885QH and 885Sk tractors

1шт.

15

K200315

LEVER

- hand, used with 885Q, 885QH and 885Sk tractors with serial number 11013296 and after, no longer available

1шт.

15

K950762

LEVER

- hand, used with 885Q, 885QH and 885Sk tractors with serial numbers prior to 11013296, no longer available

1шт.

K614021

SET SCREW,#10 - 32 x 1/2"

- hex, No. 10 NF x 1/2 inch

2шт.

16

K950863

SHAFT

- hand lever, used with 885Q, 885QH and 885Sk tractors

1шт.

17

K950866

LARGE PIN

PIN - clevis, used with 885Q, 885QH and 885Sk tractors

2шт.

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), , Used with 885Q, 885QH and 885Sk tractors (Replaces pin K623605) 1/16" x 1/2"

1шт.

18

K950898

BUSHING

SPACER - hand lever, used with 885Q, 885QH and 885Sk tractors

1шт.

19

K965207

ROD

- connecting, adjustable, used with 885Q, 885QH and 885Sk tractors, no longer available

1шт.

20

K950691

SEAL

GAITER - connecting rod, used with 885Q, 885QH and 885Sk tractors

1шт.

21

K950861

BUSHING

- split, halves, used with 885Q, 885QH and 885Sk tractors, no longer available

2шт.

22

K950865

CLIP

- retaining, used with 885Q, 885QH and 885Sk tractors

1шт.

23

K940752

MOUNTING PARTS

BRACKET - support

1шт.

24

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch (Replaces bolt K600896)

2шт.

25

K627074

BUSHING

SPACER - distance, no longer available

1шт.

26

K924286

MOUNTING PARTS

FRAME - mounting

2шт.

27

413-748

BOLT,Hex, 7/16" - 14 x 3", Gr 5

- hex, 7/16 NC x 3 inch (Replaces bolt K600703)

1шт.

28

K627056

BUSHING

SPACER - distance, no longer available

1шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, (Replaces washer K626344) 7/16"

1шт.

K626686

WASHER

- flat, 7/16 inch (Replaces washer K19474)

1шт.

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC (Replaces nuts K607046 and B90348)

1шт.

29

K924284

RING

- gimbal

2шт.

30

K924285

RING

- retaining

2шт.

31

K625249

SPRING

- coupling

2шт.

K921216

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - quick-release, Aeroquip B5600/8/10, no longer available, order couplings K200643 and K200646 and plug K921217, Ref. 32 - 34

2шт.

32

K929247

BREAKER POINTS

COUPLING - tractor half, no longer available, order coupling K200643 and dust cover K921217

2шт.

32

K200643

COUPLING, BREAK AWAY

COUPLING - quick release, tractor half (Replaces coupling K929247)

1шт.

33

K200646

COUPLING, BREAK AWAY

COUPLING - quick release, hose half (Replaces coupling K921982)

2шт.

34

K921217

PLUG

- rubber, tractor coupling

2шт.

K965185

COVER

- dust, hose coupling, used with 885Q, 885QH and 885Sk tractors, no longer available

2шт.

35

K626794

WASHER

- special

2шт.

36

K924710

HOSE

PIPE - flexible, 1/2 BSP x 3/4 NF x 16-1/4 inch

2шт.

37

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adjustable O-ring boss (Replaces elbow K622114), Includes: O-ring

2шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

38

K945364

PIPE

CONNECTOR - elbow, 3/4 inch NF, no longer available

1шт.
