Запчасти Case IH 885N (8-34) - THREE-WAY TAKE OFF VALVE UNITS (08) - HYDRAULICS

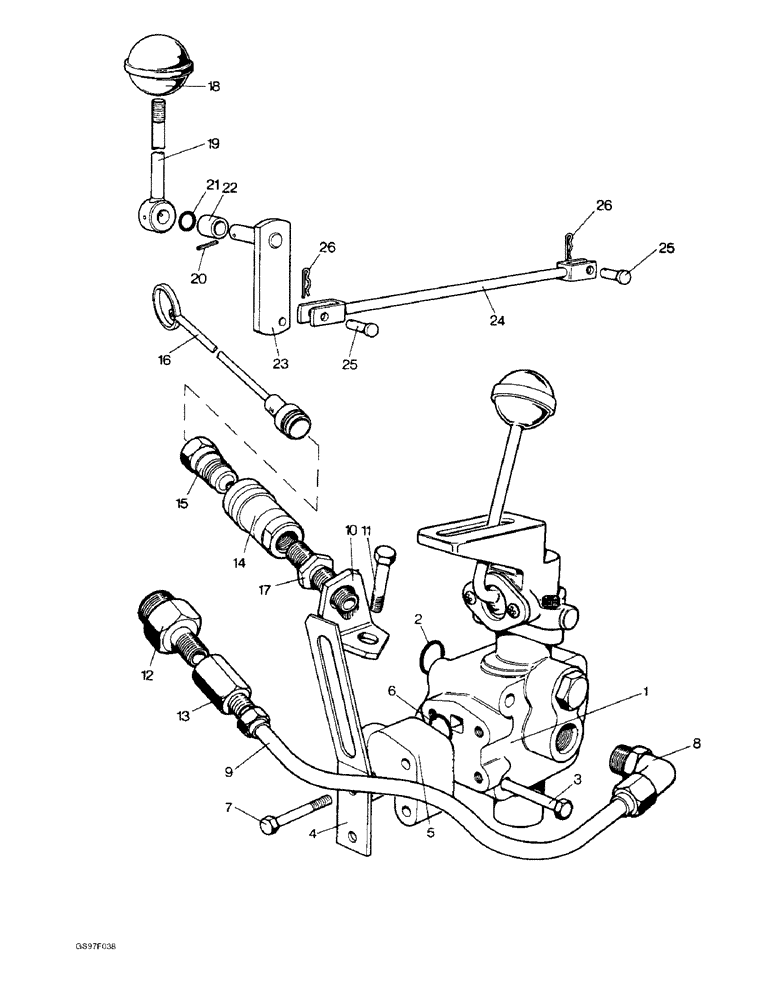

Схема запчастей Case IH 885N - (8-34) - THREE-WAY TAKE OFF VALVE UNITS (08) - HYDRAULICS
16
22
8
21
10
26
13
20
25
15
18
3
12
9
14
19
7
4
2
26
11
24
17
5
6
25
23
1

Артикул

Название

Примечание

Количество

K931855

KIT

- three-way valve, quick-release coupling, used with 885Q, 885QH, 885Sk and 885LP tractors, no longer available

1шт.

K932109

KIT

- three-way valve, Exactor coupling, used with 885Q, 885QH, 885Sk and 885LP tractors, no longer available

1шт.

K123000

KIT

- three-way valve, Exactor coupling, used with 885, 885H and 885G tractors (Replaces kit K922498)

1шт.

K922497

VALVE

KIT - three-way valve, quick-release coupling, used with 885, 885H & 885G tractors, no longer available, order adapter K919614, O-ring 238-6115, bolt 413-532, washer 492-11031, elbow 218-5106, pipe K921215, bracket K921160 & washer K626686, Ref. 5 - 11;

1шт.

K918360

VALVE

KIT - three-way valve, without pipe, used w/ 885, 885H & 885G tractors, no longer available, order valve K919845, Ref. 1A, plug K948415, Ref. 2A, valve assy K948000, Ref. 1, O-ring 238-5210, Ref. 2, bolt 413-648, Ref. 3, washer 492-11038 & O-ring 237-6008

1шт.

K153000

VALVE

KIT - three-way valve, Exactor coupling, used with 885N tractors (Replaces unit K930666)

1шт.

K153100

KIT - three-way valve, quick-release coupling, used with 885N tractors (Replaces unit K930667)

1шт.

1

K951162

SELECTOR

VALVE ASSEMBLY - used with 885Q, 885QH, 885Sk and 885LP tractors, parts list Fig. 8-38, no longer available

1шт.

1

K948000

SELECTOR

VALVE ASSEMBLY - 885, 885H and 885G tractors, parts list Fig. 8-38

1шт.

1

K940067

CONTROL VALVE

VALVE ASSEMBLY - used with 885N tractors, parts list Fig. 8-38

1шт.

1a

K919845

PRODUCT GRAPHIC

VALVE - three-way selector, transfer, not shown

1шт.

2

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

Valve, 1 used with 885Q, 885QH, 885Sk and 885LP tractors; two used with 885, 885H, 885G and 885N tractors (Replaces O-ring K24556) -210, 70 Duro, .734" ID x .139" Thk

1шт.

2a

K948415

PLUG

- hex, special, 3/4 inch NF, not shown

1шт.

3

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

(Replaces bolt K600416) Hex, 3/8"-16 x 3", G5

4шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer K19482) 3/8"

4шт.

4

K929861

PLATE

GATE - adapter, used with 885N tractors, no longer available

1шт.

5

K919614

ADAPTER

- valve

1шт.

6

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

(Replaces O-ring K24852) -115, 90 Duro, .674" ID x .103" Thk

1шт.

7

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

(Replaces bolt K600209) Hex, 5/16"-18 x 2", G5

3шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer K19481) 5/16"

3шт.

8

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flange x adjustable O-ring boss (Replaces elbow K622114), Includes: O-ring

1шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk (Replaces O-ring K623591)

1шт.

K617585

LOCK NUT

NUT - lock, 3/4 inch NF, no longer available

1шт.

K626734

WASHER

- flat, 3/4 inch, no longer available

1шт.

9

K921215

PIPE

- valve to coupling, used with 885Q, 885QH, 885Sk, 885LP, 885, 885H and 885G tractors

1шт.

9

K943972

PIPE

- valve to coupling, used with 885N tractors, no longer available

1шт.

10

K921160

BRACKET

- valve, used with 885Q, 885QH, 885Sk, 885LP, 885, 885H and 885G tractors

1шт.

10

K943973

BRACKET

- valve, used with 885N tractors

1шт.

11

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch, used with 885Q, 885QH, 885Sk, 885LP, 885, 885H and 885G tractors (Replaces bolt K600816)

2шт.

K626686

WASHER

- flat, 1/2 inch, used with 885Q, 885QH, 885Sk, 885LP, 885, 885H and 885G tractors

2шт.

12

K921964

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - Exactor, tractor half, no longer available, Includes: Cover

1шт.

K960657

BREAKER POINTS

COVER - dust

1шт.

12

K200680

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - Exactor, tractor half, used with 885, 885H, 885G and 885N tractors with serial number 1103647 and after, no longer available, order coupling assembly K921964 above and cover K200681, Includes: Cover

1шт.

K200681

COVER

- dust

1шт.

13

K952245

ADAPTER

- 1/2 inch BSP, pipe to Exactor coupling, no longer available

1шт.

K921216

COUPLING, BREAK AWAY

COUPLING ASSY - quick-release, complete, used w/885Q, 885QH, 885Sk, 885, 885H, 885G & 885N trac(s) with S/N prior to 1103647, no longer available, order coupling K200643, Ref. 14, coupling K200646, Ref. 15 & dust cover K921217, Ref 16, Includes: Ref 14-16

1шт.

14

K200644

BREAKER POINTS

COUPLING - quick-release, tractor half, tractor serial number 1103647 and after, no longer available, order coupling K200643 and dust cover K921217

1шт.

14

K929247

BREAKER POINTS

COUPLING - quick-release, tractor half, used with 885Q, 885QH, 885Sk, 885, 885H, 885G and 885N tractors with serial numbers prior to 1103647, no longer available, order coupling K200643 and dust cover K921217

1шт.

14

K200643

COUPLING, BREAK AWAY

COUPLING - quick-release, Aeroquip, 1/2 inch BSP, tractor half (Replaces coupling K929247)

1шт.

15

K200646

COUPLING, BREAK AWAY

COUPLING - quick-release, hose half, used with 885Q, 885QH, 885Sk, 885, 885H, 885G and 885N tractors with serial numbers prior to 1103647 (Replaces coupling K921982)

1шт.

16

K200645

CAP

COVER - dust, quick-release coupling, tractor serial number 1103647 and after

1шт.

16

K921217

PLUG

COVER - dust, quick-release coupling, tractor serial numbers, Serial Range: prior-1103647

1шт.

K626783

WASHER

- sealing, 7/8 inch

1шт.

K19647

NUT

- lock, 1/2 inch BSP

1шт.

17

K921178

ADAPTER

- pipe to quick-release coupling, 1/2 inch BSP

1шт.

18

K950493

KNOB

- hand lever, used with 885Q, 885QH, 885Sk and 885LP tractors

1шт.

19

K950341

CIRCLIP

LEVER - hand, used with 885Q, 885QH and 885Sk tractors (Replaces lever K950410)

1шт.

19

K201848

HANDLE

LEVER - hand, used with 885LP tractors, no longer available

1шт.

20

38-31016

PIN,5/32" x 1", Coiled

Used with 885Q, 885QH, 885Sk and 885LP tractors (Replaces pin K623940) 5/32" x 1", Coiled

1шт.

K201879

PIN

- connecting, used with 885LP tractors, no longer available

1шт.

21

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Used with 885Q, 885QH, 885Sk and 885LP tractors (Replaces O-ring K623687) -014, 90 Duro, .489" ID x .070" Thk

2шт.

22

K621340

BUSHING

- valve, used with 885Q, 885QH, 885Sk and 885LP tractors

1шт.

23

K950408

SPINDLE

LEVER - with shaft, used with 885Q, 885QH and 885Sk tractors, no longer available

1шт.

23

K201257

SPINDLE

LEVER - with shaft, used with 885LP tractors, no longer available

1шт.

24

K950409

ROD

- connecting, used with 885Q, 885QH and 885Sk tractors, no longer available

1шт.

24

K202489

ROD

- connecting, used with 885LP tractors, no longer available

1шт.

25

K950866

LARGE PIN

PIN - clevis, used with 885Q, 885QH, 885Sk and 885LP tractors

2шт.

26

K950865

CLIP

- spring, used with 885Q, 885QH, 885Sk and 885LP tractors

2шт.

K918520

NO LONGER SERVICED

COUPLING ASSEMBLY - universal, no longer available as an assembly, order components, Includes: Coupling's, Washer, and Spacer

1шт.

K200646

COUPLING, BREAK AWAY

COUPLING - quick-release, hose half (Replaces hose K921982)

1шт.

K15143

WASHER

- flat, 7/8 inch (Replaces washer K15737)

2шт.

K627134

SPACER

- distance

1шт.

K921964

COUPLING, BREAK AWAY

COUPLING - Exactor, tractor half, no longer available

1шт.

K918521

COUPLING

ASSEMBLY - universal, no longer available as an assembly, order components, Includes: Coupling's, Washer, and Spacer

1шт.

K921982

BREAKER POINTS

COUPLING - quick-release, hose half, no longer available, order coupling K200646 above

1шт.

K15143

WASHER

- flat, 7/8 inch (Replaces washer K15737)

2шт.

K627134

SPACER

- distance

1шт.

K921984

COUPLING, BREAK AWAY

COUPLING - Dowty, tractor half, no longer available

1шт.

Выбрано товаров: 68
