Запчасти Case IH 885N (8-26) - THREE-POINT LINKAGE, DUAL CATAGORY (08) - HYDRAULICS

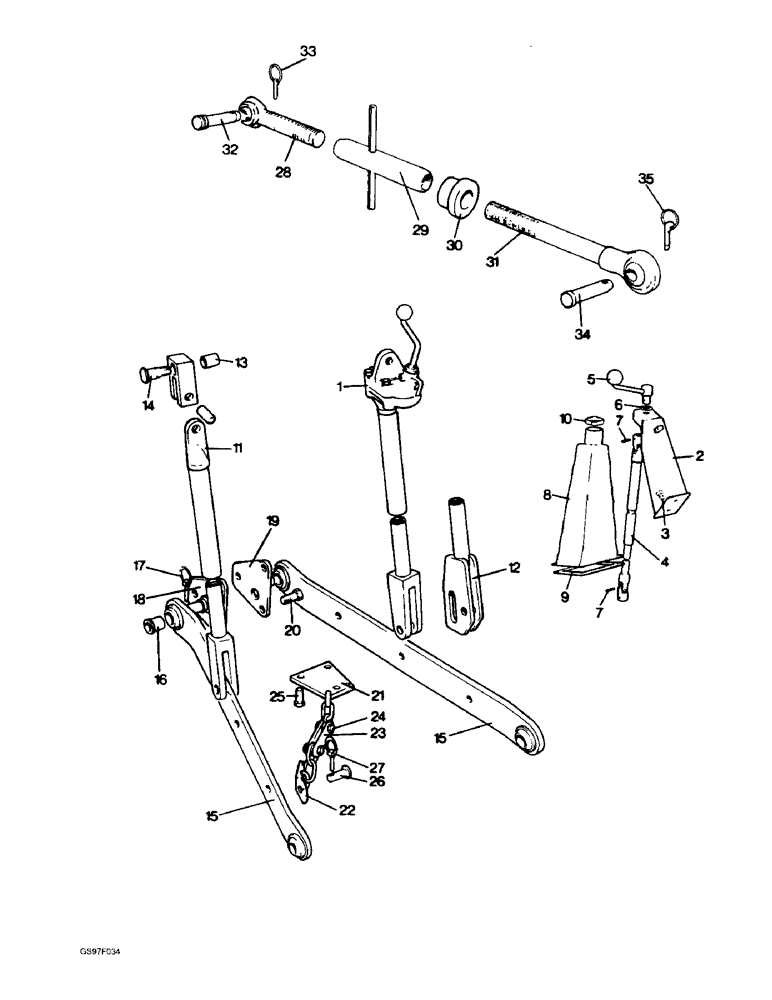

Схема запчастей Case IH 885N - (8-26) - THREE-POINT LINKAGE, DUAL CATAGORY (08) - HYDRAULICS
7
24
22
9
27
32
34
20
25
5
21
28
14
30
12
6
2
33
7
35
4
18
16
8
1
19
23
3
11
29
15
15
31
26
17
10
13

Артикул

Название

Примечание

Количество

1

K955542

LEVER

ASSEMBLY - levelling, complete, used with 885Q and 885QH tractors with serial number 11010300 and after, parts list Fig. 8-30

1шт.

1

K940508

LEVER

ASSEMBLY - levelling, complete, used with 885, 885H, 885G, 885Q and 885QH tractors with serial numbers prior to 11010300, parts list Fig. 8-30

1шт.

1

K955542

LEVER

ASSEMBLY - levelling, complete, used with 885Sk tractors, parts list Fig. 8-30

1шт.

2

K955279

BRACKET

- levelling lever adjuster, used with 885Q and 885QH tractors with serial number 11010300 and after, no longer available

1шт.

3

K602846

SCREW,5/16" - 18 x 5/8", Gr S

- hex, 5/16 NC x 5/8 inch, used with 885Q and 885QH tractors with serial number 11010300 and after

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , used with 885Q and 885QH tractors with serial number 11010300 and after (Replaces washer K19481) 5/16"

2шт.

4

K956386

LINK

SPINDLE - telescopic, used with 885Q and 885QH tractors with serial number 11010300 and after, no longer available

1шт.

5

K956382

BALL

HANDLE - used with 885Q and 885QH tractors with serial number 11010300 and after, no longer available

1шт.

6

K956383

WASHER

- thrust, used with 885Q and 885QH tractors with serial number 11010300 and after, no longer available

2шт.

7

K956384

PIN

- spring, 5 x 25 mm, used with 885Q and 885QH tractors with serial number 11010300 and after, no longer available

2шт.

8

K626910

WASHER

SHIM - used with 885Q and 885QH tractors with serial number 11010300 and after (Replaces shim K921778)

1шт.

9

K956013

COVER

- used with 885Q and 885QH tractors with serial number 11010300 and after, no longer available

1шт.

10

K956020

CLAMP

PLATE - clamp, cover to cab floor, used with 885Q and 885QH tractors with serial number 11010300 and after, no longer available

1шт.

K19660

RIVET

- 1/8 x 3/8 inch, cover to cab floor, used with 885Q and 885QH tractors with serial number 11010300 and after, no longer available

4шт.

K626309

WASHER

- flat, cover to cab floor, used with 885Q and 885QH tractors with serial number 11010300 and after, no longer available

4шт.

11

K621992

CLIP

- used with 885Q and 885QH tractors with serial number 11010300 and after, no longer available

1шт.

12

K940505

ROD

ASSEMBLY - lift, complete, parts list Fig. 8-30

1шт.

13

K945967

CLEVIS

NUT - adjusting, slotted

2шт.

K19476

WASHER

- flat, 3/4 inch

2шт.

14

K901963

BUSHING

-, Serial Range: linkage-ramshaft

2шт.

15

413-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 5

- hex, 3/4 NC x 3-3/4 inch, linkage to ramshaft

2шт.

K19476

WASHER

- flat, 3/4 inch, Serial Range: linkage-ramshaft

2шт.

K607446

NUT

- Cleveloc, 3/4 inch NC, Serial Range: linkage-ramshaft

2шт.

K943631

LINK

- lower, 30-1/2 inch

2шт.

16

K922071

BUSHING

- lower link pin

2шт.

17

A33509

PIN,11.18mm OD

- linch, with ring (Replaces pin K920359)

4шт.

18

K943627

BRACKET

- hitch, left-hand

1шт.

19

K943628

HITCH ASSY

BRACKET - hitch, right-hand

1шт.

20

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

Brackets to PTO housing Hex, 1/2"-13 x 1 1/2", G5, Full Thd

6шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Brackets to PTO housing (Replaces washer K19484) 1/2"

6шт.

21

K946476

CHAIN (AG)

CHAIN ASSEMBLY - check, Includes: Ref. 22 - 24 and Nut

1шт.

22

K946475

CHAIN (AG)

CHAIN - check, rear half, no longer available

2шт.

23

K943855

PLATE

- chain

4шт.

24

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch (Replaces bolt K602906)

4шт.

K607460

NUT

- Cleveloc, 3/8 inch NC, no longer available

4шт.

25

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Chain to PTO housing (Replaces bolt K602905) Hex, 3/8"-16 x 1 1/8", G5, Full Thd

3шт.

492-11038

LOCK WASHER,3/8"

chain to PTO housing (Replaces washer K19482) 3/8"

3шт.

26

K946108

HEADED PIN

PIN - check chain

2шт.

27

3053363R91

LINCH PIN,32mm OD

PIN - linch, with ring (Replaces pin K915678)

2шт.

K942056

LINK

ASSEMBLY - top, Includes: Ref. 28 - 31

1шт.

28

K920796

SCREW

- with housing, 7-7/8 inch, tractor end

1шт.

29

K920800

TURNBUCKLE

- 1 inch NC

1шт.

K19448

LOCK NUT

- lock, 1 inch NC

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper (Replaces fitting K13176) 1/4"-28 NPT x .54" lg

1шт.

30

K95515

COLLAR - link stowage, used with 885Sk tractors with serial number 11010300 and after, no longer available

1шт.

31

K942057

SCREW

- with housing, 9 inch

1шт.

32

K912936

PIN

- link, sensing unit

1шт.

33

K210316

LINCH PIN

PIN - linch, with ring (Replaces pin K66408)

1шт.

34

K65690

HITCH PIN

PIN - link

1шт.

34

K903981

HITCH PIN

PIN - link

1шт.

35

A33509

PIN,11.18mm OD

- linch, with ring (Replaces pin K920359)

1шт.

Выбрано товаров: 51
