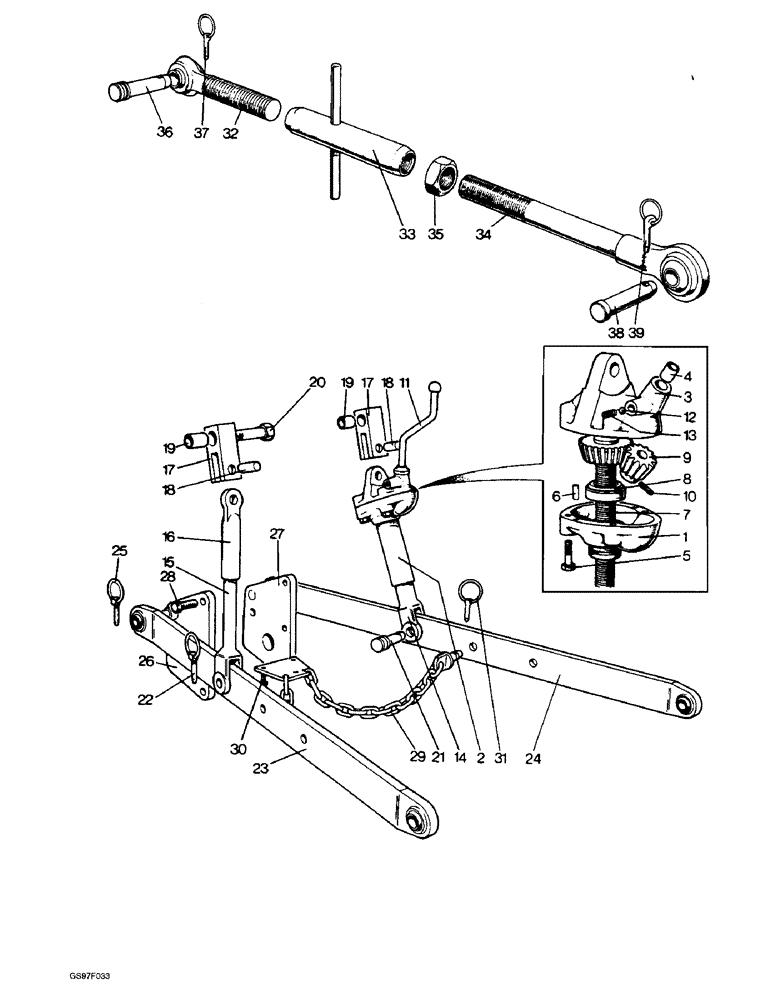

Запчасти Case IH 885N (8-24) - THREE-POINT LINKAGE, 885 AND 885G TRACTORS (08) - HYDRAULICS

K940515

LEVER

ASSEMBLY - levelling, complete, no longer available as an assembly, order components along with Ref. 17 - 19 and grease fitting 219-8, Includes: Ref. 1 - 14

1шт.

1

K913166

GEAR

HOUSING - gear

1шт.

2

K913165

TUBE

- gear housing, 1-1/4 x 5 inch, no longer available

1шт.

3

K961754

CAP

- with bushing and dowels

1шт.

4

K621373

BUSHING

- cap

2шт.

5

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, cap to gear housing, 5/16 NC x 1-1/4 inch (Replaces bolt K602807)

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , cap to gear housing (Replaces washer K19481) 5/16"

2шт.

6

K32063

PIN

DOWEL - cap to gear housing, 3/16 x 1/2 inch

1шт.

7

K913224

BEVEL GEAR

SCREW - levelling, 3/4 NC x 7-7/16 inch

1шт.

8

K620181

THRUST BEARING

BEARING - thrust

1шт.

9

K913170

GEAR

PINION - bevel

1шт.

10

38-1811

LOCK PIN,1/8" x 11/16", Slotted

Pin, , replaces pin K623931 1/8" x 11/16", Slotted

1шт.

11

K913171

LEVER

- hand

1шт.

12

211-1007

BALL,7/32" Dia

Chrome alloy steel, grade 48 (Replaces ball K620179) 7/32" Dia

1шт.

13

K625174

SPRING

- lever

1шт.

K622251

FITTING

- grease, 5/16 BSF

1шт.

14

K922761

CLEVIS

NUT - adjusting, 3/4 NC x 7/34 inch

1шт.

K940498

ROD

ASSEMBLY - lift, complete, no longer available as an assembly, order components and grease fitting 19-8 below, Includes: Ref. 15 - 19

1шт.

15

K922765

FORK

SCREW - adjusting

1шт.

16

K914197

EYE

END - eye, adjusting screw

1шт.

17

K921914

FORK

END - fork (Replaces end K901960)

2шт.

18

K901962

PIN

- pivot

2шт.

19

K901963

BUSHING

- rod

2шт.

20

413-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 5

- hex, 3/4 NC x 3-3/4 inch, fork ends to lift (Replaces bolt K601413)

2шт.

K19476

WASHER

- fork ends to lift, 3/4 inch

2шт.

K607446

NUT

- Cleveloc, fork ends to lift, 3/4 inch NC

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper (Replaces fitting K13176) 1/4"-28 NPT x .54" lg

1шт.

21

K903399

HITCH PIN

PIN - link, 5/8 x 2-3/16 inch

2шт.

22

K210316

LINCH PIN

PIN - linch, with ring (Replaces pin K66408)

2шт.

23

K928548

LINK

- lower, 30-1/2 inch, left-hand

1шт.

24

K928549

LINK

- lower, 30-1/2 inch, right-hand

1шт.

25

A33509

PIN,11.18mm OD

- linch, with ring (Replaces pin K920359)

2шт.

26

K940091

BRACKET

- hitch, left-hand

1шт.

27

K940092

BRACKET

- hitch, right-hand

1шт.

28

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

Brackets to PTO housing (Replaces bolt K603108) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

6шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Brackets to PTO housing (Replaces washer K19484) 1/2"

6шт.

29

K942994

CHAIN (AG)

CHAIN - check, no longer available

1шт.

30

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Chains to PTO housing (Replaces bolt K602905) Hex, 3/8"-16 x 1 1/8", G5, Full Thd

3шт.

492-11038

LOCK WASHER,3/8"

", chains to PTO housing (Replaces washer K19482) 3/8"

3шт.

31

K210316

LINCH PIN

PIN - linch, with ring (Replaces pin K66408)

2шт.

K927079

LINK

ASSEMBLY - top, no longer available as an assembly, order components, Includes: Ref. 32 - 35

1шт.

32

K912362

SCREW

- with housing, 7-1/2 inch, tractor end

1шт.

33

K927080

TUBE

TURNBUCKLE - 1 inch NC

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper (Replaces fitting K13176) 1/4"-28 NPT x .54" lg

1шт.

34

K912365

SCREW

- with housing, 7-1/2 inch

1шт.

35

425-1416

JAM NUT,Jam, 1"-8, G5

- hex jam, 1 inch NC (Replaces nut K607059)

1шт.

36

K912936

PIN

- link, sensing unit

1шт.

37

K210316

LINCH PIN

PIN - linch, with ring (Replaces pin K66408)

1шт.

38

K903981

HITCH PIN

PIN - link

1шт.

39

K920935

PIN - link, with ring, no longer available

1шт.
