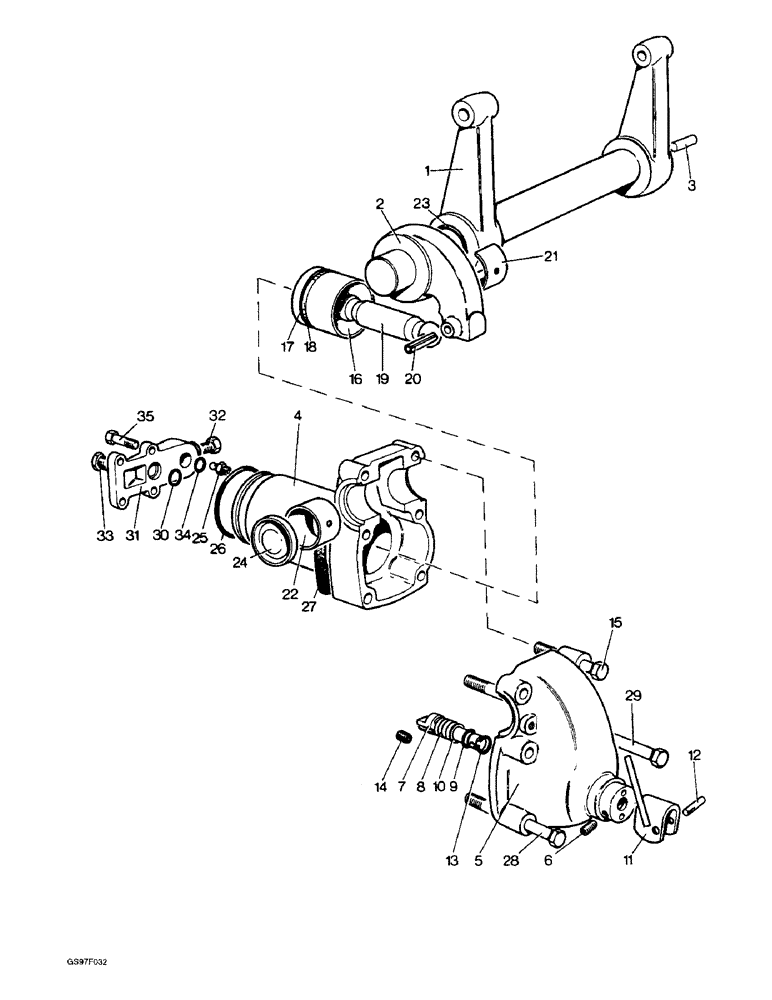

Запчасти Case IH 885N (8-22) - RAMSHAFT AND RAM CYLINDER, 885 NARROW TRACTORS (08) - HYDRAULICS

1

K916802

SHAFT ASSY.

RAMSHAFT ASSEMBLY - with levers, no longer available, Includes: Ref. 2 and 3

1шт.

2

K906796

ARM

LEVER - ram

1шт.

K622381

KEY

- ram

2шт.

3

K621807

PIN

DOWEL - 5/16 x 1/2 inch

1шт.

4

K962997

HOUSING

BODY - cylinder, with cover

1шт.

5

K962996

COVER

ASSEMBLY - with lift lock, no longer available, Includes: Ref. 6 - 13

1шт.

6

K606052

SET SCREW,Hex Skt, 5/16" - 18 x 3/4"

- locating, 5/16 inch NC, no longer available

1шт.

7

K942841

LARGE PIN

PIN - latch, no longer available

1шт.

8

K913436

SPRING

- cover

1шт.

9

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

(Replaces O-ring K24556) -210, 70 Duro, .734" ID x .139" Thk

1шт.

10

K907061

BUSHING

RING - spacer

1шт.

11

K942839

CAM

LEVER - operating, no longer available

1шт.

12

435-5824

GROOVED PIN,1/4" x 1 1/2", Type E

PIN, GROOVED, , Cover (Replaces pin K623726) 1/4" x 1 1/2", Type E

1шт.

13

K11290

RING, SNAP

RING - snap, 3/4 inch OD

2шт.

14

K924685

RUBBER

RESTRICTOR - cylinder body

1шт.

15

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch (Replaces bolt K600816)

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, (Replaces nut K607004) 1/2"-13, G5

2шт.

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, (Replaces washer K11518) Ext-Int Tooth, 1/2"

2шт.

16

K907502

PISTON

- with insert

1шт.

17

238-5335

O-RING,0.21" Thk x 2.725" ID, -335, Cl 5, 75 Duro

- 2-3/4 ID x 3/32 inch wide (Replaces O-ring K623542)

1шт.

18

K628050

RING,69.6mm ID x 79.65mm OD x 2.64mm Thk

- anti-extrusion

1шт.

19

K910106

ROD

- connecting

1шт.

20

138-141

LOCK PIN,1/4" x 1 7/8", Slotted

PIN, (Replaces pin K623920) 1/4" x 1 7/8", Slotted

1шт.

21

K912013

BEARING HALF,50.22mm ID x 54.52mm OD x 30.63mm W

BEARING - halves

2шт.

22

K912012

BUSHING

- cylinder body

1шт.

23

K623538

O-RING,6.99mm Thk x 50.16mm ID, 60 Duro

- internal, 2 inch diameter

1шт.

24

K30061

COVER

DISC - sealing

1шт.

25

K910104

SCREW

- bleed

1шт.

211-1010

BALL,5/16" OD

- chrome alloy steel, 5/16 inch, grade 200 (Replaces ball K11286)

1шт.

26

238-5241

O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro

(Replaces O-ring K623566) -241, 70 Duro, 3.859" ID x .139" Thk

1шт.

27

K926385

GASKET

- cylinder to rear axle housing (Replaces gasket K913768)

1шт.

28

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

- hex, 1/2 NC x 5 inch (Replaces bolt K600822)

2шт.

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, (Replaces washer K11518) Ext-Int Tooth, 1/2"

2шт.

29

326-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 8

(Replaces bolt K601247) Hex, 5/8"-11 x 5", G8

2шт.

K623515

SEAL,16.38mm ID x 25.53mm OD x 3.2mm Thk

WASHER - sealing, 5/8 inch

2шт.

493-41065

LOCK WASHER,Ext Tooth, 5/8"

WASHER - external tooth lock, 5/8 inch (Replaces washer K11516)

2шт.

425-1010

NUT,5/8"-11, G5

(Replaces nut K607006) 5/8"-11, G5

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper (Replaces fitting K13176) 1/4"-28 NPT x .54" lg

2шт.

30

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

(Replaces O-ring K24555) -116, 90 Duro, .737" ID x .103" Thk

1шт.

31

K928448

CONNECTOR, ELEC

CONNECTOR - pipe to cylinder, no longer available

1шт.

32

K619527

PLUG

- 1/2 inch NF

1шт.

K15735

WASHER

- sealing, 1/2 inch

1шт.

33

K19590

PLUG

- 3/8 inch BSP

1шт.

K626780

WASHER

- sealing, 11/16 inch

1шт.

34

238-6114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

(Replaces O-ring K24676) -114, 90 Duro, .612" ID x .103" Thk

1шт.

35

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch, connector to cylinder (Replaces bolt K600404)

4шт.

492-11038

LOCK WASHER,3/8"

connector to cylinder (Replaces washer K19482) 3/8"

4шт.
