Запчасти Case IH 885N (7-22) - TRANSMISSION BRAKE, 885G TRACTORS (07) - BRAKES

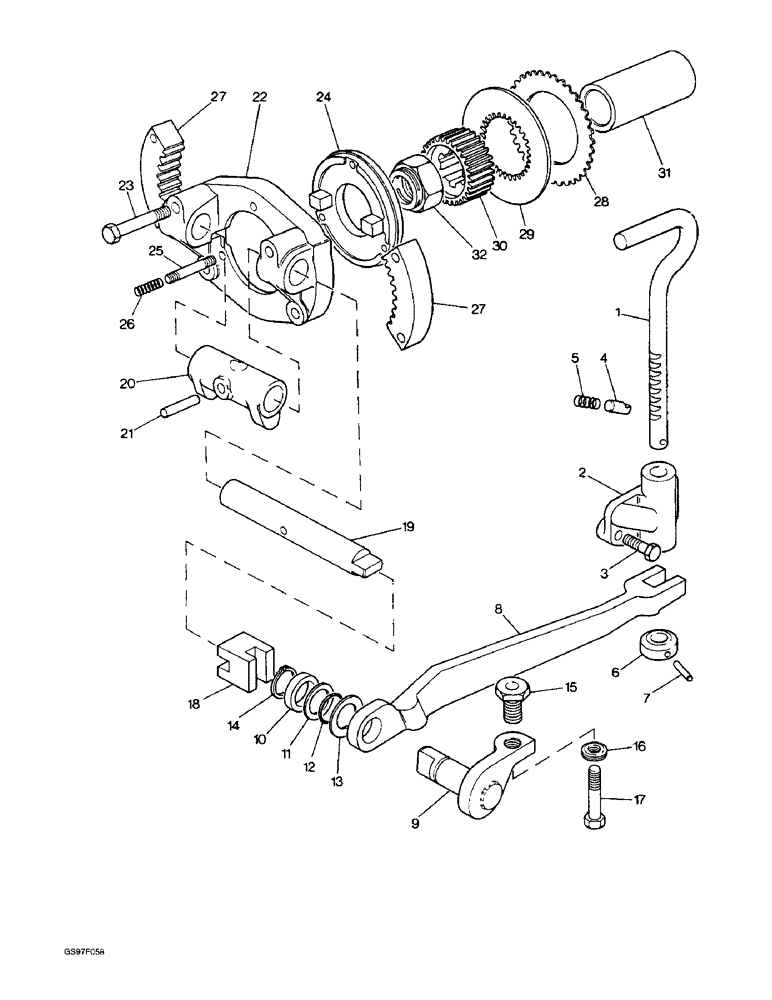

Схема запчастей Case IH 885N - (7-22) - TRANSMISSION BRAKE, 885G TRACTORS (07) - BRAKES
31
20
13
24
23
27
3
19
6
27
12
30
22
26
11
9
4
7
28
21
15
18
16
8
17
32
1
10
2
25
5
29
14

Артикул

Название

Примечание

Количество

1

K912999

LEVER

- hand, transmission brake, no longer available

1шт.

2

K912998

HOUSING

- hand lever, no longer available

1шт.

3

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

- hex, 5/16 NC x 1-1/8 inch, housing to main frame (Replaces bolt K602806)

3шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , housing to main frame (Replaces washer K19481) 5/16"

3шт.

4

K909588

PAWL

- hand lever

1шт.

5

K14651

SPRING

- pawl

1шт.

6

K904201

COLLAR - hand lever, no longer available

1шт.

7

K11267

PIN

- 1/4 x 2-1/4 inch

1шт.

8

K929662

LEVER

- operating, no longer available

1шт.

9

K943974

SHAFT

- operating, no longer available

1шт.

10

K907296

BUSHING

SPACER - distance, no longer available

1шт.

11

K917296

SHIM

- 0.010 inch, no longer available

1шт.

11

K948101

SHIM

- 0.030 inch, no longer available

1шт.

11

K948102

SHIM

- 0.060 inch, no longer available

1шт.

12

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

(Replaces O-ring K16351) -214, 70 Duro, .984" ID x .139" Thk

1шт.

13

K626919

SHIM,.010" Thk

No longer available .010" Thk

1шт.

14

K11128

CIRCLIP

RING - snap, 1 inch OD

1шт.

15

K904361

BUSHING

- adjusting, 5/8 BSF, no longer available

1шт.

K19445

NUT

- lock, 5/8 BSF, no longer available

1шт.

16

K626723

BELLEVILLE WASHER

WASHER - Belleville, 3/8 inch

6шт.

17

413-630

BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5

- hex, 3/8 NC x 2-1/4 inch (Replaces bolt K600563)

1шт.

232-1416

LOCK NUT,3/8"-16, GC

NUT, LOCK, (Replaces nut K607327) 3/8"-16, GC

1шт.

18

K949669

COUPLING, BREAK AWAY

COUPLING - camshaft, no longer available

1шт.

19

K912996

SHAFT

SPINDLE - camshaft, no longer available

1шт.

20

K912997

CAMSHAFT

- bracket pivot, no longer available

1шт.

21

135-101

GROOVED PIN,3/8" x 1 3/4", Type A

PIN, GROOVED, , Camshaft (Replaces pin K19566) 3/8" x 1 3/4", Type A

1шт.

22

K944568

BRACKET

- pivot, no longer available

1шт.

23

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

Bracket to gearbox end plate, if used (Replaces bolt K600414) Hex, 3/8"-16 x 2 3/4", G5

2шт.

23

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

- hex, 3/8 NC x 4 inch, bracket to gearbox end plate, if used (Replaces bolt K600420)

2шт.

492-11038

LOCK WASHER,3/8"

bracket to gearbox end plate (Replaces washer K19482) 3/8"

4шт.

24

K944569

BLOCK

- thrust, no longer available

1шт.

25

K608007

STUD

- 1/4 NC x 2-5/16 inch, no longer available

3шт.

K626662

WASHER

- flat, 1/4 inch (Replaces washer K19470)

3шт.

231-1444

NUT,1/4"-20, GB

NUT, LOCK, (Replaces nut K607300) 1/4"-20, GB

3шт.

26

K625107

SPRING

- stud, no longer available

3шт.

27

K944566

CLUTCH

SEGMENT - pivot bracket, no longer available

2шт.

28

K912992

DISC

- stationary, no longer available

5шт.

29

K921991

DISC - revolving, no longer available

5шт.

30

K944567

GEAR

HUB - brake discs, no longer available

1шт.

31

K992659

SPACER - pinion shaft, no longer available

1шт.

32

K623317

LOCK NUT

- Nyloc, 1-1/8 BSF, left-hand

1шт.

Выбрано товаров: 41
