Запчасти Case IH 885N (7-20) - FRONT AND REAR BRAKE SHOES, 885 AND 885Q HIGHWAY TRACTORS (07) - BRAKES

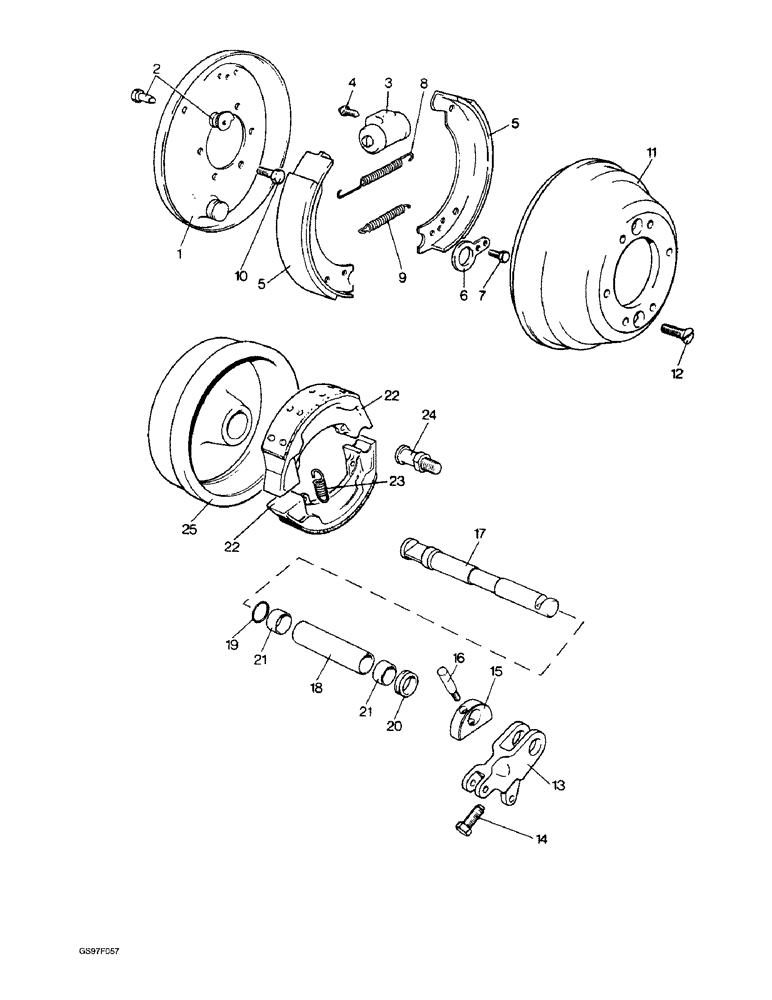

Схема запчастей Case IH 885N - (7-20) - FRONT AND REAR BRAKE SHOES, 885 AND 885Q HIGHWAY TRACTORS (07) - BRAKES
25
3
11
17
5
24
20
22
10
8
13
18
2
4
9
1
23
14
5
19
6
12
7
22
21
21

Артикул

Название

Примечание

Количество

K943507

BRAKE

ASSEMBLY - left-hand, front, no longer available, Includes: Ref. 1 - 9

1шт.

K943508

BRAKE

ASSEMBLY - right-hand, front, no longer available, Includes: Ref. 1 - 9

1шт.

1

K964506

PLATE

- back, left-hand, no longer available

1шт.

1

K964507

PLATE

- back, right-hand, no longer available

1шт.

2

K964516

CAM

KIT - snail cam, no longer available

1шт.

3

K964511

WHEEL

CYLINDER ASSEMBLY - wheel, left-hand, no longer available, Includes: Kit

1шт.

3

K964512

WHEEL

CYLINDER ASSEMBLY - wheel, right-hand, no longer available, Includes: Kit

1шт.

K964513

KIT

- seal, wheel cylinder, no longer available

1шт.

4

K964519

SCREW

- bleed, 3/8 inch NF, no longer available

1шт.

K964515

NUT

- lock, cylinder to backplate, no longer available

2шт.

K964514

SPRING

WASHER - spring, cylinder to backplate, no longer available

2шт.

5

K964508

SHOE

S - brake, pair, left-hand, front, no longer available

1шт.

5

K964505

SHOE

S - brake, pair, right-hand, front, no longer available

1шт.

6

K964517

PLATE

- anchor, brake shoe, no longer available

1шт.

7

K964518

SCREW

- hex, anchor plate, no longer available

2шт.

8

K964509

SPRING

- shoe to backplate, no longer available

1шт.

9

K964510

SPRING

- shoe to shoe, no longer available

1шт.

10

K600503

BOLT

- hex, 3/8 NC x 1-1/16 inch, backplates to axle, no longer available

12шт.

232-1446

NUT,3/8"-16, GC

NUT, LOCK, , Backplates to axle (Replaces nut K607302) 3/8"-16, GC

12шт.

11

K943502

BRAKE

DRUM - brake, front, no longer available

2шт.

12

K603753

SCREW

- hex, 1/2 NC x 1-3/8 inch, drum to hub, no longer available

4шт.

13

K928589

LEVER

- cam, used with 885H tractors

2шт.

13

K953292

LEVER

- cam, used with 885QH tractors, no longer available

2шт.

14

K951528

SCREW

BOLT - adjuster, 5/8 inch NC, used with 885QH tractors

2шт.

425-1010

NUT,5/8"-11, G5

Used with 885QH tractors (Replaces nut K607048) 5/8"-11, G5

2шт.

15

K948979

ADJUSTER

CAM - adjuster, used with 885QH tractors, no longer available

2шт.

16

K609425

LARGE PIN

PIN - cotter, 3/8 inch NC

2шт.

K19472

WASHER

- flat, 3/8 inch

2шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer K19482) 3/8"

2шт.

113-351

BOLT,Hex, 7/16" - 14 x 2-3/4", Gr 5

(Replaces bolt K600702) Hex, 7/16"-14 x 2 3/4", G5

2шт.

17

K921000

CAMSHAFT - cam, left-hand, used with 885H tractors, no longer available

1шт.

17

K921001

CAMSHAFT - cam, right-hand, used with 885H tractors, no longer available

1шт.

17

K949396

BRAKE

CAMSHAFT - cam, left-hand, used with 885QH tractors, no longer available

1шт.

17

K949397

BRAKE

CAMSHAFT - cam, right-hand, used with 885QH tractors, no longer available

1шт.

18

K912002

GUARD

SHIELD - dust , no longer available

2шт.

19

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

(Replaces O-ring K623561) -212, 70 Duro, .859" ID x .139" Thk

2шт.

20

K85417

SEAL

EXCLUDER - dirt

2шт.

21

K30835

BUSHING

- rear axle housing

4шт.

22

K903512

BRAKE SHOE

SHOE - brake, rear, also order lining kit K262703 (Replaces shoe K903806)

4шт.

K262703

KIT

- brake lining, with rivet (Replaces lining K964570)

1шт.

23

K63462

SPRING

- brake shoes

4шт.

24

K906002

PIN

- fulcrum, brake shoes

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Replaces washer K19485) 5/8"

2шт.

25

K905641

BRAKE

DRUM - brake, rear

2шт.

Выбрано товаров: 44
