Запчасти Case IH 885N (7-14) - HAND BRAKE LINKAGE, 885Q HIGHWAY TRACTORS (07) - BRAKES

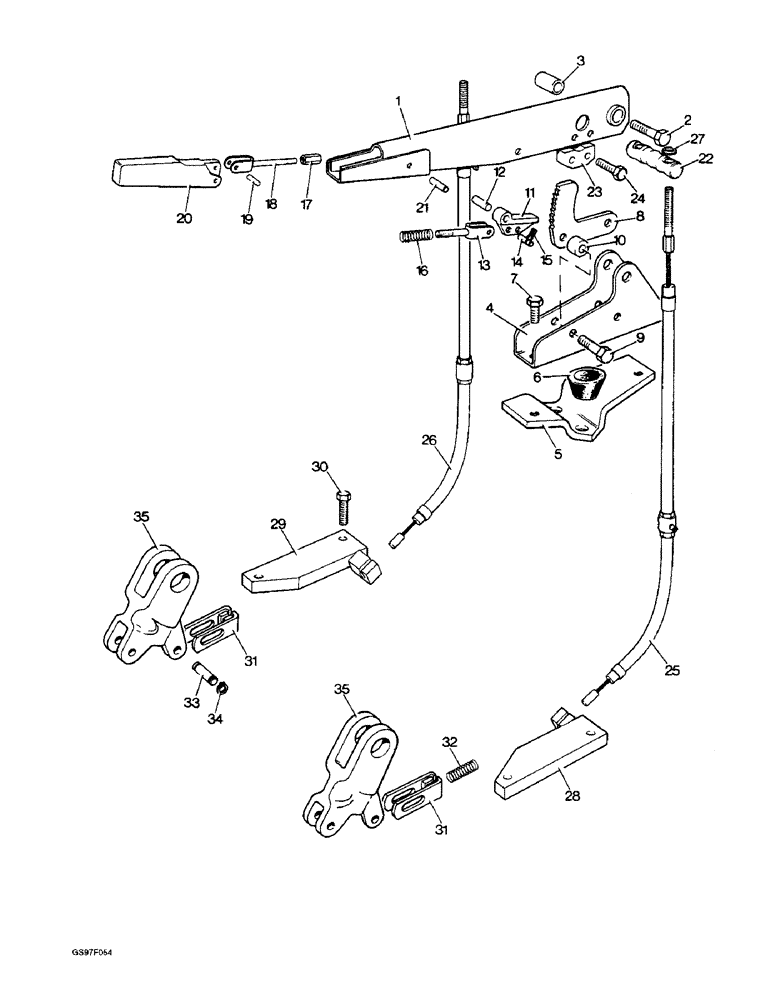

Схема запчастей Case IH 885N - (7-14) - HAND BRAKE LINKAGE, 885Q HIGHWAY TRACTORS (07) - BRAKES
6
31
28
4
24
23
35
27
8
29
15
35
11
5
14
17
2
12
19
16
34
33
32
22
30
26
13
7
1
21
25
9
10
31
20
18
3

Артикул

Название

Примечание

Количество

1

K955643

LEVER

- hand, tractor serial number 11005914 and after

1шт.

1

K950579

LEVER

L EVER - hand, tractor serial numbers prior to 11005914, no longer available

1шт.

2

113-2256

SCREW

BOLT - hex, 3/8 NC x 1-7/8 inch, hand, Serial Range: lever-bracket

1шт.

3

K627052

BUSHING

SPACER - hand, Serial Range: lever-bracket

1шт.

492-11038

LOCK WASHER,3/8"

hand lever to bracket (Replaces washer K19482) 3/8"

1шт.

425-106

NUT,3/8"-16, Cl 5

Hand lever to bracket (Replaces nut K607045) 3/8"-16, G5

1шт.

4

K955244

BRACKET

- support, hand lever

1шт.

5

K949506

SHIM

PLATE - retaining, no longer available

1шт.

6

K949507

SEAL

- rubber, bracket to plate, no longer available

2шт.

7

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SCREW - hex, 5/16 NC x 3/4 inch, bracket to plate

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , bracket to plate (Replaces washer K19481) 5/16"

2шт.

8

K949487

RATCHET

- support bracket, no longer available

1шт.

9

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

Ratchet to support bracket Hex, 5/16"-18 x 1 3/4", G5

2шт.

10

K627084

BUSHING

SPACER - ratchet to support bracket, no longer available

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , ratchet to support bracket 5/16"

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, Ratchet to support bracket (Replaces nut K607044)

2шт.

11

K200038

PAWL

- pull rod , no longer available

1шт.

12

38-11614

LOCK PIN,1/4" x 7/8", Slotted

Pin, 1/4" x 7/8" (Replaces pin K623924)

1шт.

13

K950033

ROD

- pull, short

1шт.

14

K949499

PIN

- grooved

1шт.

15

K621572

RING, SNAP

CLIP - spring

1шт.

16

K625099

SPRING

- pull rod

1шт.

225-14210

NUT,#10-32

(Replaces nut K617080) #10-32

1шт.

17

K617286

NUT

SLEEVE - adjusting, No. 10 NF, no longer available, order pull rod K95033, Ref. 18 and nut K617297

1шт.

17

K617297

NUT

- long, special, 10-32 NF

1шт.

18

K950577

ROD

- pull, long, no longer available

1шт.

18

K950033

ROD

- pull, short, used with nut K617297 above

1шт.

19

K949498

PIN

- plain

1шт.

20

K950026

LEVER

- release

1шт.

21

138-2067

PIN,3/16" x 1", Coiled

(Replaces pin K623773) 3/16" x 1", Coiled

1шт.

22

K949501

BAR

- balance

1шт.

23

K949502

SUPPORT

BLOCK - support, no longer available

1шт.

24

K966404

SCREW

- hex, 1/4 NC x 1-1/8 inch, block to hand lever

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Block to hand lever (Replaces washer K19480) 1/4"

2шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, block to hand lever (Replaces nut K607043)

2шт.

25

K949505

BRAKE

CABLE - inner and outer, left-hand, no longer available, order cable K311168 and cable pin K210359

1шт.

25

K311168

CABLE

- hand brake, left-hand

1шт.

26

K949504

BRAKE

CABLE - inner and outer, right-hand, no longer available, order cable K311167 and cable pin K210359

1шт.

26

K311167

CABLE

- hand brake, right-hand

1шт.

K210359

PIN

- cable, used with cables K311168 and K311167

2шт.

27

K949503

WASHER

- spherical, 5/16 inch

2шт.

K617285

SPECIAL NUT

- special, 5/16 inch NF

2шт.

425-155

JAM NUT,Jam, 5/16"-24, G5

hex jam, 5/16 inch NF (Replaces nut K622807)

2шт.

28

K950432

BRACKET

- anchor, left-hand cable, no longer available

1шт.

29

K950435

BRACKET

- anchor, right-hand cable, no longer available

1шт.

30

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Bracket to axle (Replaces bolt K602906) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

492-11038

LOCK WASHER,3/8"

bracket to axle (Replaces washer K19482) 3/8"

4шт.

31

K949523

FORK

- end, brake cable

2шт.

32

K625259

SPRING

- return, cable, no longer available

2шт.

33

K949552

PIN

- grooved

2шт.

K626682

WASHER

- flat, 5/16 inch

4шт.

34

K621482

RING, SNAP

RING - snap, 5/16 inch OD

4шт.

35

K953292

LEVER

- cam, no longer available

2шт.

Выбрано товаров: 53
