Запчасти Case IH 885N (7-12) - BRAKE SLAVE CYLINDERS AND PIPES, 885Q HIGHWAY TRACTORS (07) - BRAKES

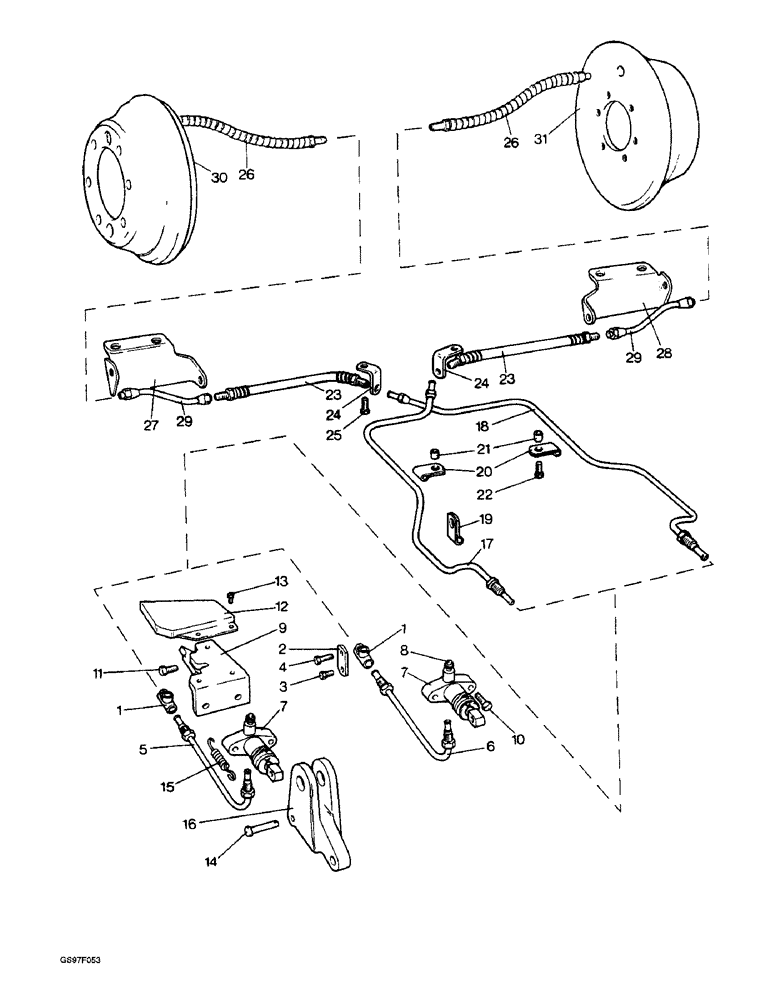

Схема запчастей Case IH 885N - (7-12) - BRAKE SLAVE CYLINDERS AND PIPES, 885Q HIGHWAY TRACTORS (07) - BRAKES
27
22
12
29
28
21
2
29
31
16
24
15
1
5
7
23
10
13
18
14
20
7
4
9
26
24
11
23
25
26
3
30
17
6
19
1
8

Артикул

Название

Примечание

Количество

1

K972194

FITTING

TEE - 3/8 inch NF, no longer available

2шт.

2

K954095

SUPPORT

PLATE - tee, no longer available

2шт.

3

K603048

SCREW

- hex, 7/16 NC x 3/4 inch

2шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC (Replaces nut K607043)

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer K626341) 1/4"

2шт.

5

K954109

PIPE

- tee to left-hand slave cylinder, no longer available

1шт.

6

K954108

PIPE

- tee to right-hand slave cylinder, no longer available

1шт.

7

K949123

CYLINDER

- slave, Girling 64066108, no longer available

2шт.

K964783

SEAL

KIT - seal, vegetable oil, no longer available

2шт.

8

K964534

SCREW,M12 x 1

- bleed, 3/8 inch NF

2шт.

9

K953194

MOUNTING PARTS

BRACKET - mounting, left-hand cylinder, no longer available

1шт.

9

K953191

MOUNTING PARTS

BRACKET - mounting, right-hand cylinder, no longer available

1шт.

10

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch (Replaces bolt K600365)

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer K19481) 5/16"

4шт.

11

413-718

BOLT,Hex, 7/16" - 14 x 1-1/8", Gr 5

- hex, 7/16 NC x 1-1/8 inch (Replaces bolt K603051)

4шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

12

K951689

GUARD

SHIELD - left-hand slave cylinder, no longer available

1шт.

12

K951649

GUARD

SHIELD - right-hand slave cylinder, no longer available

1шт.

13

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch (Replaces bolt K602734)

5шт.

13

K603048

SCREW

BOLT - hex, 7/16 NC x 3/4 inch

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer K626341) 1/4"

5шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

14

K625955

PIN

- clevis, 5/16 x 1-13/16 inch, no longer available

2шт.

K626682

WASHER

- flat, 5/16 inch

2шт.

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), (Replaces pin K11934) 1/16" x 1/2"

2шт.

15

K624948

SPRING

- return

2шт.

16

K953292

LEVER

- cam, no longer available

2шт.

17

K954111

PIPE

- left-hand tee to right-hand flexible, no longer available

1шт.

18

K954110

PIPE

- right-hand tee to left-hand flexible, no longer available

1шт.

19

K621725

CLIP

- pipes to rear frame , no longer available

2шт.

20

K621610

CLIP

- pipes to front main frame

4шт.

21

K627020

BUSHING

SPACER - pipes to front main frame, no longer available

4шт.

22

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

- hex, 5/16 NC x 1-1/8 inch, pipes to front main frame (Replaces bolt K602806)

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , pipes to front main frame (Replaces washer K19481) 5/16"

4шт.

23

K953945

HOSE

PIPE - flexible, 3/8 NF x 12-1/2 inch, no longer available

2шт.

493-81008

LOCK WASHER,Int Tooth, 5/16"

WASHER - internal tooth lock, 5/16 inch (Replaces washer K626479)

2шт.

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex, 3/8 inch NF (Replaces nut K617052)

2шт.

24

K953946

SUPPORT

BRACKET - flexible pipe, no longer available

2шт.

25

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

(Replaces bolt K602985) Hex, 3/8"-16 x 1 1/8", G5, Full Thd

2шт.

495-11044

WASHER - flat, 7/16 x 1 x 5/64 inch (Replaces washer K626699)

2шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer K19482) 3/8"

2шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut K607045) 3/8"-16, G5

2шт.

26

K972385

HOSE

PIPE - flexible, 3/8 NF x 13 inch (330 mm) long, no longer available

2шт.

493-81008

LOCK WASHER,Int Tooth, 5/16"

WASHER - internal tooth lock, 5/16 inch (Replaces washer K626479)

2шт.

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex, 3/8 inch NF (Replaces nut K617052)

2шт.

K626447

WASHER

- copper, 3/8 inch, no longer available

2шт.

27

K954097

PIPE

BRACKET - left-hand, no longer available

1шт.

28

K954096

PIPE

BRACKET - right-hand, no longer available

1шт.

29

K954134

PIPE

- flexible to flexible, no longer available

2шт.

30

K943507

BRAKE

ASSEMBLY - left-hand, parts list Fig. 7-20, no longer available

1шт.

31

K943508

BRAKE

ASSEMBLY - right-hand, parts list Fig. 7-20, no longer available

1шт.

4

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

(Replaces bolt K600153) Hex, 1/4"-20 x 1 1/4", G5

2шт.

Выбрано товаров: 53
