Запчасти Case IH 885N (7-10) - BRAKE MASTER CYLINDERS AND PIPES, 885Q HIGHWAY TRACTORS (07) - BRAKES

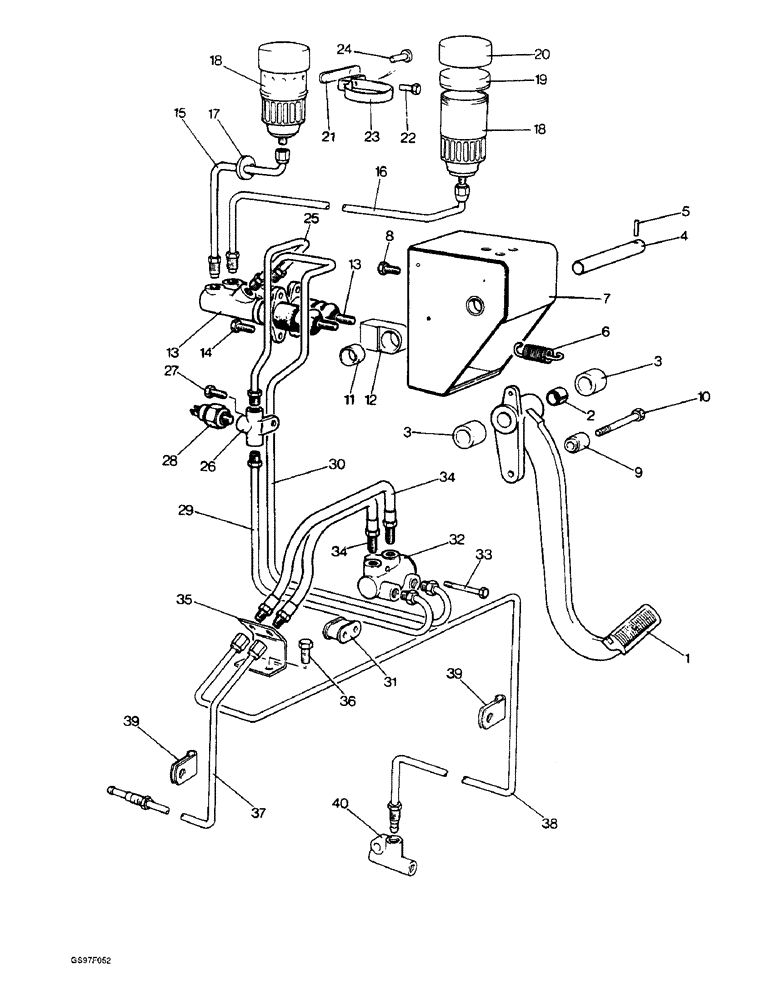

Схема запчастей Case IH 885N - (7-10) - BRAKE MASTER CYLINDERS AND PIPES, 885Q HIGHWAY TRACTORS (07) - BRAKES
17
36
10
16
13
14
20
34
13
28
19
32
4
12
31
3
40
27
18
38
37
15
24
11
8
7
3
18
34
5
22
39
21
23
26
33
1
25
35
9
6
39
30
29

Артикул

Название

Примечание

Количество

1

K941780

BRAKE

PEDAL - brake, includes bushings, no longer available

1шт.

2

K628754

BUSHING

- pedal

2шт.

3

K953290

BUSHING

SPACER - distance, pivot pin, no longer available

1шт.

4

K950568

PIN

- pivot, no longer available

1шт.

5

K19552

GROOVED PIN,1/8" x 1 1/8", Type A

Pin, Grooved, 1/8" x 1 1/8", Type A

1шт.

6

K624947

SPRING

- return

1шт.

7

K949253

SUPPORT

BRACKET - support, brake pedal, no longer available

1шт.

8

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SCREW - hex, 5/16 NC x 3/4 inch, bracket to cab

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , bracket to cab (Replaces washer K19481) 5/16"

2шт.

9

K953289

BUSHING

SPACER - distance, no longer available

2шт.

10

113-319

BOLT,Hex, 7/16" - 14 x 2-1/2", Gr 5

(Replaces K600713) Hex, 7/16"-14 x 2 1/2", G5

1шт.

K626884

WASHER

- special, 7/16 inch, no longer available

2шт.

K607328

BUSHING

NUT - Nyloc, 7/16 inch NC, no longer available

1шт.

11

K628754

BUSHING

- eye end

2шт.

12

K953288

END - eye, 5/16 inch NF, no longer available

2шт.

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF (Replaces nut K616981)

2шт.

13

K953287

CYLINDER

- master, Girling, no longer available

2шт.

K964484

SEAL

KIT - seal, master cylinder, no longer available

1шт.

14

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

- hex, 5/16 NC x 1-1/8 inch (Replaces bolt K602844)

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer K19481) 5/16"

4шт.

15

K953961

PIPE

- left-hand, master cylinder inlet, no longer available

1шт.

16

K953962

PIPE

- right-hand, master cylinder inlet, no longer available

1шт.

17

K627747

GROMMET

- 13/16 inch, no longer available

1шт.

18

K949989

RESERVOIR

ASSEMBLY - Girling 64046100, no longer available, Includes: Ref. 19 and 20

2шт.

19

K964488

CAP

- filler

1шт.

20

K964814

COVER

- filler cap, black, no longer available

1шт.

21

K953924

SUPPORT

- reservoir, no longer available

1шт.

22

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

(Replaces bolt K602849) Hex, 5/16"-18 x 7/8", G5, Full Thd

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer K19481) 5/16"

2шт.

23

K624873

CLIP

- reservoir, no longer available

2шт.

24

K614946

SCREW,Pan, #10 - 32 x 3/4"

- hex, No. 10 NF x 3/4 inch

2шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, (Replaces washer K19488) #10

2шт.

225-14210

NUT,#10-32

(Replaces nut K617080) #10-32

2шт.

25

K953963

PIPE

- master cylinder to tee, no longer available

1шт.

26

K622177

FITTING

TEE - switch, 3/8 inch NF, no longer available

1шт.

27

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SCREW - hex, 5/16 NC x 3/4 inch

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer K19481) 5/16"

1шт.

28

K954921

LIGHT SWITCH

SWITCH - stop lamps, Lucas 34619B, no longer available

1шт.

K626447

WASHER

- copper, 3/8 inch, no longer available

1шт.

29

K954487

BRAKE

PIPE - tee to balance valve, no longer available

1шт.

30

K954486

BRAKE

PIPE - master cylinder to balance valve, no longer available

1шт.

31

K952209

PIPE

BLOCK - packing, brake pipes, no longer available

2шт.

32

K949122

VALVE

- balance, Girling 64068713, no longer available

1шт.

33

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Valve to cab (Replaces bolt K600150) Hex, 1/4"-20 x 1 1/2", G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Valve to cab (Replaces washer K626341) 1/4"

1шт.

34

K953925

HOSE

PIPE - flexible, 3/8 NF x 17 inch (432 mm) long, no longer available

2шт.

493-81008

LOCK WASHER,Int Tooth, 5/16"

WASHER - internal tooth lock, 5/16 inch (Replaces washer K626479)

2шт.

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex jam, 3/8 inch NF (Replaces nut K617052)

2шт.

K626447

WASHER

- copper, 3/8 inch, no longer available

2шт.

35

K951919

BRACKET

- flexible pipes, no longer available

1шт.

36

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

Bracket to rear axle (Replaces bolt K602903) Hex, 3/8"-16 x 7/8", G5, Full Thd

1шт.

492-11038

LOCK WASHER,3/8"

bracket to rear axle (Replaces washer K19482) 3/8"

1шт.

37

K954107

PIPE

- flexible to left-hand tee, no longer available

1шт.

38

K954106

PIPE

- flexible to right-hand tee, no longer available

1шт.

39

K621726

CLIP

- pipes to axle housing, no longer available

2шт.

40

K972194

FITTING

TEE - pipe, 3/8 inch NF, no longer available

2шт.

Выбрано товаров: 56
