Запчасти Case IH 885N (7-08) - BRAKE PISTON ACTUATOR ASSEMBLY, 885 AND 885N TRACTORS (07) - BRAKES

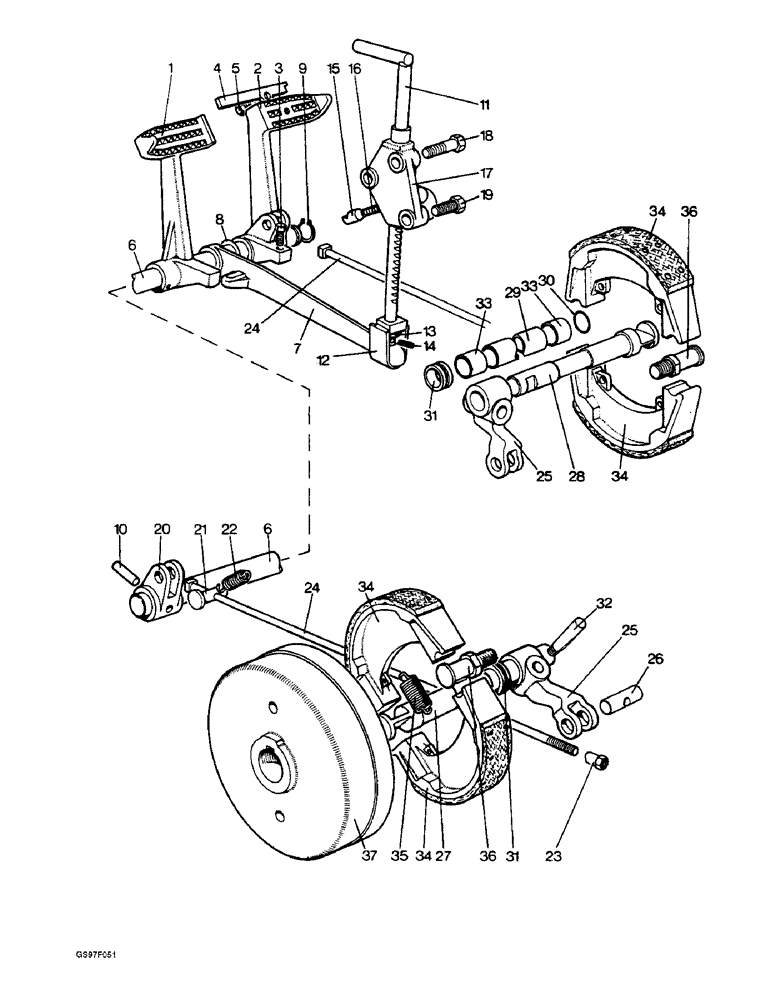

Схема запчастей Case IH 885N - (7-08) - BRAKE PISTON ACTUATOR ASSEMBLY, 885 AND 885N TRACTORS (07) - BRAKES
29
30
24
33
5
23
25
25
13
20
31
28
24
36
6
34
34
11
8
1
34
36
9
10
35
15
18
32
6
37
31
4
12
16
17
7
22
34
33
19
14
21
26
3
27
2

Артикул

Название

Примечание

Количество

1

K940736

BRAKE

PEDAL - brake, left-hand, full fenders, used with 885 tractors

1шт.

1

K926602

PEDAL - brake, left-hand, shell fenders, used with 885 tractors, no longer available

1шт.

1

K925142

BRAKE

PEDAL - brake, left-hand, used with 885N tractors, no longer available

1шт.

2

K912046

BRAKE

PEDAL - brake, right-hand

1шт.

3

K603044

SCREW

- set, 7/16 NC x 1-3/4 inch, right-hand pedal

1шт.

425-147

JAM NUT,Jam, 7/16"-14, G5

- hex jam, 7/16 inch NC, right-hand pedal (Replaces nut K607053)

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper, RH pedal (Replaces fitting K13176) 1/4"-28 NPT x .54" lg

1шт.

4

K38656

PLATE

- locking, pedals

1шт.

5

K600500

SCREW

BOLT - special, 3/8 inch NC

1шт.

K626700

WASHER

- spring, 3/8 inch, double coil

1шт.

6

K912042

BRAKE

SHAFT - cross, used with 885 tractors, no longer available

1шт.

6

K919985

SHAFT - cross, used with 885N tractors, no longer available

1шт.

7

K929790

LEVER

- operating, hand brake, used with 885 tractors, no longer available

1шт.

7

K916988

LEVER

- operating, hand brake, used with 885N tractors, no longer available (Replaces lever K929825)

1шт.

8

K30884

SHIM

- operating lever, no longer available

1шт.

9

K11129

RING, SNAP

RING - snap, 1-1/4 inch OD

1шт.

10

135-377

PIN, GROOVED

PIN - cross shaft lever (Replaces pin K623732)

3шт.

11

K916989

LEVER

- hand

1шт.

12

K949260

FORK

STIRRUP - operating lever

1шт.

13

K626736

WASHER

- special, 5/8 inch, no longer available

1шт.

14

138-157

LOCK PIN,5/16" x 1 1/2", Slotted

Pin, (replaces pin K623892) 5/16" x 1 1/2", Slotted

1шт.

15

K909588

PAWL

- spring

1шт.

16

K14651

SPRING

- housing

1шт.

17

K926328

HOUSING

- hand brake lever (Replaces housing K912048)

1шт.

18

113-336

BOLT,Hex, 7/16" - 14 x 2-1/4", Gr 5

- hex, 7/16 NC x 2-1/4 inch, housing to frame (Replaces bolt K600608)

1шт.

19

413-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

- hex, 7/16 NC x 1-1/4 inch, housing to frame (Replaces bolt K603005)

2шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, , Housing to frame (Replaces washer K19483) 7/16"

3шт.

20

K912043

LEVER

- cross shaft, no longer available

1шт.

21

K919706

PIN

- brake rods

2шт.

22

K624927

SPRING

- return

2шт.

23

K607525

NUT

- hex, 3/8 inch NC (Replaces nut K607504)

2шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut K607002) 3/8"-16, G5

2шт.

24

K929563

ROD

- brake, used with 885 tractors

2шт.

24

K929655

BRAKE

ROD - brake, used with 885N tractors

2шт.

25

K928589

LEVER

- cam, two used with 885 tractors, one used with 885N tractors

1шт.

25

K929624

LEVER

- cam, right-hand, used with 885N tractors, no longer available

1шт.

26

K14744

PIN

- cam lever, two used with 885 tractors, one used with 885N tractors

1шт.

26

K907619

PIN

- cam lever, right-hand, used with 885N tractors, no longer available

1шт.

27

K912000

BRAKE

CAMSHAFT - brake, left-hand, used with 885 tractors

1шт.

27

K907626

BRAKE

CAMSHAFT - brake, left-hand, used with 885N tractors, no longer available

1шт.

28

K912001

BRAKE

CAMSHAFT - brake, left-hand, used with 885 tractors

1шт.

28

K907627

BRAKE

CAMSHAFT - brake, left-hand, used with 885N tractors, no longer available

1шт.

29

K912002

GUARD

SHIELD - dust, no longer available

2шт.

30

K623561

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

- 7/8 ID x 1/8 inch wide (Replaces O-ring K623561)

2шт.

31

K85417

SEAL

EXCLUDER - dirt

2шт.

32

K609425

LARGE PIN

PIN - cotter, 3/8 inch NC

2шт.

K19472

WASHER

- flat, 3/8 inch

2шт.

493-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, LOCK, (Replaces washer K11522) Ext Tooth, 3/8"

2шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut K607002) 3/8"-16, G5

2шт.

33

K30835

BUSHING

- axle housing

4шт.

34

K903512

BRAKE SHOE

SHOE - brake, also order lining kit K262703 below

4шт.

K262703

KIT

- brake lining, with rivet

1шт.

35

K63462

SPRING

- brake shoes

4шт.

36

K906002

PIN

- fulcrum, brake shoes

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Replaces washer K19485) 5/8"

2шт.

37

K905641

BRAKE

DRUM - brake

2шт.

Выбрано товаров: 56
