Запчасти Case IH 885N (7-06) - SLAVE CYLINDERS AND BRAKE SHOES, 885Q AND 885SK TRACTORS (07) - BRAKES

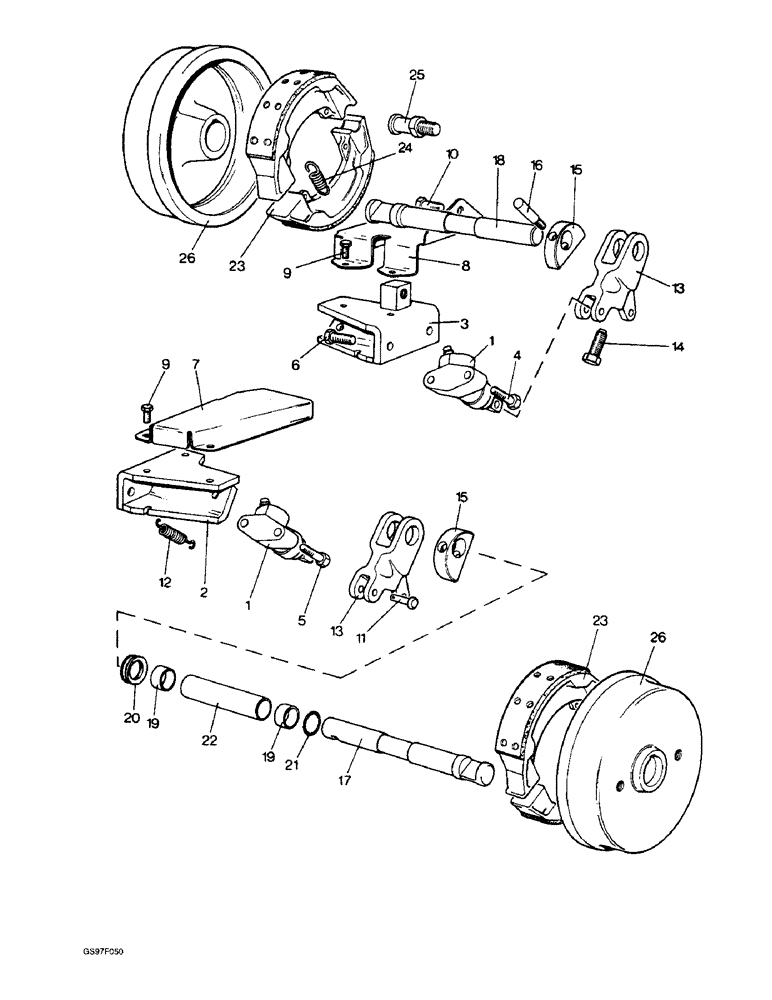

Схема запчастей Case IH 885N - (7-06) - SLAVE CYLINDERS AND BRAKE SHOES, 885Q AND 885SK TRACTORS (07) - BRAKES
9
13
13
20
4
15
25
6
16
24
11
1
26
14
19
8
21
3
23
26
23
22
5
10
2
9
12
17
19
1
7
15
18

Артикул

Название

Примечание

Количество

1

K950557

CYLINDER

- slave, Girling 73067020, no longer available

2шт.

K964573

SEAL KIT

- seal, slave cylinder, mineral oil seals

2шт.

K964534

SCREW,M12 x 1

- bleed, M12

2шт.

2

K950450

MOUNTING PARTS

BRACKET - mounting, left-hand cylinder, no longer available

1шт.

3

K950449

MOUNTING PARTS

BRACKET - mounting, right-hand cylinder, no longer available

1шт.

4

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Cylinders to mounting brackets (Replaces bolt K600321) Hex, 1/4"-20 x 2", G5

2шт.

5

K600855

BOLT - hex, 5/16 NC x 1-3/4 inch, cylinders to mounting brackets, no longer available

2шт.

492-11038

LOCK WASHER,3/8"

cylinders to mounting brackets (Replaces washer K19482) 3/8"

4шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, Cylinders to mounting brackets (Replaces nut K607044)

4шт.

6

413-718

BOLT,Hex, 7/16" - 14 x 1-1/8", Gr 5

- hex, 7/16 NC x 1-1/8 inch, cylinders to mounting brackets (Replaces bolt K603051)

4шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, , Cylinders to mounting brackets (Replaces washer K626344) 7/16"

4шт.

7

K951689

GUARD

SHIELD - left-hand brake cylinder, no longer available

1шт.

8

K951649

GUARD

SHIELD - right-hand brake cylinder, no longer available

1шт.

9

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch, shields to brackets (Replaces bolt K602734)

5шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Shields to brackets (Replaces washer K626341) 1/4"

5шт.

10

K603048

SCREW

- hex, 7/16 NC x 3/4 inch

1шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, (Replaces washer K626344) 7/16"

1шт.

11

K625955

PIN

- clevis, 5/16 x 1-13/16 inch, no longer available

2шт.

K626682

WASHER

- flat, 5/16 inch

2шт.

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), (Replaces pin K11934) 1/16" x 1/2"

2шт.

12

K624948

SPRING

- return

2шт.

13

K948977

LEVER

- cam

2шт.

14

K951528

SCREW

BOLT - adjuster, 5/8 inch NC

2шт.

425-1010

NUT,5/8"-11, G5

(Replaces nut K607048) 5/8"-11, G5

2шт.

15

K948979

ADJUSTER

CAM - adjuster, no longer available

2шт.

16

K609425

LARGE PIN

PIN - cotter, 3/8 inch NC

2шт.

K19472

WASHER

- flat, 3/8 inch

2шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer K19482) 3/8"

2шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut K607002) 3/8"-16, G5

2шт.

17

K949396

BRAKE

CAMSHAFT - brake, left-hand, no longer available

1шт.

18

K949397

BRAKE

CAMSHAFT - brake, right-hand, no longer available

1шт.

19

K30835

BUSHING

- axle housing

4шт.

20

K85417

SEAL

EXCLUDER - dirt

2шт.

21

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

(Replaces O-ring K623561) -212, 70 Duro, .859" ID x .139" Thk

2шт.

22

K912002

GUARD

SHIELD - dust, no longer available

2шт.

23

K903512

BRAKE SHOE

SHOE - brake, with lining, also order lining kit K262703 below (Replaces shoe K903806)

4шт.

K262703

KIT

- brake lining, four and rivet (Replaces lining K964570)

1шт.

24

K63462

SPRING

- brake shoes

4шт.

25

K906002

PIN

- fulcrum

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Replaces washer K19485) 5/8"

2шт.

26

K905641

BRAKE

DRUM - brake

2шт.

Выбрано товаров: 41
