Запчасти Case IH 885N (6-30) - FINAL DRIVE (06) - POWER TRAIN

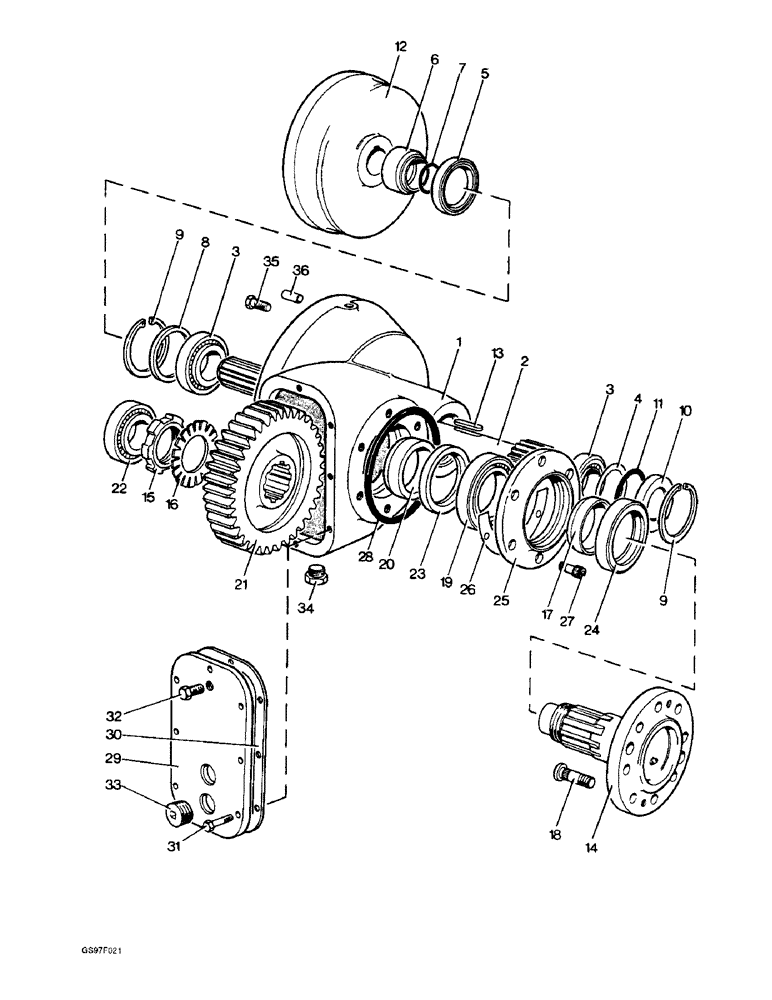

Схема запчастей Case IH 885N - (6-30) - FINAL DRIVE (06) - POWER TRAIN
31
23
15
27
16
35
26
3
13
33
6
12
1
5
9
3
11
18
19
20
36
2
4
14
30
29
34
32
25
17
9
24
22
21
7
10
28
8

Артикул

Название

Примечание

Количество

1

K929042

CASE

HOUSING - final drive

2шт.

1

K943951

GEAR

HOUSING - final drive, left-hand, used with 885N tractors, no longer available

1шт.

K943952

GEAR

HOUSING - final drive, right-hand, used with 885N tractors, no longer available

1шт.

2

K929043

SHAFT

- spur pinion, 9 tooth, 9/37 ratio

2шт.

2

K943953

GEAR-SET

SHAFT - spur pinion, 9 tooth, used with 885N tractors

2шт.

3

K19186

BEARING, ROLLER

BEARING - tapered roller

4шт.

4

K907514

SHIM,.003" Thk

1шт.

4

K907515

SHIM,.010" Thk

1шт.

5

K623455

SEAL

- oil, 2-1/2 x 3-1/4 x 3/8 inch

2шт.

6

K929046

COLLAR

- brake drum, no longer available

2шт.

7

238-5224

O-RING,0.139" Thk x 1.734" ID, -224, Cl 5, 75 Duro

(Replaces O-ring K15533) -224, 70 Duro, 1.734" ID x .139" Thk

2шт.

8

K904256

SPACER

- distance

2шт.

9

K13042

RING, SNAP

RING - snap, 3-1/4 inch ID

4шт.

10

K929045

COVER

- end

2шт.

11

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

(Replaces O-ring K623545) -234, 70 Duro, 2.984" ID x .139" Thk

2шт.

12

K905641

BRAKE

DRUM - brake, 1-3/4 inch wide, no longer available

2шт.

13

K19615

KEY

- brake drum, 1-3/4 inch, no longer available

2шт.

14

K963569

SHAFT ASSY.

SHAFT ASSEMBLY - final drum, with ring nut and collar, Includes: Ref. 15 - 17

2шт.

15

K13368

NUT

- ring, special, 2-1/4 inch

1шт.

16

K13367

WASHER

- tab

1шт.

17

K905287

SPLIT COLLAR

COLLAR - drum shaft

1шт.

18

K611266

BOLT

- special, 5/8 NF x 2-1/8 inch

16шт.

18

K611271

BOLT

- special, 5/8 NF x 3 inch, used with 885N tractors

16шт.

K617167

NUT

- hex, 5/8 inch NF, wheel fixing (Replaces nut K617171)

16шт.

19

K19185

TAPERED BEARING

BEARING - tapered roller

2шт.

20

K929048

SLEEVE

- final drive shaft

2шт.

21

K61771

WHEEL

- spur, 37 tooth, 9/37 ratio

2шт.

22

K19186

BEARING, ROLLER

BEARING - tapered roller, no longer available, order bearing ST2118 and seal B17220, Ref. 37 and 38

2шт.

23

K623452

SEAL,90mm ID x 110.28mm OD x 11.99mm Thk

- oil, 90 x 110 x 12 mm, inner

2шт.

24

K15550

OIL SEAL,80.95mm ID x 108.08mm OD x 15.88mm Thk

- oil, 3-1/4 x 4-1/4 x 5 inch, outer

2шт.

25

K929044

HOUSING

- oil seal

2шт.

26

K902772

SHIM,.003" Thk

1шт.

26

K902773

SHIM,.006" Thk

No longer available, Order shim K902772 above .006" Thk

1шт.

26

K902774

SHIM,.009" Thk

1шт.

26

K902775

GASKET

SHIM - 0.015 inch

1шт.

26

K947289

SHIM,56.36mm ID x 83.34mm OD x 0.76mm Thk

- 0.030 inch

1шт.

27

K606894

SCREW

BOLT - Wedglock, 7/16 inch NC, oil seal housing to final drive housing, no longer available

12шт.

28

238-5439

O-RING,0.275" Thk x 6.475" ID, -439, Cl 5, 75 Duro

- internal, 6-1/2 inch diameter, oil seal housing to final drive housing (Replaces O-ring K623537)

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper (Replaces fitting K13176) 1/4"-28 NPT x .54" lg

2шт.

29

K921755

COVER

- housing, no longer available

2шт.

30

K923220

GASKET

- housing cover

2шт.

31

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch (Replaces bolt K602805)

16шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer K19481) 5/16"

16шт.

32

K907203

PLUG

- vent, 1/2 inch NC, no longer available

2шт.

K19501

WASHER

WASHER - sealing, 1/2 inch

2шт.

33

K12362

PLUG

- tapered, 1 inch BSP

2шт.

34

K623849

PLUG

- flange, 1/2 inch BSP, housing (Replaces plug K623825)

2шт.

K626317

WASHER

- flat, aluminum, 27/32 inch, housing (Replaces washer K626793)

2шт.

K628085

PLUG,Cap, .458" OD

- plastic, 1/2 inch, stabilizer bracket holes

6шт.

353-10

PLUG,Cap, .547" OD

- plastic, 1/2 inch ID

2шт.

35

413-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5

- hex, 1/2 NC x 1-3/8 inch, housing to rear axle (Replaces bolt K603107)

20шт.

35

K603144

SCREW

- special, 1/2 NC x 1 inch, housing to rear axle, used with 885N tractors, no longer available (Replaces bolt K603107)

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Housing to rear axle (Replaces washer K19484) 1/2"

20шт.

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, , Housing to rear axle, used with 885N tractors (Replaces washer K11518) Ext-Int Tooth, 1/2"

1шт.

36

K11482

PIN

DOWEL - housing to rear axle, 7/16 x 1-1/4 inch, three used with 885N tractors, four used with all other tractors

1шт.

36

K30362

PIN

DOWEL - housing to rear axle, 7/16 x 1 inch, used with 885N tractors

1шт.

37

ST2118

TAPERED BEARING,1.75" ID x 3.27" OD x 0.9375"

BEARING - tapered roller, inner, not shown

2шт.

38

B17220

CUP,83.06mm OD x 19.11mm W

SEAL - oil, axle, not shown

2шт.
