Запчасти Case IH 885N (6-26) - GEAR SHIFT LEVERS, 885, 885H, 885G, 885N AND 885LP TRACTORS (06) - POWER TRAIN

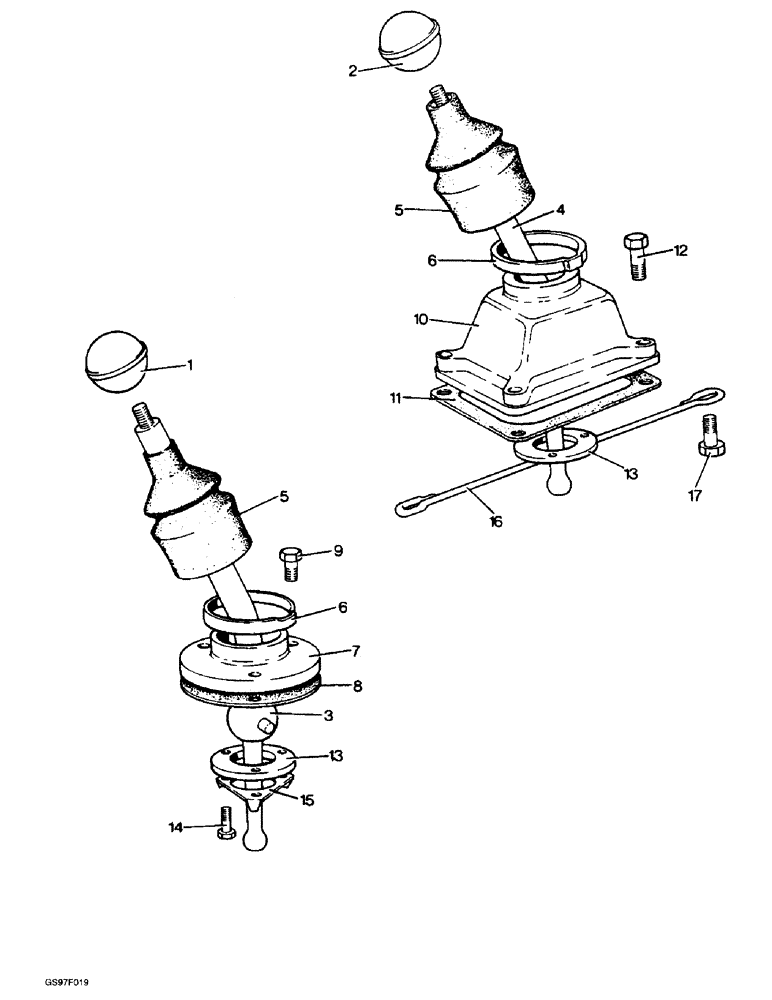

Схема запчастей Case IH 885N - (6-26) - GEAR SHIFT LEVERS, 885, 885H, 885G, 885N AND 885LP TRACTORS (06) - POWER TRAIN
13
11
6
9
1
3
7
12
5
15
5
4
17
2
13
14
6
10
16
8

Артикул

Название

Примечание

Количество

1

K920787

KNOB

- gear lever, no longer available, order knob K902270

1шт.

2

K902270

KNOB

- range lever

1шт.

3

K943284

CONTROL LEVER

LEVER - gear, 1, 2, 3, and reverse, used with 885, 885H, 885G and 885N tractors

1шт.

3

K201611

SELECTOR

LEVER - gear, 1, 2, 3, and reverse, used with 885LP tractors, no longer available

1шт.

4

K928775

SELECTOR

LEVER - range, used with 885, 885H, 885G and 885N tractors

1шт.

4

K201610

SELECTOR

LEVER - range, used with 885LP tractors, no longer available

1шт.

5

K929631

BOOT

EXCLUDER - dirt, used with 885, 885H, 885G and 885N tractors

2шт.

5

K950494

RUBBER

GAITER - lever, used with 885LP tractors

2шт.

6

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

CLAMP, HOSE, , Adjustable (Replaces clamp K622030) #32, 1.56/2.50 Type F Worm

2шт.

7

K929630

HOUSING

- ball, gear lever

1шт.

8

K901835

GASKET

- housing to gearbox cover

1шт.

9

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 3/4 inch, housing to gearbox cover (Replaces bolt K602703)

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Housing to gearbox cover (Replaces washer K19480) 1/4"

3шт.

10

K929629

BALL

HOUSING - ball, range lever

1шт.

11

K915597

GASKET,0.2mm Thk

- housing to gearbox cover

1шт.

12

13-418

BOLT,Hex, 1/4" - 20 x 1-1/8", Gr 5

Housing to gearbox cover (Replaces bolt K602706) Hex, 1/4"-20 x 1 1/8", G5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Housing to gearbox cover (Replaces washer K19480) 1/4"

4шт.

13

K903074

SUPPORT

PLATE - support

2шт.

14

163-18

SCREW,Hex, #10 - 24 x 3/8"

- machine, hex head, No. 10 NC x 3/8 inch, plate to housings (Replaces screw K603630)

6шт.

15

K904386

WASHER

- tab, Serial Range: plate-housings

2шт.

16

K914348

SPRING

- range lever

1шт.

17

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch (Replaces bolt K602703)

2шт.

K12256

WASHER

- fibre, 1/4 inch, spring to gearbox cover, no longer available

2шт.

234-10025

NUT,Crown, 1/4"-20

- dome, 1/4 inch NC, spring to gearbox cover

2шт.

Выбрано товаров: 24
