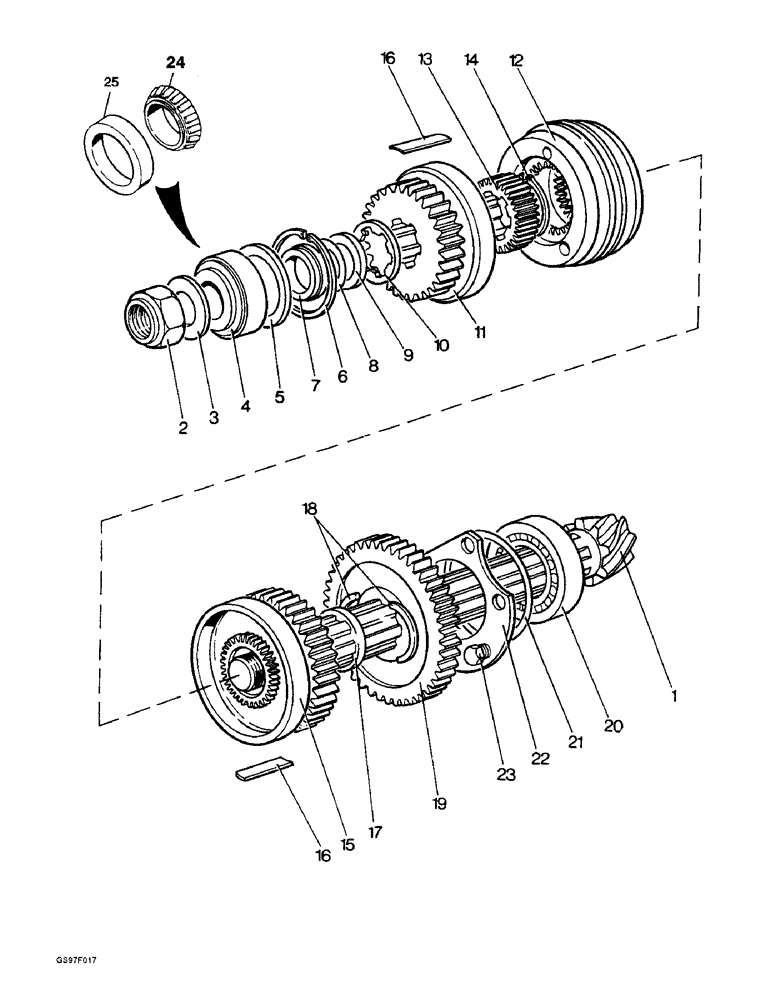

Запчасти Case IH 885N (6-22) - BEVEL PINION SHAFT (06) - POWER TRAIN

1

K964879

GEAR-SET

GEAR - spiral, with bevel pinion, 7/43 tooth, used with 885, 885Q, 885QH, 885Sk, 885H and 885N tractors

1шт.

1

K964897

GEAR

- spiral, with bevel pinion, 7/43 tooth, used with 885G tractors, no longer available

1шт.

K929659

BUSHING

SPACER - used with 885G tractors, no longer available

1шт.

2

K623317

LOCK NUT

- Nyloc, 1-1/8 BSF, left-hand

1шт.

3

K14687

WASHER

- flat, 1-1/8 inch

1шт.

4

K620061

BEARING, ROLLER

BEARING - roller, no longer available, order cup 197608R1 and bearing 197609R91, Ref. 24 and 25

1шт.

5

K627253

BUSHING

SPACER - bevel pinion shaft

1шт.

6

100-21300

SNAP RING,3.00", Int, #300

Ring, Snap, (Replaces ring K17023) 3.00", Int, #300

1шт.

7

K917844

BUSHING

SPACER - distance

1шт.

8

K917845

SHIM,35.32mm ID x 50.8mm OD x 0.05mm Thk

- 0.002 inch

1шт.

8

K917846

SHIM

- 0.005 inch

1шт.

8

K917847

SHIM

- 0.010 inch

1шт.

8

K917848

SHIM

- 0.030 inch

1шт.

9

K940969

BUSHING

SPACER - distance (Replaces spacer K627203)

1шт.

10

K926249

WASHER

- special

1шт.

11

K942671

GEAR

- high, 28 tooth

1шт.

12

K207796

GEAR

- sliding, with cones (Replaces gear K928223)

1шт.

K926266

SPRING

- sliding gear

6шт.

13

K942385

GEAR

- dog clutch (Replaces gear K928226)

2шт.

14

100-11175

SNAP RING,#175, Ext

Ring, Snap, (Replaces circlip K12922) #175, Ext

1шт.

15

K942672

GEAR

- medium, 35 tooth

1шт.

16

K928621

WEAR PAD

PAD - bearing

12шт.

17

K948472

WASHER

- special

1шт.

18

K948473

RING

- split, half

2шт.

19

K948512

GEAR

- low, 47 tooth

1шт.

20

K620131

ROLLER

BEARING - roller, no longer available, order bearing 170234R1 and cup 392679R91, Ref. 26 and 27

1шт.

21

K942872

SHIM

- 0.002 inch

1шт.

21

K942873

SHIM

- 0.003 inch

1шт.

21

K942874

SHIM

- 0.010 inch

1шт.

21

K942875

SHIM

- 0.030 inch

1шт.

22

K943068

COVER

PLATE - cover, rear bearing

1шт.

23

K603043

SCREW

- hex, 7/16 NC x 1 inch, no longer available

5шт.

24

197609R91

BEARING ASSY,1.375" ID x 3" OD x 1.125"

BEARING - tapered roller

1шт.

25

197608R1

BEARING ASSY,1.375" ID x 3" OD x 1.1562"

BEARING CUP, Tapered roller

1шт.

26

170234R1

BEARING ASSY,1.75" ID x 3.75" OD x 1.1875"

BEARING - tapered roller, not shown

1шт.

27

392679R91

BEARING CONE,47.63mm ID x 29.37mm W

CUP - tapered roller bearing, not shown

1шт.
