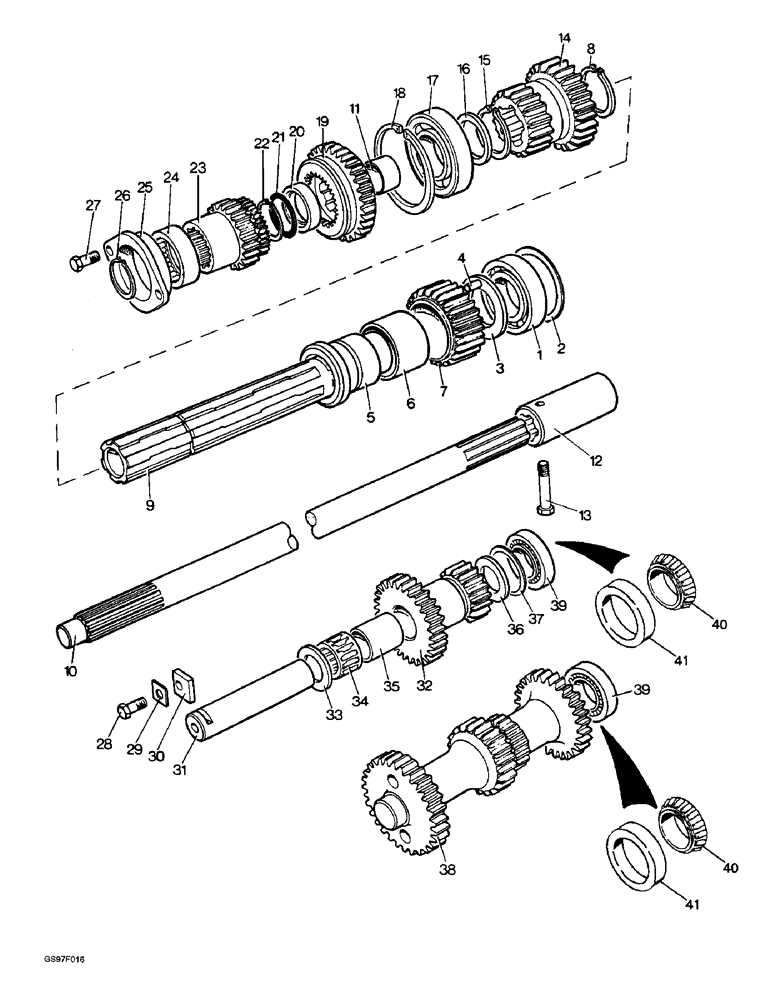

Запчасти Case IH 885N (6-20) - DRIVESHAFT (06) - POWER TRAIN

1

ST202

BEARING, BALL,45mm ID x 85mm OD x 19mm W

BEARING - ball (Replaces bearing K19047)

1шт.

2

K908372

SHIM,.003" Thk

1шт.

2

K908373

SHIM,.005" Thk

1шт.

2

K908374

SHIM,.020" Thk

1шт.

3

K908940

WASHER

- thrust

1шт.

4

K34594

PIN

- driveshaft

1шт.

5

K85241

CARRIER

BUSHING - carrier, reverse gear

1шт.

6

K24773

BUSHING

- driveshaft

1шт.

7

K963536

GEAR

- reverse, 25 tooth, with gear

1шт.

8

K13809

RING, SNAP

RING - snap, 45 mm OD

1шт.

9

K929626

DRIVE SHAFT

DRIVESHAFT - 6-speed Livedrive, no longer used

1шт.

9

K205712

DRIVE SHAFT

DRIVESHAFT - 6-speed (Replaces driveshaft K929627)

1шт.

9

K940073

DRIVE SHAFT

DRIVESHAFT - 12-speed Livedrive, no longer available, order driveshaft K205550, Ref. 9 and pinion K205535, Ref. 14

1шт.

9

K205550

DRIVE SHAFT

DRIVESHAFT - 12-speed

1шт.

10

K921635

SHAFT

- PTO cardan

1шт.

11

K24774

BUSHING

- driveshaft

1шт.

12

K89181

COUPLING, BREAK AWAY

SLEEVE - coupling, Livedrive

1шт.

12

K30369

O-RING

SLEEVE - coupling

1шт.

13

13-430

BOLT,Hex, 1/4" - 20 x 1-7/8", Gr 5

- hex, 1/4 NC x 1-7/8 inch, coupling to cardan shaft

1шт.

13

K600210

BOLT

- hex, 5/16 NC x 2-1/8 inch, Serial Range: coupling-driveshaft

1шт.

231-1444

NUT,1/4"-20, GB

NUT, LOCK, , Coupling to Cardan Shaft 1/4"-20, GB

1шт.

131-39

NUT,1"-14

NUT - thin hex, self-locking, 1/4 inch NC, coupling to driveshaft

1шт.

14

K205535

GEAR

PINION - range, 18/26 tooth (Replaces pinion K942664)

1шт.

15

100-11175

SNAP RING,#175, Ext

Ring, Snap, (Replaces ring K12922) #175, Ext

1шт.

16

K940671

WASHER

SPACER - driveshaft

1шт.

17

K19081

BALL BEARING

BEARING - ball

1шт.

18

R30570

SNAP RING,3.75", Int, #375

Ring, Snap, 3.75", Int, #375

1шт.

19

K928436

GEAR

- driven, 32 tooth, 12-speed

1шт.

20

K262776

SEAL

- oil, 1-1/8 x 1-7/8 x 3/8 inch, 12-speed

1шт.

21

K262773

O-RING

- 1-7/16 inch ID, 12-speed

1шт.

22

K621452

RING, SNAP

RING - snap, 1-7/16 inch OD, 12-speed

1шт.

23

K957323

GEAR

- driving, 21 tooth, 12-speed (Replaces gear K928666)

1шт.

24

A28161

NEEDLE BEARING,Needle, 57.15mm ID x 66.67mm OD x 19.05mm W

BEARING - needle roller, 12-speed (Replaces bearing K620124)

1шт.

25

K928437

BEARING HOUSING

HOUSING - bearing, 12-speed

1шт.

26

100-11175

SNAP RING,#175, Ext

Ring, Snap, , 12-speed (Replaces ring K12922) #175, Ext

1шт.

27

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

12-speed (Replaces bolt K602804) Hex, 5/16"-18 x 7/8", G5, Full Thd

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , 12-speed (Replaces washer K19481) 5/16"

2шт.

28

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

12-speed (Replaces bolt K602804) Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

29

K626423

WASHER

- tab, 12-speed

1шт.

30

K928456

PLATE

- locking, 12-speed

1шт.

31

K928439

SHAFT

SPINDLE - layshaft, 12-speed

1шт.

32

K928435

SHAFT

LAYSHAFT - with integral gears, 12-speed

1шт.

33

K627478

WASHER

- flat, 12-speed (Replaces washer K626714)

1шт.

34

K620273

BEARING, NEEDLE,28.57mm ID x 38.1mm OD x 25.02mm W

BEARING - needle roller, 12-speed

2шт.

35

K928440

BUSHING

SPACER - distance, 12-speed

1шт.

36

K627478

WASHER

- flat, 12-speed (Replaces washer K626714)

1шт.

37

K914702

SHIM,50.8mm ID x 67.06mm OD x 0.05mm Thk

1шт.

37

K914703

SHIM,.003" Thk

1шт.

37

K914704

SHIM,50.8mm ID x 67.06mm OD x 0.18mm Thk

1шт.

37

K914705

SHIM,50.8mm ID x 67.06mm OD x 0.25mm Thk

1шт.

38

K942670

SHAFT

LAYSHAFT - with integral gears

1шт.

39

K620076

BEARING, ROLLER

BEARING - roller, no longer available, order cup 651817R1 and bearing 651818R91, Ref. 40 and 41

2шт.

40

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING - tapered roller

2шт.

41

651817R1

BEARING CUP

CUP - tapered roller bearing

2шт.
