Запчасти Case IH 885N (6-16) - CLUTCH RELEASE MECHANISM, MECHANICAL COMPONENTS (06) - POWER TRAIN

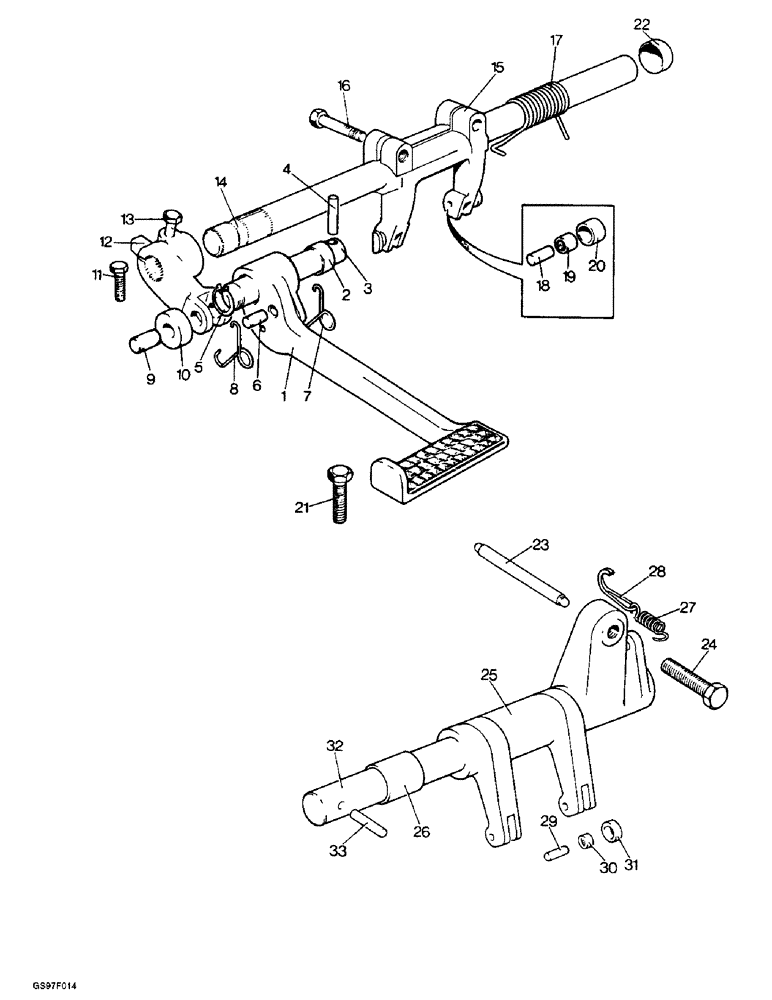

Схема запчастей Case IH 885N - (6-16) - CLUTCH RELEASE MECHANISM, MECHANICAL COMPONENTS (06) - POWER TRAIN
25
14
21
16
19
28
27
7
20
3
31
5
22
33
32
2
6
23
4
8
26
17
1
24
13
11
29
18
30
15
10
9
12

Артикул

Название

Примечание

Количество

1

K940394

CLUTCH

PEDAL - clutch, with bushings, used with 885, 885H, 885G and 885N tractors, no longer available

1шт.

2

K621371

BUSHING

- used with 885, 885H, 885G and 885N tractors

2шт.

3

K942494

LARGE PIN

PIN - fulcrum, used with 885, 885H, 885G and 885N tractors, no longer available

1шт.

4

135-360

PULLEY

PIN - groove, 1/4 x 1-3/4 inch, used with 885, 885H, 885G and 885N tractors

1шт.

K626716

WASHER

- special, 7/8 inch, used with 885, 885H, 885G and 885N tractors, no longer available

1шт.

5

100-1187

SNAP RING,#87, Ext

Ring, Snap, , Used with 885, 885H, 885G and 885N tractors #87, Ext

1шт.

6

K921686

SPRING

PIN - used with 885, 885H, 885G and 885N tractors, no longer available

1шт.

7

K921684

SPRING

- inner, used with 885, 885H, 885G and 885N tractors

1шт.

8

K921685

SPRING

- outer, used with 885, 885H, 885G and 885N tractors

1шт.

9

K921683

PIN

- used with 885, 885H, 885G and 885N tractors

1шт.

10

K921682

ROLLER

- used with 885, 885H, 885G and 885N tractors, no longer available

1шт.

11

K602843

SCREW

- special, pedal adjustment, 5/16 NC x 1-1/8 inch, used with 885, 885H, 885G and 885N tractors, no longer available

1шт.

B90396

HARDWARE

NUT - lock, 5/16 inch NC, used with 885, 885H, 885G and 885N tractors, no longer available

1шт.

12

K921681

CLUTCH

LEVER - used with 885, 885H, 885G and 885N tractors, no longer available

1шт.

13

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch, used with 885, 885H, 885G and 885N tractors (Replaces bolt K600404)

1шт.

492-11038

LOCK WASHER,3/8"

used with 885, 885H, 885G and 885N tractors 3/8"

1шт.

14

K928264

SHAFT

- cross, used with 885, 885H and 885G tractors

1шт.

14

K912050

CLUTCH

SHAFT - cross, used with 885N tractors, no longer available

1шт.

15

K905650

CLUTCH FORK

FORK - used with 885, 885H, 885G and 885N tractors

1шт.

126-15

WOODRUFF KEY,#8, 5/32" x 3/4"

Used with 885, 885H, 885G and 885N tractors #8, 5/32" x 3/4"

2шт.

16

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch, used with 885, 885H, 885G and 885N tractors (Replaces bolt K600404)

2шт.

492-11038

LOCK WASHER,3/8"

used with 885, 885H, 885G and 885N tractors 3/8"

2шт.

17

K921687

COIL SPRING

SPRING - used with 885, 885H, 885G and 885N tractors

1шт.

18

K900349

PIN

- pivot, clutch fork roller, used with 885, 885H, 885G and 885N tractors

2шт.

19

K620260

NEEDLE BEARING,Needle, 4.76mm ID x 8.73mm OD x 6.35mm W

BEARING - needle, used with 885, 885H, 885G and 885N tractors

2шт.

20

K900348

ROLLER,8.72mm ID x 14.29mm OD x 6.35mm L

- clutch fork, used with 885, 885H, 885G and 885N tractors

2шт.

21

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch, pedal stop, used with 885, 885H, 885G and 885N tractors (Replaces bolt K602908)

1шт.

425-146

JAM NUT,3/8" - 16, Gr 5

- hex jam, 3/8 inch NC, used with 885, 885H, 885G and 885N tractors (Replaces nut B90397)

1шт.

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 45 degree, 1/4-28 taper x 13/16 inch, cross shaft bearing, used with 885, 885H, 885G and 885N tractors

2шт.

22

K89362

SEAL

EXCLUDER - dirt, cross shaft bearing, used with 885N tractors, no longer available

1шт.

23

K950996

ROD

- push, slave cylinder, used with 885Q, 885QH and 885Sk tractors, no longer available

1шт.

24

K950997

SCREW

- adjusting, 1/2 inch NF, used with 885Q, 885QH and 885Sk tractors, no longer available

1шт.

425-158

JAM NUT,Jam, 1/2"-20, G5

Used with 885Q, 885QH and 885Sk tractors Jam, 1/2"-20, G5

1шт.

25

K951511

CLUTCH

FORK- clutch, used with 885Q, 885QH and 885Sk tractors, no longer available

1шт.

26

K621390

BUSHING

- fork, used with 885Q, 885QH and 885Sk tractors, no longer available

2шт.

27

K624952

SPRING

- fork return, used with 885Q, 885QH and 885Sk tractors, no longer available

1шт.

28

K916478

SPRING

ANCHOR - return spring, used with 885Q, 885QH and 885Sk tractors

1шт.

29

K900349

PIN

- fork, used with 885Q, 885QH and 885Sk tractors

2шт.

30

K620260

NEEDLE BEARING,Needle, 4.76mm ID x 8.73mm OD x 6.35mm W

BEARING - needle, used with 885Q, 885QH and 885Sk tractors

2шт.

31

K900348

ROLLER,8.72mm ID x 14.29mm OD x 6.35mm L

- used with 885Q, 885QH and 885Sk tractors

2шт.

32

K950998

SHAFT

- cross, used with 885Q, 885QH and 885Sk tractors, no longer available

1шт.

33

38-11628

LOCK PIN,1/4" x 1 3/4", Slotted

Pin, , used with 885Q, 885QH and 885Sk tractors 1/4" x 1 3/4", Slotted

1шт.

Выбрано товаров: 42
