Запчасти Case IH 885N (6-12) - CLUTCH RELEASE MECHANISM, HYDRAULIC COMPONENTS, 885LP, 885Q, 885QH AND 885SK TRACTORS (06) - POWER TRAIN

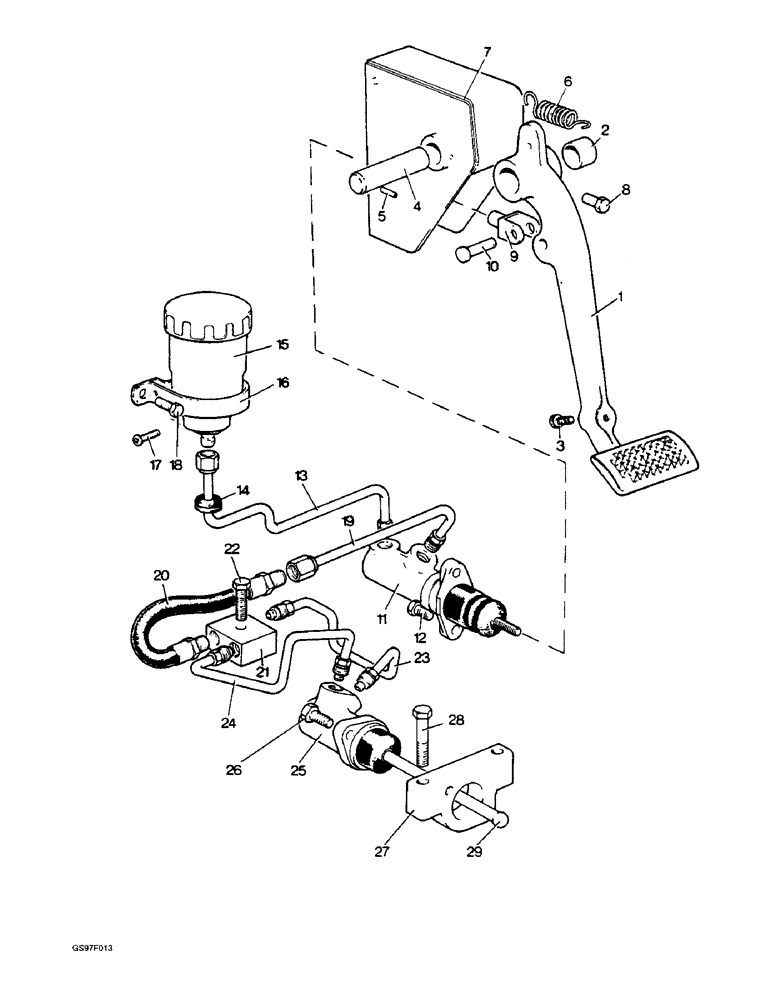

Схема запчастей Case IH 885N - (6-12) - CLUTCH RELEASE MECHANISM, HYDRAULIC COMPONENTS, 885LP, 885Q, 885QH AND 885SK TRACTORS (06) - POWER TRAIN
25
21
27
28
12
14
2
1
9
22
8
23
13
26
24
17
20
10
7
11
4
5
29
18
19
10
6
3
15
16

Артикул

Название

Примечание

Количество

1

K965159

CLUTCH

PEDAL - clutch, includes bushings, used with 885Q tractors with serial numbers prior to 11010049 and 885Sk tractors with serial numbers prior to 11007841, no longer available (Replaces pedal K954318)

1шт.

1

K965160

CLUTCH

PEDAL - clutch, includes bushings, used with 885Q tractors with serial numbers 11010049 through 11014909 and 885Sk tractors with serial numbers 11007841 through 11015524, no longer available

1шт.

1

K954947

PEDAL

- clutch, includes bushings, used with 885Q tractors with serial number 11014909 and after and 885Sk tractors with serial number 11015524 and after, no longer available

1шт.

2

K628754

BUSHING

- clutch

2шт.

3

K609206

SCREW

- pedal stop, 1/4 NC x 1 inch, used with 885Q tractors with serial numbers prior to 11014909 and 885Sk tractors with serial numbers prior to 11015524, no longer available

1шт.

4

K950569

PIN

- pivot, clutch pedal, no longer available

1шт.

5

K19552

GROOVED PIN,1/8" x 1 1/8", Type A

Pin, Grooved, , pivot pin to bracket 1/8" x 1 1/8", Type A

1шт.

6

K624947

SPRING

- pedal return

1шт.

7

K949098

SUPPORT

BRACKET - support, clutch pedal, used with 885Q tractors with serial numbers prior to 11010049 and 885Sk tractors with serial numbers prior to 11007841, no longer available

1шт.

7

K954831

SUPPORT

BRACKET - support, clutch pedal, used with 885Q tractors with serial number 11010049 and after and 885Sk tractors with serial number 11007841 and after, no longer available

1шт.

8

K602846

SCREW,5/16" - 18 x 5/8", Gr S

- hex, 5/16 NC x 5/8 inch, Serial Range: bracket-cab

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , bracket to cab (Replaces washer K19481) 5/16"

2шт.

9

K622205

FORK

- end, 5/16 inch NF

1шт.

10

K625954

PIN

- clevis, 5/16 x 1-3/16 inch, no longer available

1шт.

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), (Replaces pin K11934) 1/16" x 1/2"

1шт.

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF (Replaces nut K616981)

1шт.

11

K950544

CYLINDER,36.32mm Stroke

- master, Girling 73067017

1шт.

11

K949121

CYLINDER

- master, Girling 7307008, used with 885QH tractors, no longer available

1шт.

K620461

ADAPTER

- 3/8 - 7/16 inch NF, master cylinder outlet, used with 885QH tractors, no longer available

1шт.

K626447

WASHER

- copper, 3/8 inch, master cylinder outlet, used with 885QH tractors, no longer available

1шт.

12

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

- hex, 5/16 NC x 1-1/8 inch, cylinder to cab, used with 885Q tractors with serial numbers prior to 11014909 and 885Sk tractors with serial numbers prior to 11015524 (Replaces bolt K602844)

2шт.

K602858

SCREW

- hex, 5/16 NC x 3-3/4 inch, cylinder to cab, used with 885Q tractors with serial number 11014909 and after and 885Sk tractors with serial number 11015524 and after, no longer available

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , cylinder to cab (Replaces washer K19481) 5/16"

2шт.

B90396

HARDWARE

NUT - lock, 5/16 inch, cylinder to cab, used with 885Q tractors with serial number 11014909 and after and 885Sk tractors with serial number 11015524 and after, no longer available

1шт.

13

K951343

PIPE

- reservoir to master cylinder, used with 885Q tractors, no longer available

1шт.

13

K954505

PIPE

- reservoir to master cylinder, used with 885Sk and 885LP tractors, no longer available

1шт.

13

K953966

PIPE

- reservoir to master cylinder, used with 885QH tractors, no longer available

1шт.

14

K627748

GROMMET

- 7/8 inch, no longer available

1шт.

15

K951526

RESERVOIR

ASSEMBLY - with filler cap, Includes: Cap's and Cover's

1шт.

15

K949989

RESERVOIR

ASSEMBLY - complete, used with 885QH tractors, no longer available, Includes: Cap's and Cover's

1шт.

K964488

CAP

- filler, reservoir

1шт.

K964488

CAP

- filler, reservoir, used with 885QH tractors

1шт.

K964813

COVER

- filler cap, blue, no longer available

1шт.

K964814

COVER

- filler cap, black, used with 885QH tractors, no longer available

1шт.

16

K624873

CLIP

- reservoir to cab, 885Q tractors with serial numbers prior to 11014909 and 885Sk tractors with serial numbers prior to 11015524, no longer available

1шт.

16

K200671

SPRING

CLIP - reservoir to cab, 885Q tractors with serial number 11014909 and after and 885Sk tractors with serial number 11015524 and after, no longer available

1шт.

17

K614946

SCREW,Pan, #10 - 32 x 3/4"

- hex, No. 10 NF x 3/4 inch, reservoir to cab, 885Q tractors with serial numbers prior to 11014909 and 885Sk tractors with serial numbers, Serial Range: prior-11015524

1шт.

17

490-11010

SCREW,Cross Pan Hd, #10-32 x 5/8"

- machine, pan Phillips, No. 10 NF x 5/8 inch, reservoir to cab, 885Q tractors with serial number 11014909 and after and 885Sk tractors with serial number 11015524 and after (Replaces screw K614945)

1шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, , Reservoir to cab, 885Q tractors with S/N's prior to 11014909 and 885Sk tractors with S/N's prior to 11015524 #10

1шт.

225-14210

NUT,#10-32

Reservoir to cab, 885Q tractors with S/N prior to 11014909 and 885Sk tractors with S/N's prior to 11015524 #10-32

1шт.

K627320

BUSHING

SPACER - distance, reservoir to cab, 885Q tractors with serial number 11014909 and after and 885Sk tractors with serial number 11015524 and after, no longer available

2шт.

K626310

WASHER

- flat, 3/16 inch, reservoir to cab, 885Q tractors with serial number 11014909 and after and 885Sk tractors with serial number 11015524 and after, no longer available

2шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, , Reservoir to cab, 885Q tractors with S/N's 11014909 and after and 885Sk tractors with S/N 11015524 and after #10

2шт.

18

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SCREW - hex, 5/16 NC x 3/4 inch, reservoir to cab, 885Q tractors with serial numbers prior to 11014909 and 885Sk tractors with serial numbers prior to 11015524

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , reservoir to cab, 885Q tractors with serial numbers prior to 11014909 and 885Sk tractors with serial numbers prior to 11015524 5/16"

1шт.

19

K951524

PIPE

- master cylinder to flexible pipe, 885Q tractors with serial numbers prior to 11011837, no longer available

1шт.

19

K200138

PIPE

- master cylinder to flexible pipe, 885Q tractors with serial number 11011837 and after, no longer available

1шт.

19

K955392

CLUTCH

PIPE - master cylinder to flexible pipe, used with 885Sk tractors, no longer available

1шт.

19

K201909

CLUTCH

PIPE - master cylinder to flexible pipe, used with 885LP tractors, no longer available

1шт.

19

K954088

PIPE

- master cylinder to flexible pipe, used with 885QH tractors, no longer available

1шт.

K621728

PIPE

CLIP - pipe to cab, used with 885Sk and 885LP tractors, no longer available

1шт.

K603925

SCREW,Pan, 1/4" - 20 x 5/8"

- hex, 1/4 NC x 5/8 inch, pipe to cab, used with 885Sk and 885LP tractors, no longer available

1шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, pipe to cab, used with 885Sk and 885LP tractors

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Pipe to cab, used with 885Sk and 885LP tractors 1/4"

1шт.

20

K952512

PIPE

- flexible, M12 x 9 inch (230 mm) long, Girling 73046003, used with 885Q and 885Sk tractors, no longer available

1шт.

20

K200143

PIPE

- flexible, M12 x 9 inch (230 mm) long, used with 885Sk and 885LP tractors, no longer available

1шт.

20

K200157

HOSE

PIPE - flexible, 7/16 NF x 11 inch (279 mm) long, used with 885QH tractors, no longer available

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer K626345) 1/2"

2шт.

493-21046

LOCK WASHER,Int Tooth, 7/16"

WASHER - internal tooth lock, 7/16 inch, used with 885QH tractors

1шт.

K14674

WASHER

- copper, 7/16 inch, used with 885QH tractors

1шт.

K625100

NUT - lock, M12

1шт.

425-157

JAM NUT,Jam, 7/16"-20, G5

used with 885QH tractors Jam, 7/16"-20, G5

1шт.

21

K652092

BLOCK

- connecting, no longer available

1шт.

21

K953570

BLOCK

- connecting, used with 885QH tractors, no longer available

1шт.

K964534

SCREW,M12 x 1

- bleed

1шт.

22

K602745

SCREW

- hex, 1/4 NC x 1-1/4 inch, connecting block to clutch housing, no longer available

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Connecting block to clutch housing 1/4"

1шт.

K953550

COVER

PLATE - cover, clutch housing, no longer available

1шт.

23

K952606

PIPE

- connecting block to slave cylinder, used with 885Q and 885Sk tractors, no longer available

1шт.

23

K201905

PIPE

- connecting block to slave cylinder, used with 885LP tractors, no longer available

1шт.

23

K954113

PIPE

- block to slave cylinder, used with 885QH tractors, no longer available

1шт.

K626443

WASHER

- copper, 12mm

1шт.

24

K952605

PIPE

- slave cylinder bleed, used with 885Q and 885Sk tractors, no longer available

1шт.

24

K201908

PIPE

- slave cylinder bleed, used with 885LP tractors, no longer available

1шт.

24

K954112

PIPE

- slave cylinder bleed, used with 885QH tractors, no longer available

1шт.

25

K951527

CYLINDER

- slave, Girling 73067022, no longer available

1шт.

25

K950235

CYLINDER

- slave, Girling 3010224, used with 885QH tractor, no longer available

1шт.

K964519

SCREW

- bleed, 3/8 inch NF, used with 885QH tractor, no longer available

1шт.

26

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

- hex, 5/16 NC x 1-1/8 inch, slave cylinder to bracket (Replaces bolt K602844)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , slave cylinder to bracket 5/16"

2шт.

27

K951638

BRACKET

- mounting, slave cylinder, no longer available

1шт.

27

K951416

BRACKET

- mounting, slave cylinder, used with 885QH tractor, no longer available

1шт.

28

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Bracket to clutch housing Hex, 3/8"-16 x 1 3/4", G5

2шт.

492-11038

LOCK WASHER,3/8"

bracket to clutch housing 3/8"

2шт.

K950996

ROD

- push, slave cylinder, no longer available

1шт.

K964572

SEAL KIT

- seal, mineral oil, master cylinder

1шт.

K964575

REPAIR KIT

KIT - seal, slave cylinder, no longer available

1шт.

K964780

SEAL

KIT - seal, vegetable oil, master cylinder, used with 885QH tractor, no longer available

1шт.

K964778

SEAL

KIT - seal, vegetable oil, slave cylinder, used with 885QH tractor, no longer available

1шт.

Выбрано товаров: 89
