Запчасти Case IH 885N (6-08) - BELT PULLEY, TRACTORS WITH MULTI-SPEED PTO (06) - POWER TRAIN

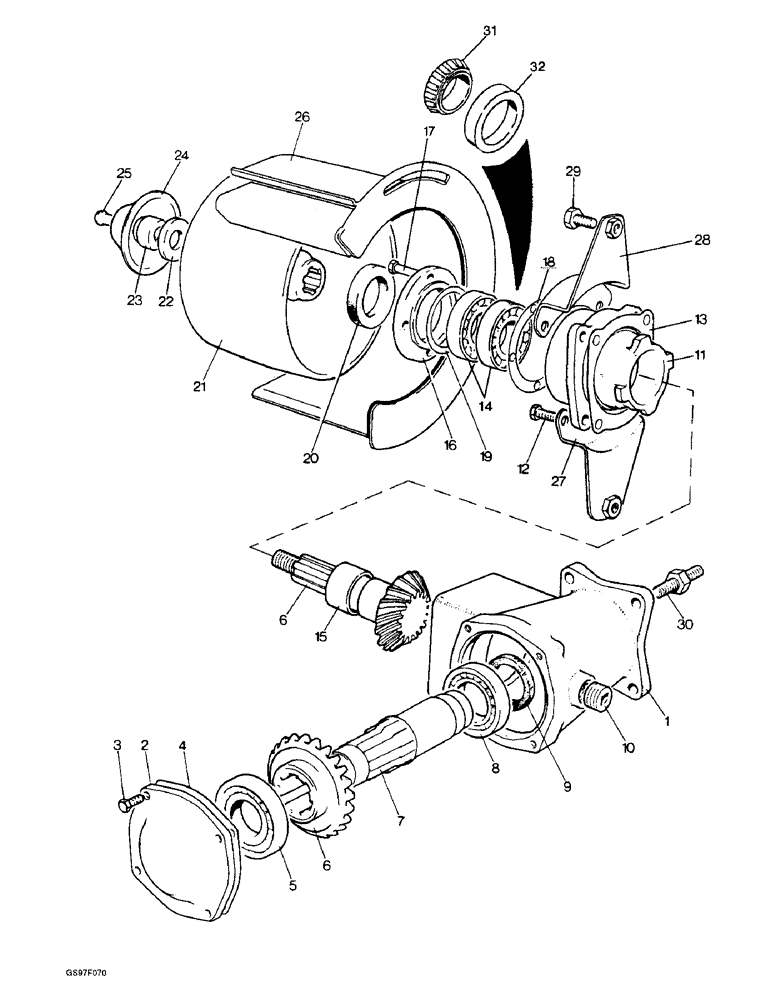

Схема запчастей Case IH 885N - (6-08) - BELT PULLEY, TRACTORS WITH MULTI-SPEED PTO (06) - POWER TRAIN
29
10
18
30
4
26
7
3
20
6
22
16
27
15
25
2
19
8
9
6
13
21
17
12
31
14
23
28
11
5
32
24
1

Артикул

Название

Примечание

Количество

K932269

PULLEY

ASSEMBLY - belt, no longer available as an assembly, order components, Includes: Ref. 1 - 32

1шт.

1

K923299

HOUSING

- belt pulley, no longer available

1шт.

2

K923300

COVER

- end

1шт.

3

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt K602904)

4шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer K19482) 3/8"

4шт.

4

K923331

SHIM

- 0.007 inch, no longer available

1шт.

4

K923332

SHIM

- 0.005 inch

1шт.

4

K923333

SHIM

- 0.003 inch

1шт.

5

K19081

BALL BEARING

BEARING - ball

1шт.

6

K964732

WHEEL

PINION - bevel wheel, tractor serial number 11008037 and after, no longer available

1шт.

6

K962486

WHEEL

PINION - bevel wheel, tractor serial numbers prior to 11008037, no longer available

1шт.

7

K923302

SHAFT ASSY.

DRIVESHAFT - belt pulley, no longer available

1шт.

8

ST202

BEARING, BALL,45mm ID x 85mm OD x 19mm W

BEARING - ball (Replaces bearing K19047)

1шт.

9

K623423

SEAL

- oil, 2-1/2 x 1-3/4 x 3/8 inch, no longer available

1шт.

10

K14518

PLUG

- belt pulley, 3/4 inch BSP

1шт.

11

K952674

HOUSING

- bearing, tractor serial number 11008037 and after, no longer available

1шт.

11

K923306

HOUSING

- bearing, tractor serial numbers prior to 11008037, no longer available

1шт.

12

413-722

BOLT,Hex, 7/16" - 14 x 1-3/8", Gr 5

- hex, 7/16 NC x 1-3/8 inch (Replaces bolt K603006)

4шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, (Replaces washer K19483) 7/16"

4шт.

13

K89203

SHIM,.007" Thk

1шт.

13

K89202

SHIM,.005" Thk

No longer available .005" Thk

1шт.

13

K89201

SHIM,.003" Thk

1шт.

14

K620046

BEARING

- tapered roller, tractor serial number 11008037 and after, no longer available, order cup 618024R1 and bearing 618023R91, Ref. 31 and 32

2шт.

14

K19165

BALL

BEARING - ball, tractor serial numbers, Serial Range: prior-11008037

1шт.

14

K19055

ROLLER

BEARING - roller, tractor serial numbers, Serial Range: prior-11008037

1шт.

15

K19166

NEEDLE

BEARING - needle roller

1шт.

16

K948436

RETAINER

- bearing, tractor serial number 11008037 and after, no longer available

1шт.

16

K926332

RETAINER

- bearing, tractor serial numbers prior to 11008037, no longer available

1шт.

17

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch (Replaces bolt K602805)

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer K19481) 5/16"

4шт.

18

K89206

JOINT

GASKET - belt pulley, no longer available

1шт.

19

K948435

SHIM

- 0.007 inch, tractor serial number 11008037 and after, no longer available

1шт.

19

K948434

SHIM

- 0.005 inch, tractor serial number 11008037 and after, no longer available

1шт.

19

K948433

SHIM

- 0.003 inch, tractor serial number 11008037 and after

1шт.

19

K89208

SHIM,.003" Thk

Tractor S/N's prior to 11008037, No longer available .003" Thk

1шт.

19

K89209

SHIM,.005" Thk

Tractor S/N's prior to 11008037, No longer available .005" Thk

1шт.

19

K89210

SHIM,.007" Thk

Tractor S/N's prior to 11008037 .007" Thk

1шт.

20

K623436

OIL SEAL

- oil, 2-3/4 x 1-15/16 x 3/8 inch

1шт.

21

K914944

BELT

PULLEY - belt, no longer available

1шт.

22

K19493

WASHER

- special, 3/4 inch, no longer available

1шт.

23

K617317

NUT

- Nyloc, 3/4 inch NF, no longer available

1шт.

24

K912778

COVER

- pulley nut, no longer available

1шт.

25

K603925

SCREW,Pan, 1/4" - 20 x 5/8"

- hex, 1/4 NC x 5/8 inch , no longer available

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer K19480) 1/4"

1шт.

26

K952742

BELT

GUARD - belt pulley, no longer available

1шт.

27

K907856

SUPPORT

BRACKET - support, pulley guard, no longer available

1шт.

28

K952609

SUPPORT

BRACKET - support, guard, no longer available

1шт.

29

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Guard to brackets (Replaces bolt K602902) Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

492-11038

LOCK WASHER,3/8"

guard to brackets (Replaces washer K19482) 3/8"

2шт.

K19772

WASHER - flat, 3/8 inch, guard to brackets, no longer available

2шт.

30

K907546

STUD

- special, 7/17 inch NC, housing to PTO unit

4шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, , Housing to PTO unit (Replaces washer K626344) 7/16"

4шт.

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch, Housing to PTO unit (Replaces nuts K607046 and B90348)

4шт.

31

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING - tapered roller

2шт.

32

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Tapered roller

2шт.
