Запчасти Case IH 885N (6-02) - POWER TAKEOFF CONTROLS (06) - POWER TRAIN

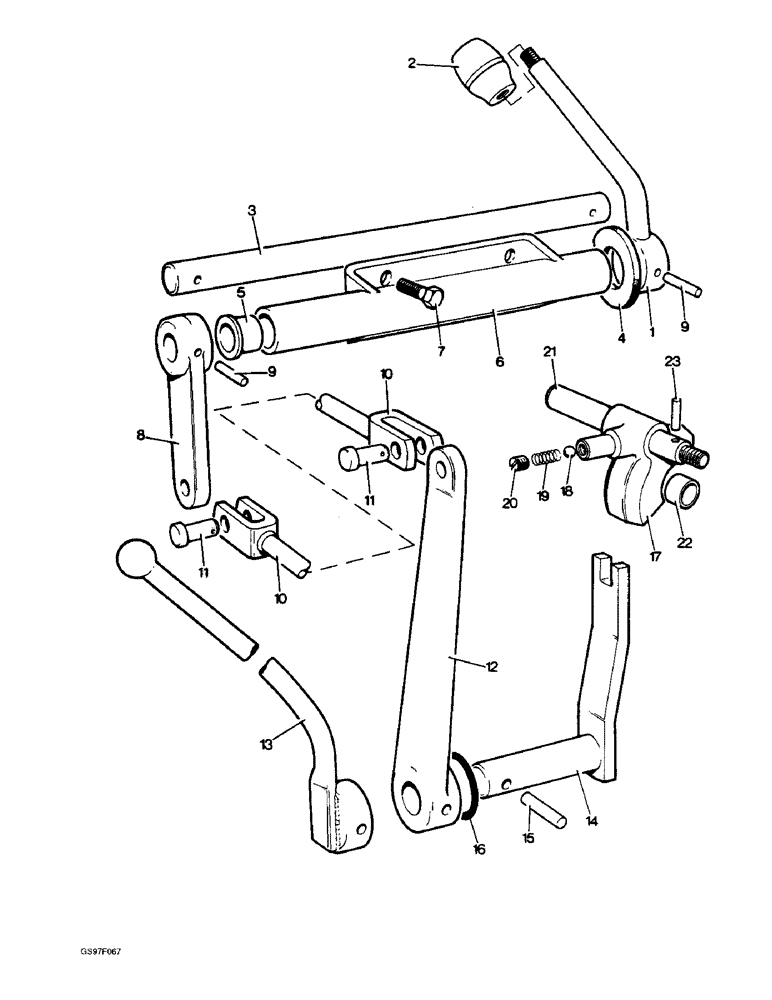

Схема запчастей Case IH 885N - (6-02) - POWER TAKEOFF CONTROLS (06) - POWER TRAIN
20
13
21
4
5
17
12
6
22
8
14
16
19
3
11
11
18
15
10
9
7
9
1
10
2
23

Артикул

Название

Примечание

Количество

1

K951627

LEVER

- hand, used with 885Q, 885QH, 885Sk and 885LP tractors, no longer available

1шт.

2

K950493

KNOB

- hand lever, used with 885Q, 885QH, 885Sk and 885LP tractors

1шт.

3

K951263

SHAFT

- cross, used with 885Q, 885QH and 885Sk tractors, no longer available

1шт.

3

K202082

SHAFT

- cross, used with 885LP tractors, no longer available

1шт.

K627325

BUSHING

SPACER - distance, used with 885LP tractors, no longer available

1шт.

4

K952800

SEAL

- rubber, used with 885Q, 885QH, 885Sk and 885LP tractors

1шт.

5

K628757

BUSHING

- plastic, used with 885Q, 885QH, 885Sk and 885LP tractors

2шт.

6

K951640

SUPPORT

BRACKET - support, cross shaft, used with 885Q, 885QH, 885Sk and 885LP tractors, no longer available

1шт.

7

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

Used with 885Q, 885QH, 885Sk and 885LP tractors (Replaces bolt K602983) Hex, 3/8"-16 x 7/8", G5, Full Thd

3шт.

492-11038

LOCK WASHER,3/8"

used with 885Q, 885QH, 885Sk and 885LP tractors (Replaces washer K19482) 3/8"

3шт.

425-106

NUT,3/8"-16, Cl 5

Used with 885Q, 885QH, 885Sk and 885LP tractors (Replaces nut K607045) 3/8"-16, G5

3шт.

8

K951267

SHAFT

LEVER - cross shaft, used with 885Q, 885QH, 885Sk and 885LP tractors, no longer available

1шт.

9

K623746

PIN

- 3/16 x 1-1/4 inch, used with 885Q, 885QH, 885Sk and 885LP tractors, no longer available

2шт.

10

K951268

ROD

ASSEMBLY - operating, used with 885Q, 885QH and 885Sk tractors, Includes: Rod's and Nut's

1шт.

10

K202501

ROD

ASSEMBLY - operating, used with 885LP tractors, no longer available, Includes: Rod's and Nut's

1шт.

K202498

ROD

- long, used with 885LP tractors, no longer available

1шт.

K202500

ROD

- short, used with 885LP tractors, no longer available

1шт.

K950846

NUT

- adjusting, used with 885LP tractors

1шт.

K692165

NUT

- lock, used with 885LP tractors (Replaces nut K617032)

1шт.

11

K14227

PIN

- clevis, used with 885Q, 885QH, 885Sk and 885LP tractors, no longer available

2шт.

132-380

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), , Used with 885Q, 885QH, 885Sk and 885LP tractors (Replaces pin K623607) 3/32" x 3/4"

2шт.

12

K951270

LEVER

- operating, used with 885Q, 885QH, 885Sk and 885LP tractors, no longer available

1шт.

13

K943716

LEVER

- operating, used with 885, 885H and 885G tractors (Replaces lever K916574)

1шт.

13

K200140

LEVER

- operating, used with 885N tractor (Replaces lever K942793)

1шт.

14

K943717

SELECTOR

LEVER - selector, includes shaft, no longer available

1шт.

15

435-5824

GROOVED PIN,1/4" x 1 1/2", Type E

PIN, GROOVED, (Replaces pin K623726) 1/4" x 1 1/2", Type E

1шт.

16

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

(Replaces O-ring K24555) -116, 90 Duro, .737" ID x .103" Thk

1шт.

17

K906701

SELECTOR

FORK - selector

1шт.

18

211-1008

BALL,1/4" Dia

- chrome alloy steel, 1/4 inch, grade 24 (Replaces ball K17063)

1шт.

19

K24831

SPRING

- controls

1шт.

20

81-3315

SET SCREW,5/16"-18 x 5/16", Slotted

PLUG - 5/16 inch NC

1шт.

21

K942469

SELECTOR

ROD - selector

1шт.

22

K921603

BUSHING

TUBE - distance, single-speed units, used with 885, 885H and 885N tractors

1шт.

23

K906700

PIN

- retaining

1шт.

Выбрано товаров: 34
