Запчасти Case IH 885N (5-06) - HYDROSTATIC STEERING SYSTEM, 885Q, 885QH, 885SK AND 885LP TRACTORS (05) - STEERING

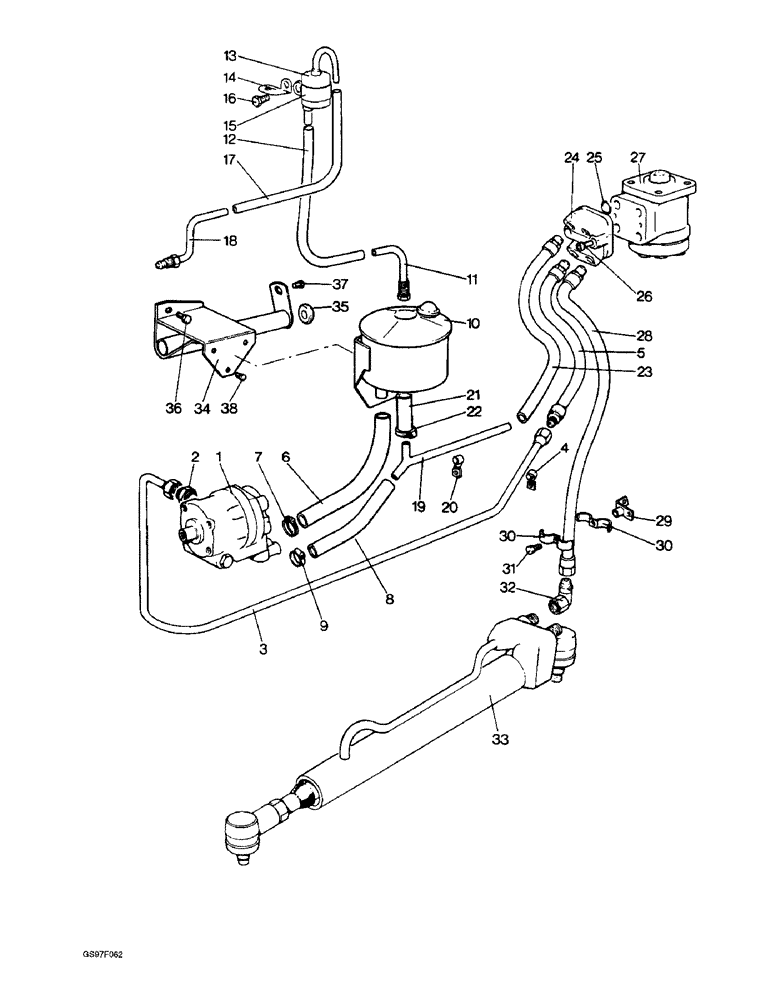

Схема запчастей Case IH 885N - (5-06) - HYDROSTATIC STEERING SYSTEM, 885Q, 885QH, 885SK AND 885LP TRACTORS (05) - STEERING
33
3
18
16
4
26
17
12
5
2
24
14
8
30
23
28
36
20
27
1
9
15
13
7
6
30
37
19
34
22
25
31
21
35
38
10
29
32
11

Артикул

Название

Примечание

Количество

1

K944379

PUMP

ASSEMBLY - steering, parts list Fig. 5-10

1шт.

2

K626059

ADAPTER

ADAPTOR - 3/4 - 5/8 inch NF, pump outlet

1шт.

K623515

SEAL,16.38mm ID x 25.53mm OD x 3.2mm Thk

WASHER - sealing, 5/8 inch

1шт.

3

K951424

PIPE

- pump outlet, no longer available

1шт.

4

K621717

CLIP

-, Serial Range: pipe-starter

1шт.

K926858

TUBE,0.47" ID x 0.625" OD x 1" L

SLEEVE - nylon, pipe to starter

1шт.

5

K951503

HOSE

PIPE - flexible, 3/4 NF x 16 inch (407 mm) long, used with 885Q and 885QH tractors, no longer available

1шт.

5

K955668

HOSE

PIPE - flexible, 3/4 NF x 16 inch (407 mm) long, armoured, used with 885Sk and 885LP tractors, no longer available (Replaces pipe K955519)

1шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk (Replaces O-ring K623589)

4шт.

6

K913632

HOSE

- 5/8 x 12 inch (305 mm) long, pump inlet

1шт.

7

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP, HOSE, , Adjustable (Replaces clamp K622024) #10, 0.56/1.06 Type F Worm

2шт.

8

K951430

HOSE

- 7/8 x 9-1/2 inch (241 mm) long, pump by-pass, no longer available

1шт.

9

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP, HOSE, , Adjustable (Replaces clamp K14679) #10, 0.56/1.06 Type F Worm

2шт.

10

K943592

RESERVOIR

ASSEMBLY - steering, parts list Fig. 5-10

1шт.

11

K928171

BREATHER

ELBOW - 1/2 inch NF

1шт.

K15735

WASHER

- 1/2 inch, special

2шт.

425-158

JAM NUT,Jam, 1/2"-20, G5

(Replaces nut K617054) Jam, 1/2"-20, G5

1шт.

12

K952630

BREATHER

TUBE - plastic, 3/8 x 23 inch, no longer available

1шт.

13

K940377

SEPARATOR

- oil

1шт.

14

K952510

SUPPORT

BRACKET - support, no longer available

1шт.

K929320

CLIP

STRIP - rubber

1шт.

15

K913053

WASHER

CLAMP - oil separator, no longer available

1шт.

16

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch (Replaces bolt K602802)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer K19481) 5/16"

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut K607001)

1шт.

17

K952629

BREATHER

TUBE - plastic, 3/8 x 19 inch (483 mm) long, separator to air cleaner, no longer available

1шт.

18

K952628

FITTING

PIPE - connecting, separator to air cleaner, no longer available

1шт.

19

K955690

PIPE

- oil return, no longer available (Replaces pipe K951425)

1шт.

K926858

TUBE,0.47" ID x 0.625" OD x 1" L

SLEEVE - nylon, pipe to engine, used with 885Q and 885QH tractors with serial numbers prior to 11007594

1шт.

20

K955694

CLIP

- pipe to engine, tractor serial number 11007594 and after, no longer available

1шт.

20

K621716

CLIP - pipe to engine, 885Q and 885QH tractors with serial numbers prior to 11007594, no longer available

1шт.

21

K926892

PIPE

HOSE - 1/2 x 2-1/2 inch (64 mm) long, no longer available

1шт.

Order one of the following hoses and cut to required length: S118388X, 168 inch (4267 mm) long; K949342, 9 inch (229 mm) long; L55952, 16 inch (407 mm) long; D64931, 19-1/2 inch (495 mm) long; D56379, 21 inch (533 mm) long; D64932, 21-1/2 inch (546 mm) long; D64933, 23-1/2 inch (597 mm) long; D65486, 26 inch (660 mm) long; D63994, 32 inch (813 mm) long or H371856, 36 inch (914 mm) long.

1шт.

22

K622024

CLAMP

CLIP - hose, 9/16 inch (Replaces clip K14679)

3шт.

23

K955691

HOSE

PIPE - flexible, 3/4 inch NF x 25 inch (635 mm) long, used with 885Q and 885QH tractors with serial number 11007594 and after, no longer available

1шт.

23

K951502

HOSE

PIPE - flexible, 3/4 inch NF x 17 inch (432 mm) long, armoured, used with 885Q and 885QH tractors with serial numbers prior to 11007594, no longer available

1шт.

23

K955886

HOSE

PIPE - flexible, 3/4 inch NF x 25 inch (635 mm) long, armoured, used with 885Sk and 885LP tractors, no longer available

1шт.

24

K951452

FITTING

BLOCK - connecting, pipes to steering valve, no longer available

1шт.

25

238-6118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

Block to valve (Replaces O-ring K15028) -118, 90 Duro, .862" ID x .103" Thk

4шт.

26

K624682

SCREW

- M10 x 25 mm, no longer available

2шт.

27

K946083

VALVE

- steering, Orbitrol, type OSP 125, no longer available, order valve K207419 and adapter 218-5066

1шт.

27

K207419

VALVE

- steering, Orbitrol

1шт.

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., straight, 7/8-14 flare x 3/4-16 inch O-ring boss, Incl. O-ring

1шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

28

K954720

HOSE

PIPE - flexible, 3/4 NF x 36 inch (914 mm) long, used with 885Q, 885QH and 885Sk tractors, no longer available (Replaces pipe K951501)

2шт.

28

K956787

HOSE

PIPE - flexible, 3/4 NF x 21-3/4 inch (552 mm) long, used with 885LP tractors, no longer available

2шт.

29

K950969

BRACKET

- pipes to cab, used with 885Q and 885QH tractors, no longer available

1шт.

30

K950972

CLAMP

CLIP - pipes to cab, used with 885Q and 885QH tractors, no longer available

2шт.

30

K200192

CLAMP

- pipes to cab, used with 885Sk and 885LP tractors, no longer available

1шт.

31

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Used with 885Q and 885QH tractors (Replaces bolt K602982) Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

492-11038

LOCK WASHER,3/8"

used with 885Q and 885QH tractors (Replaces washer K19482) 3/8"

1шт.

31

K600154

BOLT

- 1/4 inch NC x 1-3/4 inch, used with 885Sk and 885LP tractors

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Used with 885Sk and 885LP tractors (Replaces washer K626341) 1/4"

1шт.

32

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel flare (Replaces elbow K622115)

2шт.

33

K945702

CYLINDER

RAM ASSEMBLY - steering, parts list Fig. 5-12

1шт.

34

K929980

BRACKET

- support, reservoir

1шт.

35

K622702

GROMMET - bracket

2шт.

36

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Bracket to cylinder block (Replaces setscrew K602982) Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

492-11038

LOCK WASHER,3/8"

bracket to cylinder block (Replaces washer K19482) 3/8"

1шт.

K19472

WASHER

- 3/8 inch, bracket to cylinder block

1шт.

37

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch (Replaces bolt K602734)

1шт.

K626662

WASHER

- flat, 1/4 inch (Replaces washer K19470)

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer K19480) 1/4"

1шт.

38

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch (Replaces bolt K602701)

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer K19480) 1/4"

3шт.

Выбрано товаров: 65
