Запчасти Case IH 885N (4-30) - ELECTRICAL CLIPS AND CONNECTORS, 885, 885G, 885Q AND 885SK TRACTORS (04) - ELECTRICAL SYSTEMS

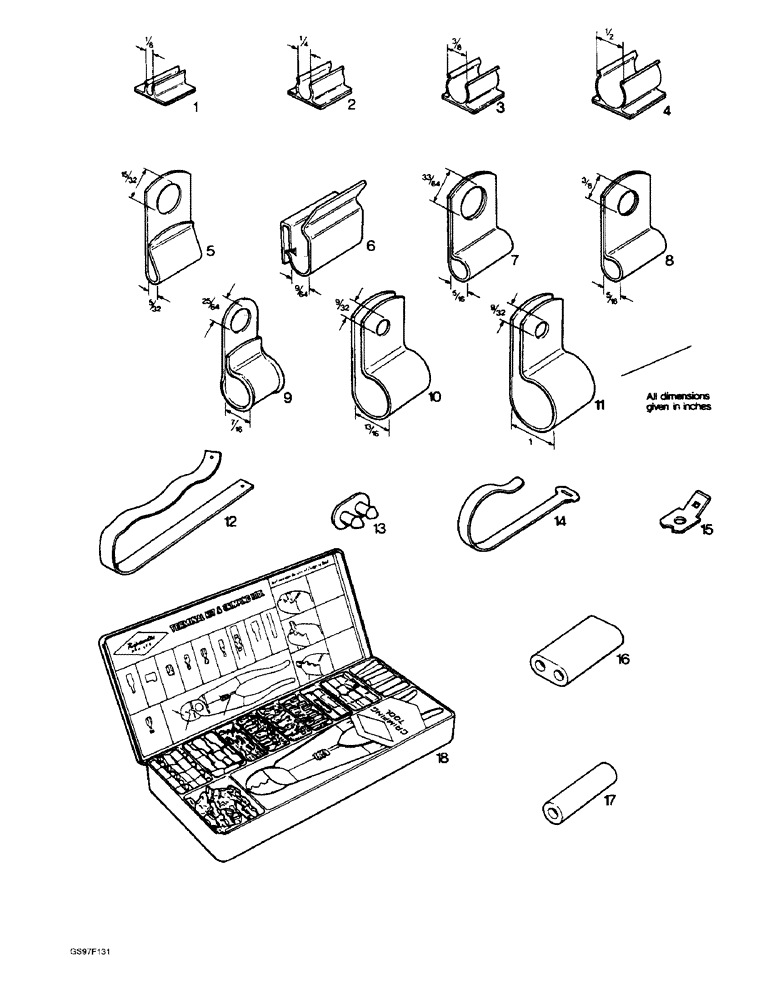

Схема запчастей Case IH 885N - (4-30) - ELECTRICAL CLIPS AND CONNECTORS, 885, 885G, 885Q AND 885SK TRACTORS (04) - ELECTRICAL SYSTEMS
12
15
16
4
10
7
3
2
5
6
14
17
18
13
9
11
8
1

Артикул

Название

Примечание

Количество

1

K625005

CLIP

KLIP - Kwik, 1/8 inch, no longer available

1шт.

2

K625006

CLIP

KLIP - Kwik, 1/4 inch, no longer available

1шт.

3

K625003

CLIP

KLIP - Kwik, 3/8 inch

1шт.

4

K623004

KLIP - Kwik, 1/2 inch, no longer available

1шт.

5

K621665

CLIP

- 5/32 x 15/32 inch, no longer available

1шт.

6

K903822

WASHER

CLIP - 9/64 inch, no longer available

1шт.

7

K621633

CABLE

CLIP - 5/16 x 33/64 inch

1шт.

8

K691989

CLIP

- 5/16 x 9/32 inch, no longer available

1шт.

9

515-23111

CLAMP,7/16", Insul, 3/8" Bolt

- P-type, 7/16 inch ID (Replaces clamp K15518)

1шт.

10

K621709

CLIP

- 13/16 x 9/32 inch, no longer available

1шт.

11

K621675

CLIP

- 1 x 9/32 inch, no longer available

1шт.

12

K692034

STRAP

- electrical, no longer available

1шт.

13

K692035

LINK

- electrical, no longer available

1шт.

14

K10518

BUCKLE

CLIP - buckle

1шт.

15

K925268

BLADE

CONNECTOR - blade, 25 amp

1шт.

16

705896R1

CONNECTOR, ELEC

CONNECTOR - double (Replaces connector K86230)

1шт.

17

K67916

ELEC CONNECTOR

CONNECTOR - single

1шт.

18

K964628

BLOCK

KIT - terminal, crimping tool and a selection of connectors

1шт.

Выбрано товаров: 18
