Запчасти Case IH 885N (4-18) - LAMPS, 885LP TRACTORS (04) - ELECTRICAL SYSTEMS

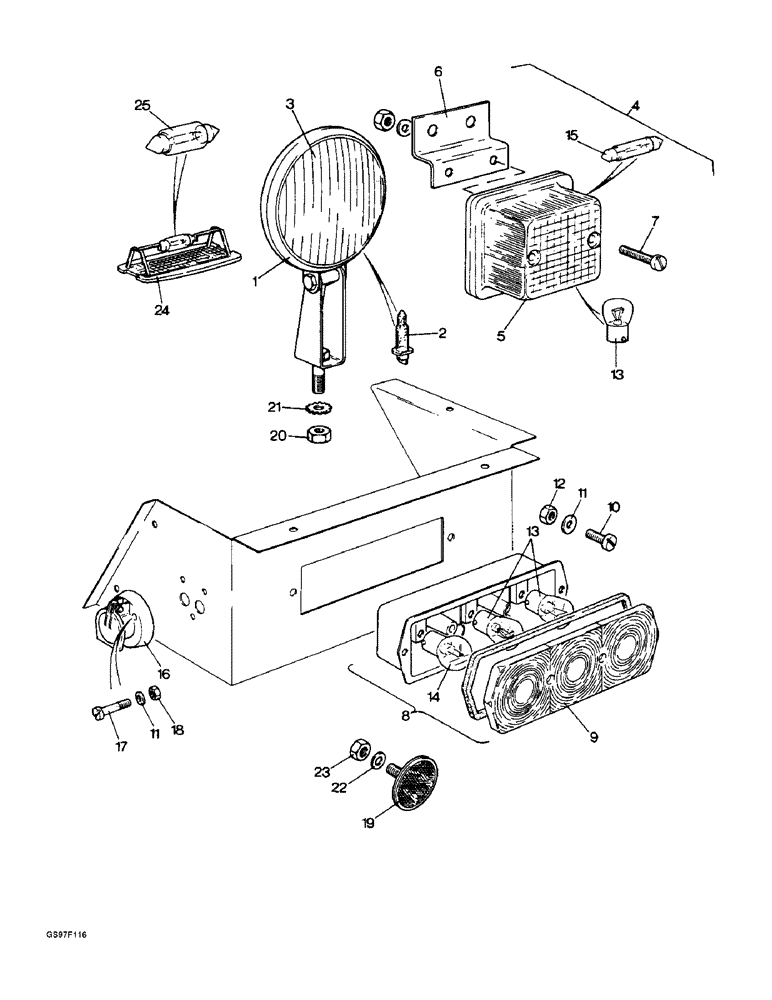

Схема запчастей Case IH 885N - (4-18) - LAMPS, 885LP TRACTORS (04) - ELECTRICAL SYSTEMS
10
7
24
25
16
13
23
22
14
17
11
2
18
11
21
13
8
19
4
9
1
5
3
20
6
12
15

Артикул

Название

Примечание

Количество

1

K965661

LAMP

ASSEMBLY - hood, rear, Sekura 941.055, no longer available, Includes: Ref. 2 and 3

1шт.

2

K965610

BULB

- iodine, Sekura 942.020

1шт.

3

K965606

LENS

- Sekura 941.054, no longer available

1шт.

4

K965602

LAMP ASSEMBLY - two chamber, Sekura 941.020, no longer available, order lamp 3121089R91, Ref. 26, Includes: Ref. 5 - 7

1шт.

5

K965691

LENS

- Sekura 941.022

1шт.

6

K260093

BRACKET

- Sekura 20.323, no longer available

1шт.

7

K965564

SCREW

- self-tapping, Sekura 916.213, no longer available

2шт.

8

K965604

INTERIOR LIGHT

LAMP ASSEMBLY - stop/tail/flasher, Sekura 941.046, no longer available, Includes: Ref. 9 - 12

1шт.

9

K965605

LENS

- Sekura 941.048, no longer available

1шт.

10

K965526

SCREW

- M4 x 16 mm, Sekura 900.043, no longer available

4шт.

11

892-11005

LOCK WASHER,M5

WASHER, LOCK, (Replaces washer K651846) M5

4шт.

12

K651642

NUT - M4, Sekura 910.040, no longer available

4шт.

13

K260094

BULB

- 12 volt, 21 watt, Sekura 942.006, no longer available

3шт.

14

K965609

BULB

- 12 volt, 5 watt, Sekura 942.010, no longer available

1шт.

15

K965607

BULB

- 12 volt, 5 watt, Sekura 942.004, no longer available

1шт.

16

K965613

SOCKET/RECEPTACLE

PLUG - trailer, Sekura 945.018, no longer available

1шт.

17

K260095

CYLINDER

SCREW - hex, M5 x 30 mm, Sekura 900.056, no longer available

3шт.

18

K965543

NUT

- hex, M5, Sekura 910.050, no longer available

3шт.

19

K260096

REFLECTOR

- Sekura 945.605, no longer available

1шт.

20

K965545

NUT

- hex, M10, Sekura 910.100, no longer available

1шт.

21

K965558

WASHER

- lock, 1/2 inch, Sekura 913.112, no longer available

1шт.

22

K965549

WASHER

- flat, Sekura 912.051, no longer available

1шт.

23

K965543

NUT

- hex, Sekura 910.050, no longer available

1шт.

24

K965603

INTERIOR LIGHT

LAMP - interior, Sekura 941.031, no longer available

1шт.

25

K965609

BULB

- interior lamp, Sekura 942.010, no longer available

1шт.

26

3121089R91

LIGHT

LAMP - flash position, not shown

1шт.

Выбрано товаров: 26
