Запчасти Case IH 885N (2-20) - SERVICE KITS (02) - ENGINE

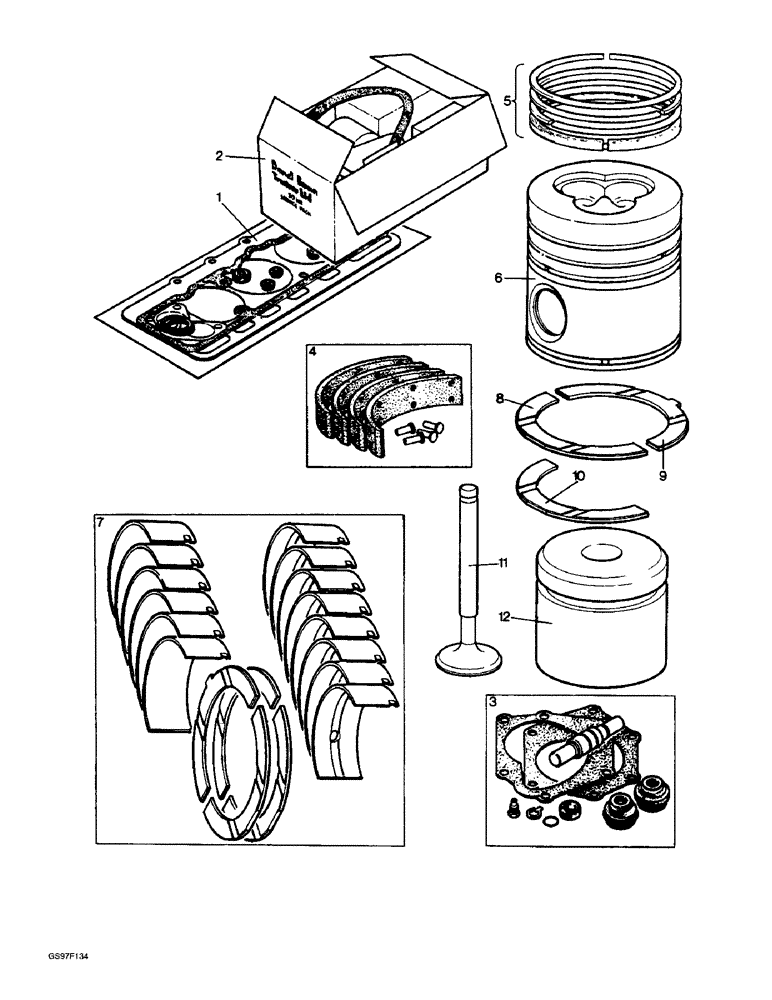

Схема запчастей Case IH 885N - (2-20) - SERVICE KITS (02) - ENGINE
2
6
4
3
5
12
7
1
11
9
8
10

Артикул

Название

Примечание

Количество

1

K262764

GASKET KIT

KIT - engine gasket (Replaces kit K964877)

1шт.

1

K964876

KIT, ENGINE TOP GASK

KIT - gasket, decarbonizing, no longer available

1шт.

2

K963475

KIT

- 50-hour service, no longer available

1шт.

3

K961770

KIT

- water pump repair

1шт.

4

K262703

KIT

LINING - brake, with rivet pack (Replaces lining K960595)

1шт.

5

K261069

SET OF RINGS

KIT - oil control ring, standard bore (Replaces pack K964731)

3шт.

5

K261070

PISTON RING SET

KIT - oil control ring, 0.020 inch oversize (Replaces pack K964730)

3шт.

6

K949719

PISTON

ASSEMBLY - complete, 0.020 inch oversize, Includes: Kit and Ring's

3шт.

K261070

PISTON RING SET

KIT - piston ring, Includes: Ring's

1шт.

K943885

RING, PISTON

RING - piston, No. 1 compression

1шт.

K943886

RING, PISTON

RING - piston, No. 2 and 3 compression, order kit

2шт.

K206961

RING, PISTON

RING - piston, scraper (Replaces ring K917412)

1шт.

7

K962935

BUSHING

KIT - main and large-end bearing, standard size, no longer available as an assembly, order components, Includes: Bearing's and Washer's

1шт.

K928540

HALF-BEARING, CRANKS

BEARING - main, two halves

8шт.

K207436

HALF-BEARING, CRANKS

BEARING - large-end, two halves (Replaces bearing K911904)

6шт.

K928542

SET

WASHER - thrust, upper

2шт.

K928543

SET

WASHER - thrust, lower

2шт.

7

K962936

BEARING

KIT - main and large-end bearing, 0.010 inch undersize, no longer available as an assembly, order components, Includes: Bearing's

1шт.

K928557

BEARING LINER

BEARING - main, two halves

8шт.

K207497

HALF-BEARING, CRANKS

BEARING - large-end, two halves (Replaces bearing K912638)

6шт.

7

K962937

CRANKSHAFT BEARING

KIT - main and large-end bearing, 0.020 inch undersize, no longer available as an assembly, order components, Includes: Bearing's

1шт.

K928558

HALF-BEARING, CRANKS

BEARING - main, two halves

8шт.

K207498

HALF-BEARING, CRANKS

BEARING - large-end, two halves (Replaces bearing K912639)

6шт.

7

K962938

BEARING SET

KIT- main and large-end bearing, 0.030 inch undersize, no longer available as an assembly, order components, Includes: Bearing's

1шт.

K928559

HALF-BEARING, CRANKS

BEARING - main, two halves

8шт.

K913941

HALF-BEARING, CRANKS

BEARING - large-end, two halves

6шт.

8

K928542

SET

WASHER - thrust, upper, standard size

2шт.

8

K928560

THRUST WASHER

WASHER - thrust, upper, 0.005 inch oversize

2шт.

9

K928543

SET

WASHER - thrust, lower, standard size

2шт.

9

K928561

WASHER

- thrust, lower, 0.005 inch oversize

2шт.

10

K928562

WASHER, THRUST

WASHER - thrust, upper, 0.020 inch oversize

2шт.

10

K928563

RING

WASHER - thrust, lower, 0.020 inch oversize

2шт.

11

K928622

STD INLET VALVE

VALVE - inlet and exhaust, standard stem

6шт.

11

K928986

VALVE

- inlet and exhaust, 0.010 inch oversize stem

6шт.

11

K928987

VALVE

- inlet and exhaust, 0.020 inch oversize stem

2шт.

12

K907502

PISTON

- ram cylinder, standard size

1шт.

12

K961769

PISTON - ram cylinder, 0.020 inch oversize, no longer available

1шт.

Выбрано товаров: 37
