Запчасти Case IH 885N (2-16) - CYLINDER BLOCK AND COVERS (02) - ENGINE

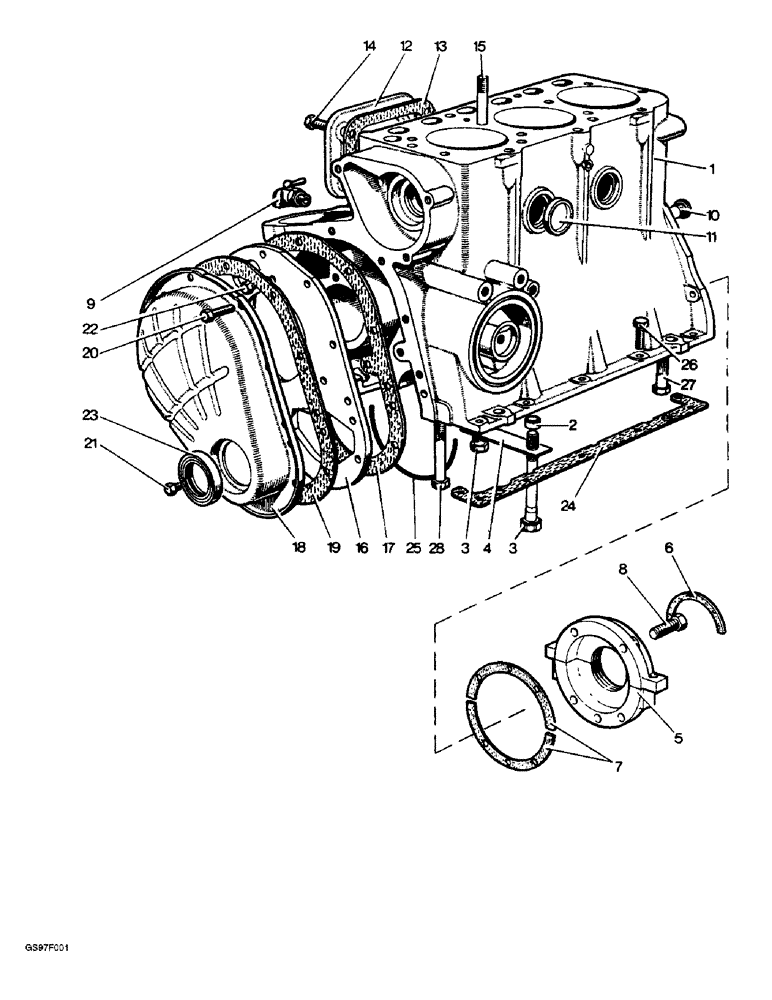

Схема запчастей Case IH 885N - (2-16) - CYLINDER BLOCK AND COVERS (02) - ENGINE
8
6
4
26
16
9
14
13
19
3
17
23
24
15
18
11
22
27
7
10
2
12
3
20
25
5
28
21
1

Артикул

Название

Примечание

Количество

1

K963635

BLOCK

ASSEMBLY - cylinder, no longer available, order cylinder block assembly K965188 below, oil filter K200037 and pipe K203417, see Fig. 2-10, Includes: Ref. 2 - 3

1шт.

2

K907322

RING

DOWEL - ring, main bearing caps

8шт.

K909564

STEP BOLT

- hex, 3-15/16 inch, main bearing caps, no longer available

8шт.

3

K929560

BEARING WASHER

WASHER - flat, 19/32 inch

8шт.

4

K626376

SHEET

WASHER - tab

4шт.

K965188

BLOCK

ASSEMBLY - cylinder (Replaces block assembly K963635), Includes: Dowel's, Washer's, Plug's, Connector, Bolt's, Nut's, Loctite, Cap's, Screw's, Gasket Assembly, Retainer Assembly, and Gasket

1шт.

K12258

PIN

DOWEL - cylinder block

2шт.

K14674

WASHER

- copper

1шт.

K619506

WASHER

- flat

1шт.

K19501

WASHER

WASHER - fibre

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

K19581

PLUG

- cylinder block

1шт.

K200181

FITTING

CONNECTOR - oil

1шт.

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

5шт.

K607081

LOCK NUT

NUT - lock

1шт.

K607516

NUT

- capped

1шт.

K609440

PLUG

- cylinder block

1шт.

K623797

PLUG

- cylinder block

4шт.

K623811

PLUG

- cylinder block

1шт.

K626376

SHEET

WASHER - tab

4шт.

K628459

ADHESIVE

LOCTITE - adhesive

1шт.

K907317

CAP - bearing

1шт.

K907318

CAP - bearing

1шт.

K907319

CAP - bearing

1шт.

K907320

CAP - bearing

1шт.

K907322

RING

DOWEL - cylinder block

8шт.

K909564

STEP BOLT

- cylinder block

8шт.

K928254

SCREW,7/16" - 14 x 1 5/16"

- locating

1шт.

K928265

SCREW,5/16" - 18 x 1-1/16"

- locating

1шт.

K929560

BEARING WASHER

WASHER - flat

8шт.

K950938

GASKET,0.18mm Thk

ASSEMBLY - cylinder block, Includes: Bolt

2шт.

61-524

HEX SOC SCREW,5/16"-18 x 1 1/2"

BOLT - hex socket, 5/16 NC x 1/2 inch (Replaces bolt K606558)

2шт.

K964844

HOUSING

RETAINER ASSEMBLY - oil seal, Includes: Gasket

1шт.

K262783

OIL SEAL

GASKET - oil retainer (Replaces gasket K921611)

2шт.

5

K964844

HOUSING

RETAINER ASSEMBLY - oil, Includes: Gasket

1шт.

6

K262783

OIL SEAL

GASKET - oil retainer (Replaces gasket K921611)

2шт.

7

K950938

GASKET,0.18mm Thk

ASSEMBLY - oil retainer, Includes: Bolt

2шт.

61-524

HEX SOC SCREW,5/16"-18 x 1 1/2"

BOLT - hex socket, 5/16 NC x 1/2 inch (Replaces bolt K606558)

2шт.

8

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

(Replaces bolt K602804) Hex, 5/16"-18 x 7/8", G5, Full Thd

5шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer K19481) 5/16"

7шт.

K19581

PLUG

- cylinder head drain, 1/4 BSP, engine serial number E41055 and after

1шт.

K19501

WASHER

WASHER - fibre, 1/2 inch, engine serial number E41055 and after

1шт.

9

K622060

PLUG, DRAIN

TAP - drain, no longer used, order plug K19581 below, engine serial numbers, Serial Range: prior-E41055

1шт.

9a

K19851

PLUG - cylinder block, 1/4 BSP, engine serial numbers prior to E41055, no longer available

1шт.

K922093

ADAPTER

- drain tap, engine serial numbers, Serial Range: prior-E41055

1шт.

K19501

WASHER

WASHER - sealing, drain tap, 1/2 inch, engine serial numbers, Serial Range: prior-E41055

1шт.

10

K609440

PLUG

- oil gallery, 5/8 inch NC

1шт.

K619506

WASHER

- copper, 5/8 inch (Replaces washer K15512)

1шт.

41-33

PLUG,Exp, 2 1/16"

- camshaft bore, 2-1/16 inch

1шт.

11

41-1628

PLUG,Cup, 1 3/4", Stainless

- core, 1-3/4 inch ID

4шт.

12

K907332

TAPPET

COVER - tappet

2шт.

13

K907333

GASKET

- cover

2шт.

14

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (Replaces bolt K602803)

8шт.

K626682

WASHER

- flat, 5/16 inch (Replaces washer K19471)

8шт.

K626653

WASHER,8.33mm ID x 14.29mm OD x 2.38mm Thk

- flat, 5/16 inch

8шт.

15

K906538

STUD

- cylinder head, 1/2 NC x 4-7/8 inch

4шт.

15

K608505

STUD,1/2" x 7/16"

STUD - cylinder head, 1/2 NC x 5-5/16 inch

2шт.

16

K907297

CARRIER

PLATE - carrier

1шт.

17

K907326

GASKET

- carrier plate

1шт.

18

K907225

COVER

- timing gear

1шт.

19

K262735

GASKET

- timing cover (Replaces gasket K907327)

1шт.

20

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

(Replaces bolt K602804) Hex, 5/16"-18 x 7/8", G5, Full Thd

6шт.

21

113-6

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

(Replaces bolt K602700) Hex, 1/4"-20 x 3/8", G5, Full Thd

1шт.

22

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (Replaces bolt K602803)

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer K19481) 5/16"

12шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer K19480) 1/4"

1шт.

23

K628127

OIL SEAL,52.2mm ID x 73.45mm OD x 9.5mm Thk

- oil, 2-1/8 x 2-7/8 x 3/8 inch, timing cover

1шт.

K914428

FENDER

GUARD - crankshaft pulley

1шт.

K910610

BUSHING

SPACER - distance

2шт.

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch (Replaces bolt K600211)

2шт.

24

K907583

GASKET

- left-hand, cylinder block to main frame

1шт.

K907582

GASKET

- right-hand, cylinder block to main frame

1шт.

25

K907584

SEAL

- bearing caps, cylinder block to main frame

2шт.

26

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Cylinder block to main frame Hex, 3/8"-16 x 1 1/8", G5, Full Thd

9шт.

27

13-6132

BOLT,Hex, 3/8" - 16 x 8-1/4", Gr 5

- special, 3/8 NC x 8-1/4 inch, cylinder block to main frame

3шт.

28

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

cylinder block to main frame Hex, 3/8"-16 x 3", G5

1шт.

K914504

BOLT,Spcl, 3/8" - 16 - 7/16" x 8 1/8"

- special, 3/8 inch NC, cylinder block to main frame

1шт.

K621834

PIN

- dowel, 7/16 x 1-1/8 inch, cylinder block to main frame

2шт.

492-11038

LOCK WASHER,3/8"

cylinder block to main frame 3/8"

14шт.

Выбрано товаров: 79
