Запчасти Case IH 885N (2-10) - LUBRICATING OIL PUMP, PIPES AND FILTER (02) - ENGINE

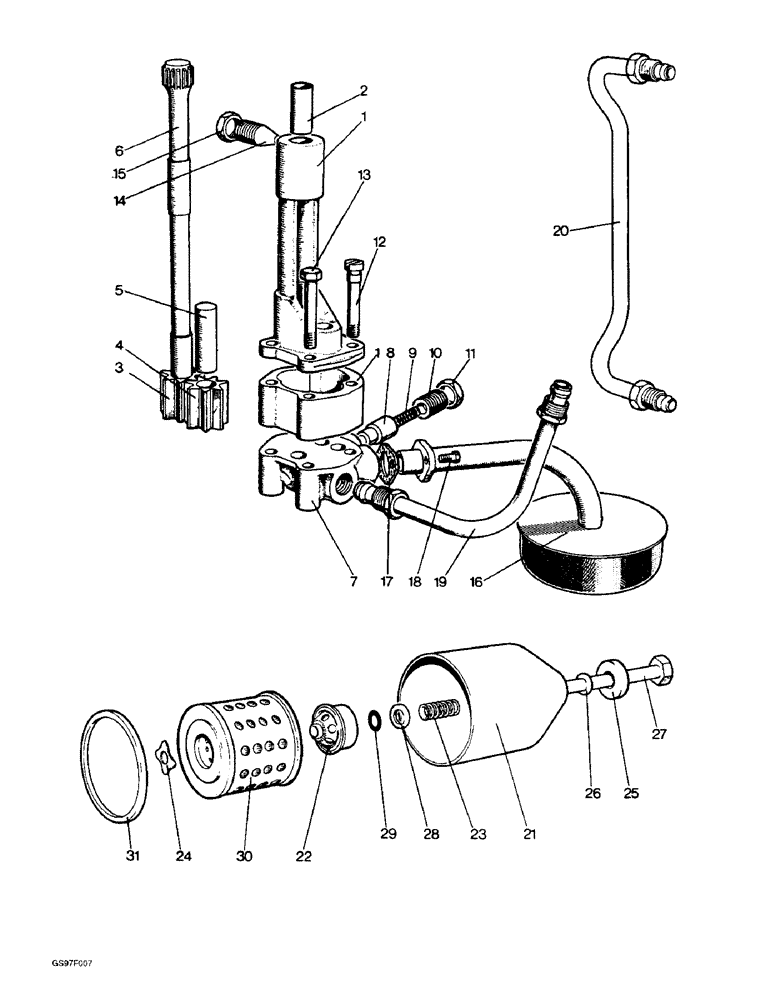

Схема запчастей Case IH 885N - (2-10) - LUBRICATING OIL PUMP, PIPES AND FILTER (02) - ENGINE
4
8
13
10
1
23
30
2
22
16
9
26
1
27
25
20
29
12
5
19
7
17
24
3
28
31
11
6
15
14
18
21

Артикул

Название

Примечание

Количество

K954069

PUMP

ASSEMBLY - oil, complete (Replaces pump assembly K911963), Includes: Ref. 1 - 13, Nut, and Washer

1шт.

1

K961737

BRACKET

HOUSING - bracket and gear

1шт.

2

K30016

BUSHING

- bracket

1шт.

3

K953370

ROTOR

- driving

1шт.

REF. # 3 K953370: 7 EXTERNAL TEETH. 6 INTERNAL SPLINES.

1шт.

3

K902058

PINION

ROTOR - driving

1шт.

(DON'T HAVE A PRINT ON THAT ONE) CKNG RAC-STK OK.

1шт.

REF. # 3 K902058: PER PRINT THIS SHOULD HAVE A KEYWAY CUT ON THE CENTER LINE OF THE TOOTH. REPORTS FROM TOR THAT THEY HAD STOCK IN D.C. "02U" THAT DIDN'T HAVE THE KEYWAY AND STATED THAT THIS WAS K902059.

1шт.

4

K902059

PINION

ROTOR - driven (Replaces rotor K949997)

1шт.

5

K902060

SPINDLE

SHAFT - driven rotor

1шт.

6

K954048

SPINDLE

SHAFT - driving rotor

1шт.

6

K907918

SPINDLE

SHAFT - driving rotor, no longer available

1шт.

126-11

WOODRUFF KEY,#5, 1/8" x 5/8"

(Replaces key K19604) #5, 1/8" x 5/8"

1шт.

K907921

VALVE

ASSEMBLY - relief, Includes: Ref. 7 - 11

1шт.

7

K907589

VALVE

COVER - relief valve, order valve assembly, no longer available

1шт.

8

K907590

PLUNGER

- relief valve

1шт.

9

K625148

SPRING

- relief valve

1шт.

10

K912301

SCREW

- adjusting, relief valve, 3/8 BSP, no longer available

1шт.

11

K19438

LOCK NUT

- lock, relief valve, 3/8 BSP, no longer available

1шт.

12

K604544

FITTING

SCREW - special fitting, 1/4 NC x 3 inch

2шт.

13

413-448

BOLT,Hex, 1/4" - 20 x 3", Gr 5

- hex, 1/4 NC x 3 inch (Replaces bolt K600018)

2шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC (Replaces nut K607000)

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer K19480) 1/4"

4шт.

14

K928254

SCREW,7/16" - 14 x 1 5/16"

- locating, 7/16 inch NC

1шт.

15

K607516

NUT

- capped, 7/16 inch NC

1шт.

K14674

WASHER

- copper, 7/16 inch

1шт.

16

K907929

FILTER

- oil pump inlet

1шт.

17

K908048

GASKET,0.76mm Thk

- relief valve

1шт.

18

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch (Replaces bolt K602702)

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer K19480) 1/4"

2шт.

19

K908050

PIPE

- oil, pump to cylinder block

1шт.

20

K203417

PIPE

- oil, cylinder block to head (Replaces pipe K928267)

1шт.

K200037

FILTER

- oil, if used

1шт.

K907654

CLEANER

FILTER ASSEMBLY - oil, complete, no longer available, Includes: Ref. 21 - 31

1шт.

21

K903222

CLEANER

BOWL - relief, order filter assembly

1шт.

22

K903057

VALVE

- relief

1шт.

23

K903056

SPRING

- relief valve

1шт.

24

K903058

PLATE

- locating, relief valve

1шт.

25

K903053

COLLAR

- relief valve, no longer available

1шт.

26

238-6111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 6, 90 Duro

- 1/2 x 3/32 inch wide, relief valve (Replaces O-ring K903054)

1шт.

27

113-352

BOLT,Hex, 7/16" - 14 x 4-1/2", Gr 5

Relief valve (Replaces bolt K903052) Hex, 7/16"-14 x 4 1/2", G5

1шт.

28

K626314

WASHER

- flat, 7/16 inch, relief valve (Replaces washer K19473)

1шт.

29

K903075

WASHER

- sealing, 7/16 inch, relief valve, no longer available

1шт.

30

K902125

FILTER, ELEMENT

ELEMENT - relief valve

1шт.

31

K87644

RING

- sealing, 4-1/8 inch ID, relief valve

1шт.

Выбрано товаров: 45
