Запчасти Case IH 885N (2-08) - MANIFOLDS AND SILENCER (02) - ENGINE

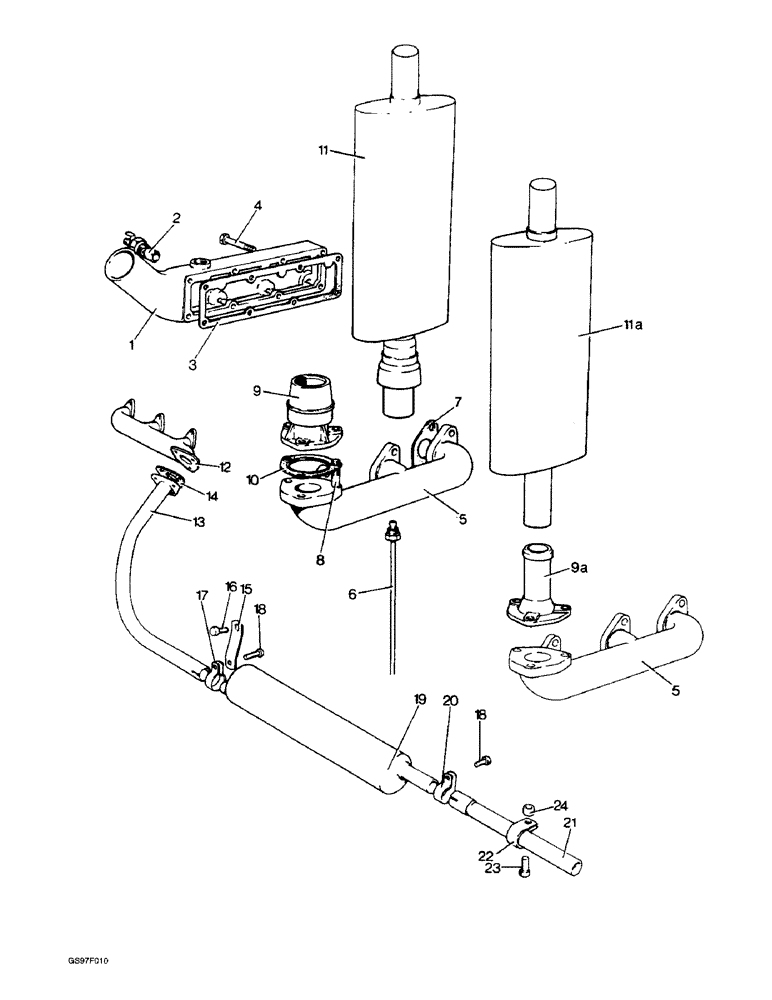

Схема запчастей Case IH 885N - (2-08) - MANIFOLDS AND SILENCER (02) - ENGINE
17
11
24
5
20
21
5
14
3
19
1
18
18
2
23
13
4
16
8
22
9
12
6
11a
7
15
9a
10

Артикул

Название

Примечание

Количество

1

K914000

MANIFOLD

- air inlet, no longer available

1шт.

2

K928523

GLOW PLUG

THERMOSTART - inlet manifold, CAV 1854102

1шт.

K619528

PLUG

- inlet manifold, 7/8 inch NF

1шт.

K626784

WASHER,23.24mm ID x 33.34mm OD x 2.34mm Thk

- sealing, 7/8 inch

1шт.

3

K262736

GASKET

- manifold (Replaces gasket K907911)

1шт.

4

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

(Replaces bolt K600209) Hex, 5/16"-18 x 2", G5

8шт.

K626682

WASHER

- flat, 5/16 inch (Replaces washer K19471)

8шт.

5

K907910

MANIFOLD

- upswept exhaust

1шт.

6

K917523

PIPE

- exhaust manifold drain, used with 885Q, 885QH, 885, 885H, 885G and 885Sk tractors

1шт.

7

K907344

MANIFOLD GASKET

- manifold

3шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut K607045) 3/8"-16, G5

9шт.

8

K608238

STUD

- manifold, 3/8 NC x 1-9/16 inch, engine serial number E43947 and after

3шт.

8

K608203

STUD

- manifold, 3/8 NC x 1-7/16 inch, engine serial numbers, Serial Range: prior-E43947

3шт.

9

K954283

FLANGE

- exhaust, engine serial number E43947 and after

1шт.

9a

K928274

FLANGE

- exhaust, engine serial numbers, Serial Range: prior-E43947

1шт.

10

K912441

GASKET

- manifold

1шт.

11

K954092

MUFFLER

SILENCER - flange, exhaust, used with 885Q and 885QH tractors with engine serial number E43947 and after, no longer available

1шт.

11

K952612

MUFFLER

SILENCER - flange, exhaust, used with 885, 885H, 885G and 885N tractors with engine serial number E43947 and after

1шт.

11

K954090

MUFFLER

SILENCER - flange, exhaust, used with 885Sk tractors with engine serial number E43947 and after, no longer available

1шт.

11a

K946193

MUFFLER

SILENCER - flange, exhaust, used with 885Q and 885QH tractors with engine serial numbers prior to E43947, no longer available

1шт.

11a

K928712

MUFFLER

SILENCER - flange, exhaust, used with 885, 885H, 885G and 885N tractors with engine serial numbers, Serial Range: prior-E43947

1шт.

11a

K953803

MUFFLER

SILENCER - flange, exhaust, used with 885Sk tractors with engine serial numbers prior to E43947, no longer available

1шт.

12

K914087

MANIFOLD ASSY

MANIFOLD - downswept exhaust, used with 885, 885H, 885G and 885N tractors

1шт.

13

K926890

PIPE, EXHAUST SYSTEM

PIPE - exhaust, used with 885N tractors (Replaces pipe K915377)

1шт.

14

K912441

GASKET

- exhaust, pipe to manifold, used with 885, 885H, 885G and 885N tractors

1шт.

425-106

NUT,3/8"-16, Cl 5

Pipe to manifold, used with 885, 885H, 885G and 885N tractors (Replaces nut K607045) 3/8"-16, G5

3шт.

15

K915406

SUPPORT

STRAP - support, front, used with 885 885H and 885G tractors

1шт.

15

K929996

SUPPORT

STRAP - support, front, used with 885N tractors

1шт.

16

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

Support strap to main frame, used with 885, 885H, 885G and 885N tractors (Replaces bolt K603306) Hex, 5/8"-11 x 1 1/2", G5, Full Thd

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Support strap to main frame, used with 885, 885H, 885G and 885N tractors (Replaces washer K19485) 5/8"

1шт.

K19475

WASHER

- flat, 5/8 inch, support strap to main frame, used with 885, 885H, 885G and 885N tractors

2шт.

17

K914853

CLIP

- 1-5/8 inch diameter, used with 885, 885H, 885G and 885N tractors

1шт.

18

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SCREW - set, 5/16 NC x 3/4 inch, two used with 885, 885H and 885G tractors; four used with 885N tractors

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, two used with 885, 885H and 885G tractors; four used with 885N tractors (Replaces nut K607001)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , two used with 885, 885H and 885G tractors; four used with 885N tractors (Replaces washer K19481) 5/16"

1шт.

K626682

WASHER

- flat, 5/16 inch, four used with 885, 885H and 885G tractors; three used with 885N tractors

1шт.

19

K910539

MUFFLER

SILENCER - used with 885, 885H and 885G tractors

1шт.

19

K902324

MUFFLER

SILENCER - used with 885N tractors

1шт.

20

K914852

CLIP

- 1-11/16 inch diameter, one used with 885, 885H and 885G tractors; two used with 885N tractors

1шт.

K926763

SUPPORT

STRAP - support, rear, used with 885N tractors, no longer available

1шт.

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SCREW - set, 5/16 NC x 3/4 inch, support strap to frame, used with 885N tractors

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, support strap to frame, used with 885N tractors (Replaces nut K607001)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , support strap to frame, used with 885N tractors 5/16"

1шт.

K626682

WASHER

- flat, 5/16 inch, support strap to frame, used with 885N tractors

1шт.

21

K914849

NO LONGER SERVICED

PIPE - tail, used with 885, 885H and 885G tractors, no longer available

1шт.

21

K926892

PIPE

- tail, used with 885N tractors, no longer available

1шт.

22

K914853

CLIP

- tail pipe, used with 885, 885H and 885G tractors

1шт.

23

107-1618

PREV TORQUE BOLT,Locking, 3/8"-16 x 1 1/8", G8

BOLT - 3/8 NC x 1-5/8 inch, clip to rear axle, used with 885, 885H and 885G tractors

1шт.

24

A30015

NEEDLE BEARING,0.375" ID x 0.563" OD x 0.625"

TUBE - distance

1шт.

492-11038

LOCK WASHER,3/8"

clip to rear axle, used with 885, 885H and 885G tractors (Replaces washer K19482) 3/8"

1шт.

K19472

WASHER

- flat, 3/8 inch, clip to rear axle, used with 885, 885H and 885G tractors

1шт.

Выбрано товаров: 51
