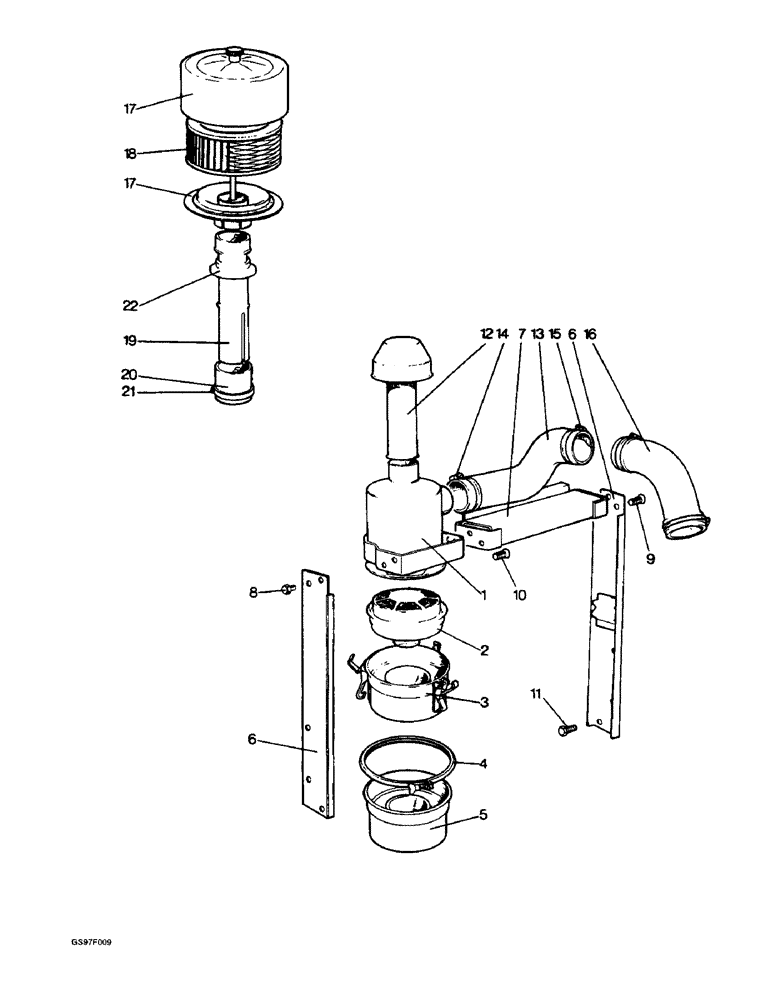

Запчасти Case IH 885N (2-04) - AIR CLEANER (02) - ENGINE

1

K920809

CLEANER

ASSEMBLY - air, Burgess, 6 inch, used with 885Q, 885QH and 885Sk tractors, Includes: Ref. 2 and 3

1шт.

1

K921492

HOUSING

CLEANER ASSEMBLY - air, Burgess, 6 inch, used with 885, 885H and 885G tractors, Includes: Ref. 2 and 3

1шт.

1

K926575

CLEANER

ASSEMBLY - air, Burgess, 6 inch, used with 885N tractor, no longer available, Includes: Ref. 2 and 3

1шт.

2

K920813

SCREEN

ELEMENT - Burgess, lower

1шт.

3

K920518

BOWL

- Burgess, with toggle clips, order cleaner assembly (Replaces bowl K920810)

1шт.

4

K944350

CLAMP

- bowl to air cleaner, used with 885, 885H and 885G tractors, no longer available

1шт.

5

K944351

BOWL

- air cleaner, used with 885, 885H and 885G tractors, no longer available

1шт.

6

K917117

STRAP

BRACKET - air cleaner support, no longer available

2шт.

7

K917969

BRACKET

- tie, air cleaner, no longer available

1шт.

8

K602846

SCREW,5/16" - 18 x 5/8", Gr S

- bracket to air cleaner, set, 5/16 NC x 5/8 inch

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , bracket to air cleaner 5/16"

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, bracket to air cleaner (Replaces nut K607044)

1шт.

9

182-515

SCREW,Sl Pan Hd, 5/16" - 18 x 5/8"

- machine, No. 10 NC x 1/2 inch, support bracket to tie bracket and air cleaner, used with 885Q, 885QH, 885Sk, 885, 885H and 885G tractors (Replaces screw K604477)

2шт.

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16 inch NC, support bracket to tie bracket and air cleaner, used with 885Q, 885QH, 885Sk, 885, 885H and 885G tractors (Replaces nut K607001)

2шт.

10

K604575

SCREW

- Posidrive, 5/16 inch NC, used with 885Q, 885QH, 885Sk, 885, 885H and 885G tractors

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , used with 885Q, 885QH, 885Sk, 885, 885H and 885G tractors (Replaces washer K19481) 5/16"

4шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, used with 885Q, 885QH, 885Sk, 885, 885H and 885G tractors (Replaces nut K607044)

2шт.

11

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch, bracket to front extension

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , bracket to front extension 5/16"

4шт.

12

K920812

CLEANER

PRE-CLEANER - air cleaner (Replaces pre-cleaner K917143)

1шт.

13

K917972

INTAKE AIR HOSE,2.00" ID, 2.25" ID, SAE J14 Class SC

Air Cleaner to Radiator 2.00" ID, 2.25" ID, SAE J14 Class SC

1шт.

14

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

CLAMP, HOSE, , Adj (Replaces clamp K622031) #36, 1.81/2.75 Type F Worm

4шт.

16

K912041

HOSE

PIPE -, Serial Range: radiator-manifold

1шт.

17

K924272

PRECLEANER

PRE-CLEANER - paper element, used with 885, 885H, 885G and 885N tractors

1шт.

18

K922630

AIR FILTER

ELEMENT - paper, air-cleaner, 885, 885H, 885G and 885N tractors

1шт.

19

K920068

PIPE

- extension, 9-1/2 inch, air-cleaner, used with 885, 885H, 885G and 885N tractors

1шт.

19

K915275

INLET MANIFOLD

PIPE - extension, 32 inch, air-cleaner, used with 885, 885H, 885G and 885N tractors

1шт.

20

K917048

SLEEVE

- rubber, air-cleaner, used with 885, 885H, 885G and 885N tractors

1шт.

21

214-1444

HOSE CLAMP,58.6mm - 82.5mm

CLAMP, HOSE, , Adjustable, Air-cleaner, Used with 885, 885H, 885G and 885N tractors (Replaces clamp K12755) #44, 2.31/3.25 Type F Worm

2шт.

21

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

CLAMP, HOSE, , Adj, Air-cleaner, Used with 885, 885H, 885G and 885N tractors (Replaces clamp K621933) #36, 1.81/2.75 Type F Worm

1шт.

22

K917010

FLANGE

- dust, pre-cleaner, used with 885, 885H, 885G and 885N tractors

1шт.

K621940

CLIP - hose, extension, no longer used order clip K12755

1шт.

214-1444

HOSE CLAMP,58.6mm - 82.5mm

CLAMP, HOSE, , Adjustable, Used with 885, 885H, 885G and 885N tractors (Replaces clamp K12755) #44, 2.31/3.25 Type F Worm

1шт.
