Запчасти Case IH 885N (9-90) - DECALS AND INSTRUCTION PLATES (09) - CHASSIS/ATTACHMENTS

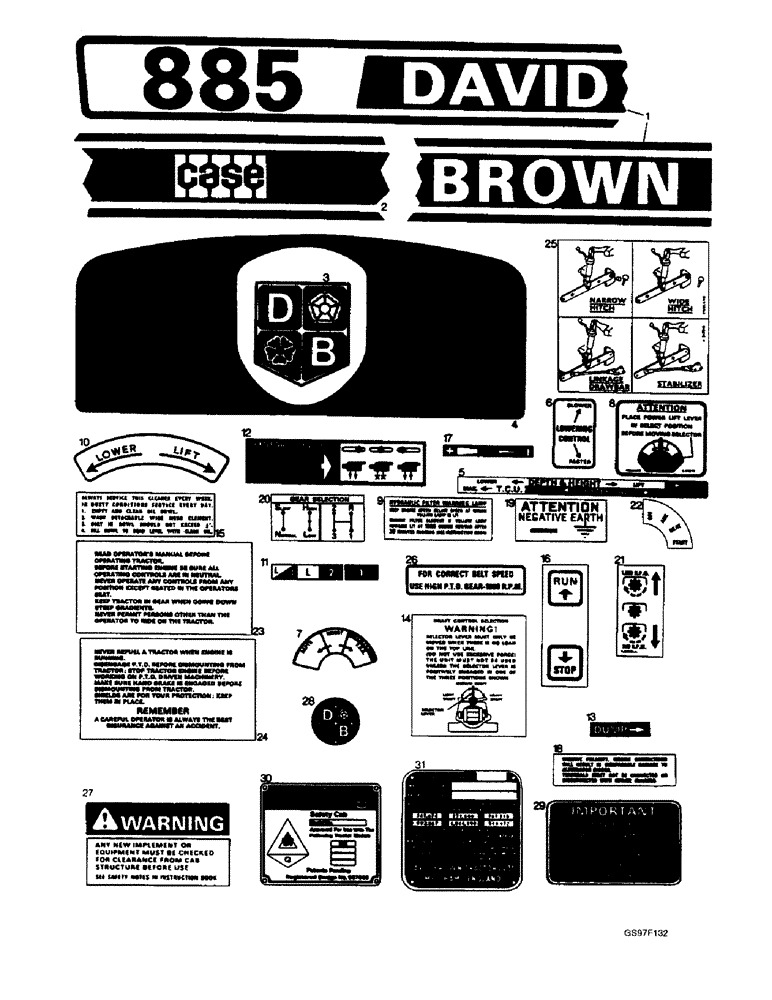

Схема запчастей Case IH 885N - (9-90) - DECALS AND INSTRUCTION PLATES (09) - CHASSIS/ATTACHMENTS
13
26
3
4
22
27
11
20
30
31
29
28
15
8
7
5
1
23
2
19
24
12
25
21
16
6
10
18
17
9
14

Артикул

Название

Примечание

Количество

K947732

DECAL

KIT - decal, bonnet, used with 885Q, 885QH, 885Sk, 885, 885H and 885G tractors, no longer available as a kit, order components, Includes: Ref. 1 - 2 and Decal's

1шт.

K948169

PRODUCT GRAPHIC

KIT - decal, bonnet, used with 885N tractors, no longer available, Includes: Ref. 1 - 2 and Decal's

1шт.

1

K947712

DECAL

- 885 DB, left-hand, no longer available, order decal K952984 (Replaces decal K947711)

1шт.

2

K952984

DECAL

- CASE, left-hand (Replaces decal K947712)

1шт.

K948167

PRODUCT GRAPHIC

DECAL - 885 right-hand, used with 885N tractors, used with kit K948169, no longer available

1шт.

K952983

DECAL

- CASE, right-hand, used with 885Q, 885QH, 885Sk, 885, 885H and 885G tractors, used with kit K947732 (Replaces decals K947714 and K947713)

1шт.

K948168

PRODUCT GRAPHIC

DECAL - 885 DB, right-hand, used with 885N tractors, used with kit K948169, no longer available

1шт.

3

K951132

DECAL

- DB motif, bonnet nose, no longer available

1шт.

4

K917052

PRODUCT GRAPHIC

DECAL - bonnet nose, outboard headlamp, used with 885, 885H and 885G tractors

1шт.

321-3727

DECAL - 885 CASE, left-hand, used with 885, 885H and 885G tractors, North America only, no longer available

1шт.

321-3726

DECAL - 885 CASE, right-hand, used with 885, 885H and 885G tractors, North America only, no longer available

1шт.

321-2134

DECAL

- Case trademark, used with 885Q, 885QH and 885Sk tractors, North America only

1шт.

5

K952539

PRODUCT GRAPHIC

DECAL - quadrant, used with 885Q, 885QH and 885Sk tractors, no longer available

1шт.

5

K915178

DECAL

- quadrant, used with 885, 885H, 885G and 885N tractors

1шт.

151-526

RIVET,Pop, 1/8" x .337"

- pop, 1/8 x 9/32 inch, one used with 885Q, 885QH and 885Sk tractors, two used with 885, 885H, 885G and 885N tractors

1шт.

6

K917242

DECAL

- lowering control

1шт.

7

K915179

DECAL

- selector panel

1шт.

8

K915177

PLATE

DECAL - hydraulic lift control

1шт.

9

K921368

DECAL

- filter warning lamp

1шт.

10

K917237

DECAL

- lift-lower

1шт.

11

K952541

DECAL

- three-way valve positions, used with 885Q, 885QH and 885Sk tractors

1шт.

11

K919845

PRODUCT GRAPHIC

DECAL - three-way valve positions, used with 885, 885H, 885G and 885N tractors, no longer available

1шт.

12

K952540

DECAL

- live take-off valve lever, used with 885Q, 885QH and 885Sk tractors

1шт.

12

K924660

DECAL

- live take-off valve, used with 885, 885H and 885G tractors

1шт.

13

K952542

DECAL

- dump valve lever, used with 885Q, 885QH and 885Sk tractors

1шт.

14

K940361

PRODUCT GRAPHIC

DECAL - Selective sensing unit

1шт.

15

K917151

PRODUCT GRAPHIC

DECAL - air cleaner, no longer available

1шт.

16

K952670

PRODUCT GRAPHIC

DECAL - engine stop control, used with 885Q, 885QH and 885Sk tractors, no longer available

1шт.

16

K917240

DECAL

- engine stop control, used with 885, 885H and 885G tractors

1шт.

16

K917241

DECAL

- engine stop control, used with 885N tractors, no longer available

1шт.

17

K917241

DECAL

- engine stop control, used with 885N tractors, no longer available

1шт.

17

K952669

DECAL

- hand throttle control, used with 885Q, 885QH and 885Sk tractors

1шт.

18

K947548

DECAL

- alternator

1шт.

19

K917425

PRODUCT GRAPHIC

DECAL - negative earth

1шт.

20

K952588

DECAL

- gear positions, twelve-speed, used with 885Q, 885QH and 885Sk tractors, no longer available

1шт.

20

K940726

PRODUCT GRAPHIC

DECAL - gear positions, twelve-speed, used with 885, 885H, 885G and 885N tractors

1шт.

20

K940730

GEAR

DECAL - gear positions, six-speed, used with 885, 885H and 885G tractors, no longer available

1шт.

21

K952559

DECAL

- power take-off unit, used with 885Q, 885QH and 885Sk tractors

1шт.

21

K923367

DECAL

- power take-off unit, used with 885, 885H, 885G and 885N tractors

1шт.

K949760

DECAL

- power take-off warning, no longer available

1шт.

22

K953665

DECAL

- isolating switch with Thermostart

1шт.

23

K952685

DECAL

- operator warning, left-hand, used with 885, 885H and 885G tractors

1шт.

24

K952686

DECAL

- operator warning, right-hand, used with 885Q, 885QH and 885Sk tractors

1шт.

25

K943645

DECAL

- linkage setting, used with 885Q, 885QH, 885Sk, 885, 885H and 885G tractors, no longer available

1шт.

26

K921551

PRODUCT GRAPHIC

DECAL - belt pulley, used with 885Q, 885QH, 885Sk, 885, 885H and 885G tractors, no longer available

1шт.

27

K952971

DECAL

- implement warning, used with 885Q, 885QH and 885Sk tractors, no longer available

1шт.

28

K952168

DECAL

- steering wheel hub, used with 885Q, 885QH and 885Sk tractors

1шт.

29

K953599

PRODUCT GRAPHIC

DECAL - overturning warning, used with 885Q, 885QH and 885Sk tractors

1шт.

30

K952480

PLATE - type approval, used with 885Q, 885QH and 885Sk tractors, no longer available

1шт.

31

K954984

PRODUCT GRAPHIC

PLATE - tractor serial number, no longer available

1шт.

321-1763

DECAL

- Caution, battery acid, used with 885, 885H and 885G tractors, North America only (Replaces decal K952727)

1шт.

321-3596

DECAL

- Warning, fan, used with 885, 885H and 885G tractors, North America only (Replaces decal K953239)

1шт.

321-6715

DECAL

- Warning, rotating parts, used with 885, 885H and 885G tractors, North America only (Replaces decal K953240)

1шт.

321-3845

DECAL

- Warning, hitch, used with 885, 885H and 885G tractors, North America only (Replaces decal K953241)

1шт.

321-6714

DECAL

- Warning, jump start battery area, used with 885, 885H and 885G tractors, North America only

1шт.

321-3705

DECAL

- Warning, universal sign, used with 885, 885H and 885G tractors, North America only (Replaces decal K953244)

1шт.

321-3895

DECAL

- operating instructions, OSHA, used with 885, 885H and 885G tractors, North America only

1шт.

321-6672

DECAL

- Warning, coolant, used with 885, 885H and 885G tractors, North America only (Replaces decal K953573)

1шт.

K954075

PRODUCT GRAPHIC

DECAL - power take-off warning, used with 885Q, 885QH and 885Sk tractors, no longer available

1шт.

Выбрано товаров: 59
