Запчасти Case IH 885N (9-86) - HEATER AND VENTILATOR UNIT FOR CAB, 885Q AND 885QH TRACTORS (09) - CHASSIS/ATTACHMENTS

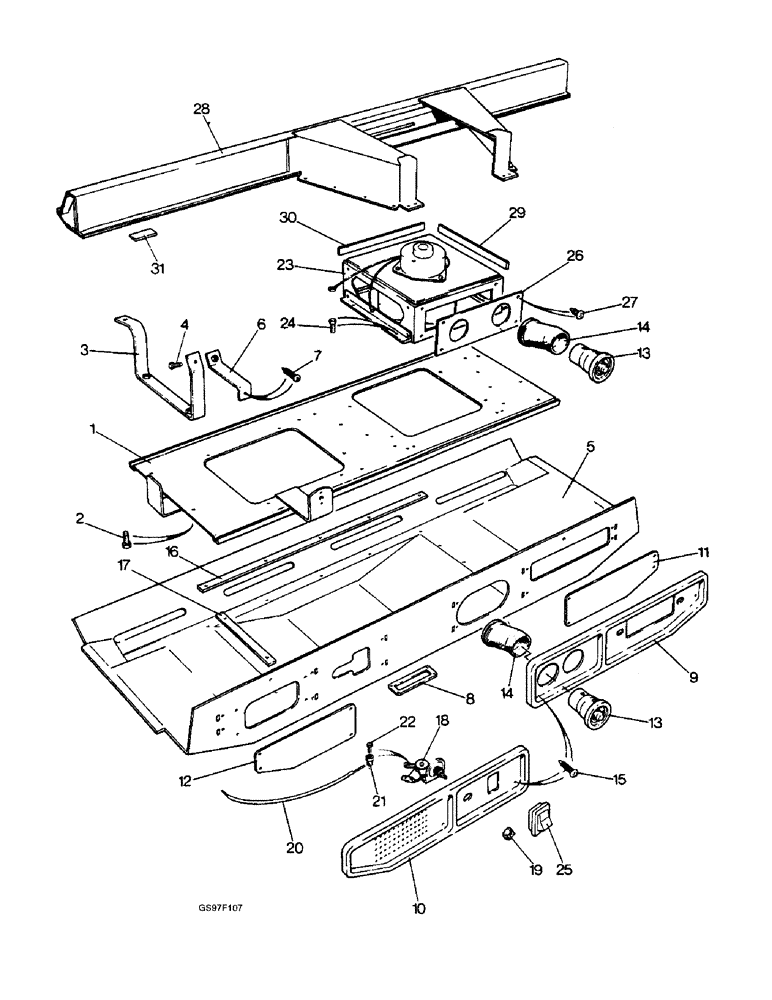

Схема запчастей Case IH 885N - (9-86) - HEATER AND VENTILATOR UNIT FOR CAB, 885Q AND 885QH TRACTORS (09) - CHASSIS/ATTACHMENTS
29
12
28
4
17
23
6
25
30
20
19
7
27
14
14
8
13
24
5
18
9
26
1
31
10
13
21
15
22
3
16
2
11

Артикул

Название

Примечание

Количество

1

K955358

HEATER

BASEPLATE - cab, heater, no longer available

1шт.

2

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SCREW - set, 5/16 NC x 3/4 inch, baseplate to supports

6шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , baseplate to supports (Replaces washer K19481) 5/16"

6шт.

3

K952504

SUPPORT

BRACKET - support, baseplate, no longer available

3шт.

4

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SCREW - set, 5/16 NC x 3/4 inch, support brackets to cab

6шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , support brackets to cab (Replaces washer K19481) 5/16"

6шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch, Support brackets to cab (Replaces nut K607044)

4шт.

5

K955280

COVER

- heater/ventilator unit, no longer available

1шт.

6

K955384

BRACKET - support, heater cover, no longer available

2шт.

7

K624794

SCREW

- self-tapping, No. 6 x 1/2 inch, no longer available

14шт.

8

K952603

MOUNTING PARTS

PLATE - mounting, interior lamp, no longer available

1шт.

K624046

RIVET

1/8 x 3/8 inch, plate to cover, no longer available

4шт.

9

K955281

PANEL

- control, right-hand, no longer available

1шт.

10

K955288

PANEL

- control, left-hand, no longer available

1шт.

11

K955382

COVER

- radio aperture, no longer available

1шт.

12

K955383

COVER

- speaker aperture, no longer available

1шт.

13

K955374

VENTILATOR

- eye-ball, no longer available

2шт.

14

K955368

VENTILATOR

CONNECTOR - ventilator, no longer available

2шт.

15

K624797

SCREW

- self-tapping, No. 8 x 5/8 inch

12шт.

K624596

NUT - captive, No. 8, no longer available

12шт.

16

K952705

TAPE

STRIP - sealing, 6 x 12 mm x 25-3/4 inch (654 mm) long, no longer available

2шт.

17

K952706

TAPE

STRIP - sealing, 6 x 12 mm x 9-1/2 inch (241 mm) long, no longer available

2шт.

18

K952101

VALVE, CONTROL

CONTROL - water valve, no longer available

1шт.

19

K952783

KNOB

- water control, no longer available

1шт.

20

K955385

CABLE

- flexible, inner and outer, no longer available

1шт.

21

K952104

TRUNNION

- No. 8 NC

2шт.

22

70-1086

SCREW,Slotted Pan Hd, #8-32 x 3/8"

- machine, pan head slotted, No. 8 NC x 3/8 inch (Replaces screw K605578)

2шт.

23

K200018

FAN

UNIT - fan, two speed , no longer available

1шт.

24

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch, fan unit to baseplate (Replaces bolt K602734)

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Fan unit to baseplate (Replaces washer K626341) 1/4"

4шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, fan unit to baseplate (Replaces nut K607043)

4шт.

25

K200023

SWITCH

- heater fan, Lucas 30624, no longer available

1шт.

26

K955622

OUTLET

PLATE - outlet, no longer available

1шт.

27

K924520

SCREW - self-tapping, No. 4 x 1/4 inch, no longer available

2шт.

28

K951440

DUCT

- demister, no longer available

1шт.

29

K952699

SEALING STRIP

STRIP - sealing, 6 x 20 mm x 11-3/8 inch (289 mm) long, no longer available

2шт.

30

K952700

TAPE

STRIP - sealing, 6 x 20 mm x 8 inch (203 mm) long, no longer available

2шт.

31

K952701

TAPE

STRIP - sealing, 6 x 20 mm x 2 inch (51 mm) long, no longer available

3шт.

Выбрано товаров: 38
