Запчасти Case IH 885N (9-82) - CAB HEATER PIPES AND FITTING, 885Q, 885QH AND 885SK TRACTORS (09) - CHASSIS/ATTACHMENTS

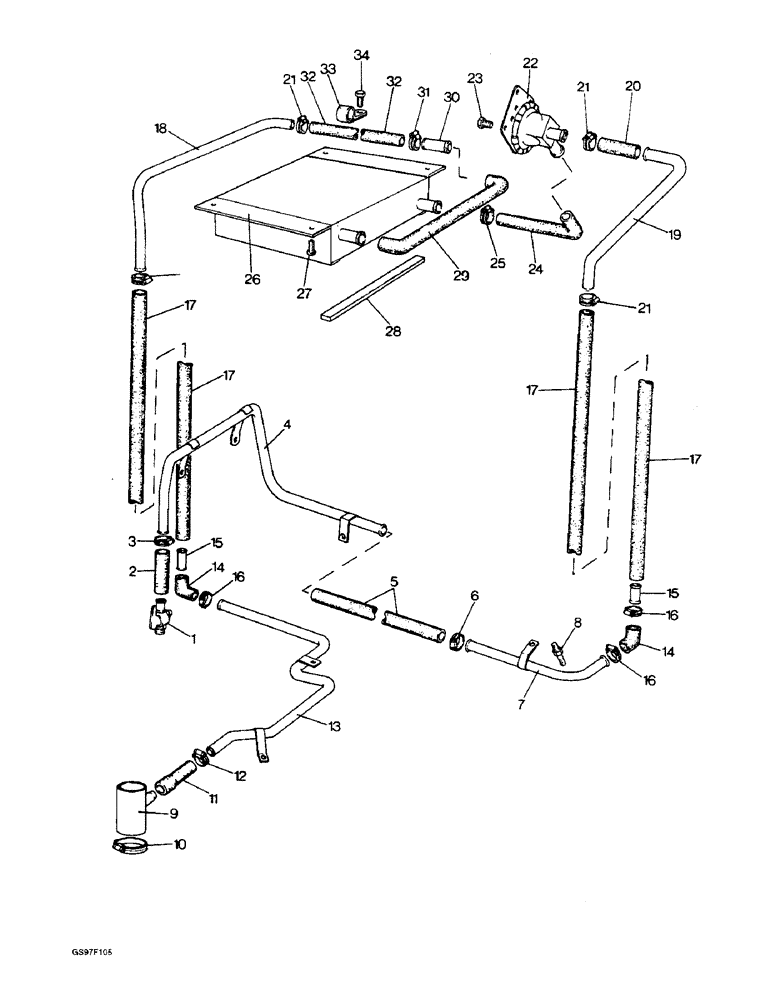

Схема запчастей Case IH 885N - (9-82) - CAB HEATER PIPES AND FITTING, 885Q, 885QH AND 885SK TRACTORS (09) - CHASSIS/ATTACHMENTS
24
19
33
7
6
21
13
15
34
20
22
32
23
30
17
11
14
1
16
9
31
17
21
8
28
21
14
12
10
16
3
32
15
16
27
17
17
25
20
26
2
5
18
4

Артикул

Название

Примечание

Количество

1

K952109

COCK

TAP - 3/8 inch BSP, water pump body, no longer available

1шт.

K19500

GASKET

WASHER - sealing, 5/8 inch

1шт.

2

K626827

HOSE

- 1/2 x 3 inch (76 mm) long, no longer available

1шт.

3

214-1408

HOSE CLAMP,11.2mm - 19.8mm

CLAMP, HOSE, , Adj. (Replaces clamp K622023) #08, 0.50/0.91 Type F Worm

1шт.

3

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP, HOSE, , Adjustable (Replaces clamp K622024) #10, 0.56/1.06 Type F Worm

1шт.

4

K955843

FITTING

PIPE - top to hose, used with 885Q and 885QH tractors with serial number 11007594 and after, no longer available

1шт.

5

K626837

HOSE

- 1/2 x 16 inch (406 mm) long, used with 885Q and 885QH tractors with serial number 11007594 and after, no longer available

1шт.

6

K622023

CLAMP

CLIP - hose, 3/4 inch, used with 885Q and 885QH tractors with serial number 11007594 and after

2шт.

7

K955692

HEATER

PIPE - hose to elbow, used with 885Q and 885QH tractors with serial number 11007594 and after, no longer available

1шт.

7

K953410

PIPE

- tap to elbow, used with 885Q and 885QH tractors with serial numbers prior to 11007594, no longer available

1шт.

7

K955527

PIPE

- tap to elbow, used with 885Sk tractors, no longer available

1шт.

8

K608154

STUD

- special, 5/16 inch NC, used with 885Q and 885QH tractors with serial number 11007594 and after, no longer available

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, Used with 885Q and 885QH tractors with S/N 11007594 and after (Replaces nut K607044)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , used with 885Q and 885QH tractors with serial number 11007594 and after (Replaces washer K19481) 5/16"

1шт.

9

K953814

ADAPTER

- radiator outlet hose, used with 885Q and 885QH tractors

1шт.

9

K955560

ADAPTER

- radiator outlet hose, used with 885Sk tractors, no longer available

1шт.

10

K622029

CLAMP

CLIP - hose, 1-7/8 inch

2шт.

11

K626807

HOSE

- adapter to pipe, no longer available

1шт.

12

K622023

CLAMP

CLIP - hose, 3/4 inch

1шт.

12

K622024

CLAMP

CLIP - hose

1шт.

13

K953409

PIPE

- water return, used with 885Q and 885QH tractors, no longer available

1шт.

13

K955526

HEATER

PIPE - water return, used with 885Sk tractors, no longer available

1шт.

14

K626806

FITTING

ELBOW - rubber, used with 885Q and 885QH tractors, no longer available

2шт.

15

K952106

CONNECTOR, ELEC

CONNECTOR - hose, 1/2 x 1-1/2 inch, used with 885Q and 885QH tractors, no longer available

2шт.

16

K622023

CLAMP

CLIP - hose, 3/4 inch, used with 885Q and 885QH tractors

6шт.

17

K626825

HOSE

- 1/2 x 63 inch (1600 mm) long, cab pillars, used with 885Q and 885QH tractors, no longer available

2шт.

K627752

GROMMET

- 1 inch, used with 885Q and 885QH tractors, no longer available

2шт.

18

K952782

HEATER

PIPE - right-hand, used with 885Q and 885QH tractors, no longer available

1шт.

19

K952781

HEATER

PIPE - left-hand, used with 885Q and 885QH tractors, no longer available

1шт.

20

K626827

HOSE

- 1/2 x 3 inch (76 mm) long, used with 885Q and 885QH tractors, no longer available

1шт.

21

K622023

CLAMP

CLIP - hose, 3/4 inch, used with 885Q and 885QH tractors

6шт.

22

K952100

VALVE

- water metering, used with 885Q and 885QH tractors, no longer available

1шт.

23

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

- machine, pan Phillips, No. 10 NF x 1/2 inch, valve to mounting bracket, used with 885Q and 885QH tractors (Replaces screw K614944)

2шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, , Valve to mounting bracket, used with 885Q and 885QH tractors (Replaces washer K626340) #10

2шт.

225-14210

NUT,#10-32

Valve to mounting bracket, used with 885Q and 885QH tractors (Replaces nut K617080) #10-32

2шт.

24

K953101

HOSE

- valve to radiator, used with 885Q and 885QH tractors, no longer available

1шт.

25

K622023

CLAMP

CLIP - hose, 3/4 inch, used with 885Q and 885QH tractors

2шт.

26

K951515

RADIATOR

- cab heater, used with 885Q and 885QH tractors, no longer available

1шт.

27

K624524

SCREW

- self-tapping, No. 6 x 3/8 inch, used with 885Q and 885QH tractors, no longer available

4шт.

28

K953102

SEAL

STRIP - sealing, used with 885Q and 885QH tractors, no longer available

2шт.

29

K953100

HOSE

- radiator to connector, used with 885Q and 885QH tractors, no longer available

1шт.

30

K952106

CONNECTOR, ELEC

HOSE - connector, used with 885Q and 885QH tractors, no longer available

1шт.

31

K622023

CLAMP

CLIP - hose, 3/4 inch, used with 885Q and 885QH tractors

4шт.

32

K626826

HOSE

- 1/2 x 30 inch (762 mm) long, used with 885Q and 885QH tractors, no longer available

1шт.

33

K621675

CLIP

CLAMP - hose, used with 885Q and 885QH tractors (Replaces clamp K621709)

1шт.

34

K614964

SCREW

- set, 1/4 NF x 1/4 inch, used with 885Q and 885QH tractors, no longer available

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Used with 885Q and 885QH tractors (Replaces washer K626341) 1/4"

2шт.

425-114

NUT,1/4"-28, G5

Used with 885Q and 885QH tractors (Replaces nut K616980) 1/4"-28, G5

2шт.

Выбрано товаров: 48
