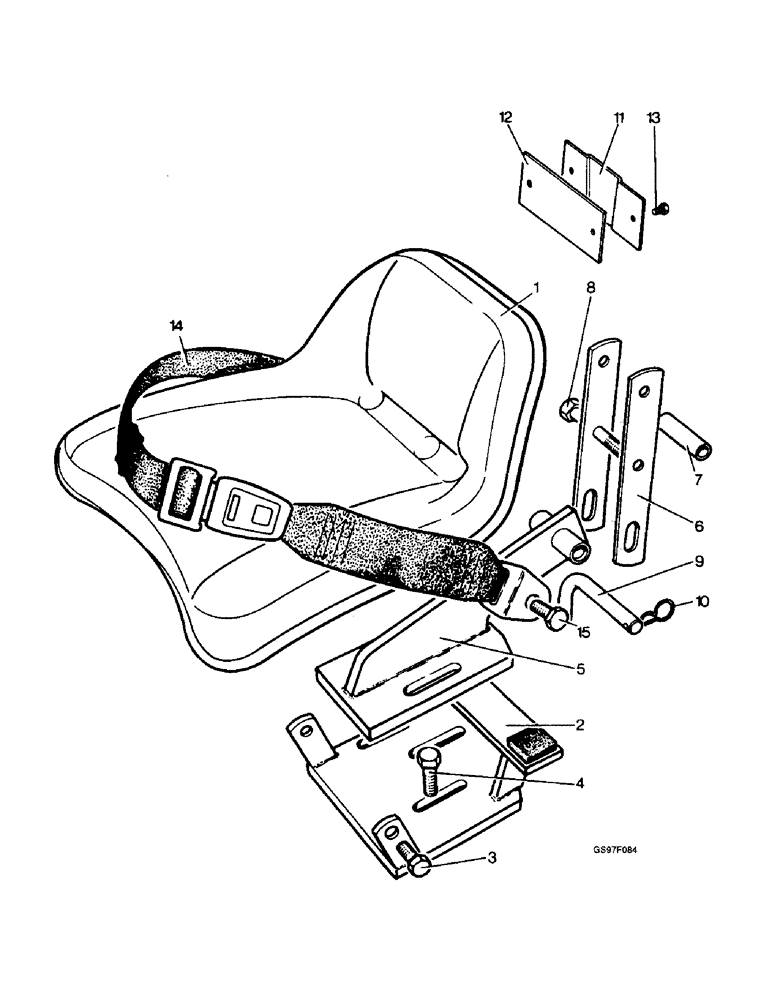

Запчасти Case IH 885N (9-80) - SEAT, 885 NARROW TRACTORS (09) - CHASSIS/ATTACHMENTS

1

K947414

SEAT

ASSEMBLY - pan (Replaces seat K947413), Includes: Cover and Clip

1шт.

K964819

SEAT COVER

COVER - seat cushion (Replaces cover K963420)

1шт.

827368C1

CLIP

- cover to seat (Replaces clip K964809)

11шт.

2

K940014

SEAT

SUPPORT - seat, no longer available

1шт.

3

K603052

SCREW

- set, 7/16 NC x 1-1/4 inch, no longer available

2шт.

K607461

NUT

- Cleveloc, 7/16 inch NC, no longer available

2шт.

4

113-358

BOLT,Hex, 7/16" - 14 x 1-5/8", Gr 5

- hex, 7/16 NC x 1-5/8 inch, with seat belt

2шт.

4

K603052

SCREW

- set, 7/16 NC x 1-1/4 inch

1шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, (Replaces washer K626344) 7/16"

3шт.

K626314

WASHER

- flat, 7/16 inch

3шт.

K963634

KIT

- seat strap, no longer available, Includes: Ref. 5 - 8, Washer, and Nut

1шт.

5

K945331

BRACKET

- seat restrainer, no longer available

1шт.

6

K947186

STRAP

- seat restrainer, no longer available

2шт.

7

K627058

BUSHING

SPACER - distance, no longer available

2шт.

8

413-444

BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 5

- hex, 1/4 NC x 2-3/4 inch

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer K626341) 1/4"

2шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC (Replaces nut K607043)

2шт.

9

K945336

PIN

- retaining

1шт.

K19472

WASHER

- flat, 3/8 inch

1шт.

10

K38632

SPRING

CLIP - spring (Replaces clip K624870)

1шт.

11

K946395

SOCKET/RECEPTACLE

SOCKET - SMV emblem, no longer available

1шт.

12

K949204

PLATE

- backing, no longer available

1шт.

13

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch (Replaces bolt K602735)

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer K626341) 1/4"

2шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC (Replaces nut K607043)

2шт.

K159600

BELT

ASSEMBLY - seat (Replaces belt assembly K945347), Includes: Ref. 14 - 15 and Washer

1шт.

14

NSS

NOT SOLD SEPARAT

BELT - seat, order belt assembly K159600 above

1шт.

15

K945348

BOLT

- special, 5/16 inch NF, no longer available

2шт.

K945349

WASHER

- special, 9/16 inch, no longer available

2шт.
