Запчасти Case IH 885N (9-78) - SUSPENSION SEAT, 885LP TRACTORS (09) - CHASSIS/ATTACHMENTS

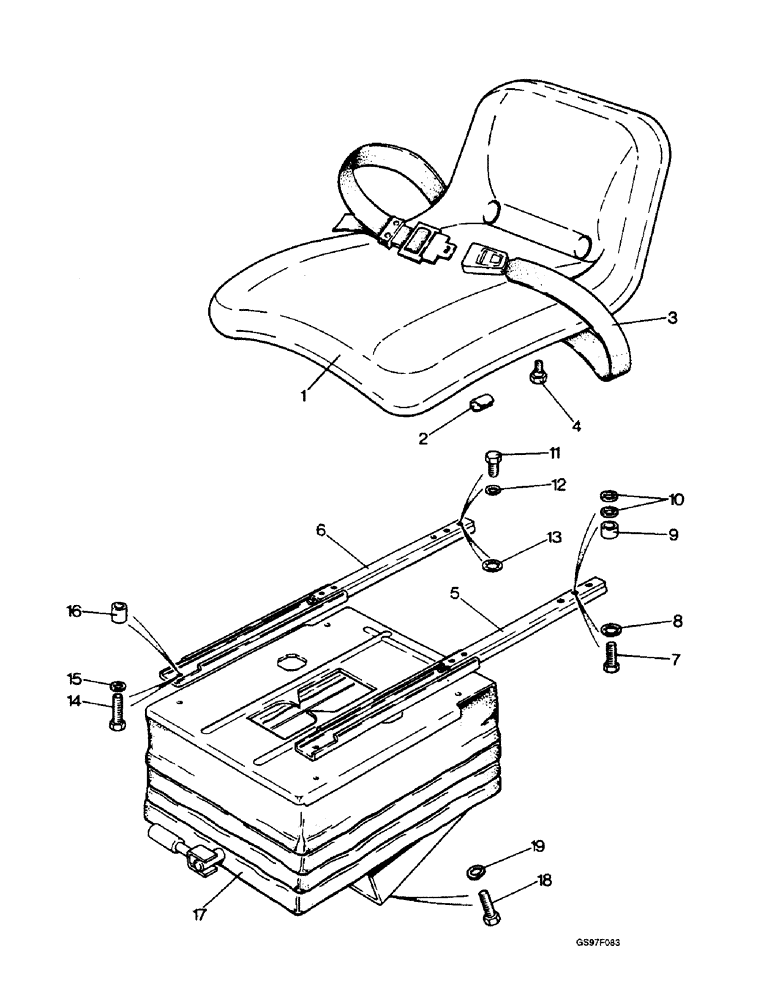

Схема запчастей Case IH 885N - (9-78) - SUSPENSION SEAT, 885LP TRACTORS (09) - CHASSIS/ATTACHMENTS
4
15
6
10
19
9
16
11
1
13
3
17
18
2
12
5
7
14
8

Артикул

Название

Примечание

Количество

1

K201696

SEAT

- pan, with cushion and cover, no longer available

1шт.

2

827368C1

CLIP

- cover to seat (Replaces clip K964809)

11шт.

3

K159600

BELT

- seat (Replaces belt K945347)

1шт.

4

K945348

BOLT

- special, 5/16 inch NF, no longer available

2шт.

K945349

WASHER

- special, 9/16 inch, no longer available

2шт.

5

3224897R1

RAIL

RUNNER - upper and lower halves, left-hand (Replaces runner K964682)

1шт.

6

K964681

SEAT

RUNNER - upper and lower halves, right-hand, no longer available

1шт.

K202306

SEAT

STOP - front, left-hand runner, no longer available

1шт.

7

K650343

BOLT

- hex, M8 x 25 mm, no longer available

2шт.

8

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

WASHER - external tooth lock, 5/16 inch (Replaces washer K11517)

2шт.

9

K965787

SHAFT

SPACER - runner, no longer available

2шт.

10

K965786

SHAFT

WASHER - special, no longer available

4шт.

11

K964633

SCREW

- hex, M8 x 15 mm

4шт.

12

K11517

WASHER

- internal tooth lock, 7/16 inch

4шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

(Replaces washer K964793) M8 x 16 x 1.6

2шт.

14

K650345

SCREW

- set, M8 x 35 mm, no longer available

2шт.

15

K11517

WASHER

- internal tooth lock, 7/16 inch

2шт.

16

K965788

BUSHING

SPACER - runner, no longer available

2шт.

17

K201697

SPARE PART

SUSPENSION ASSEMBLY - seat, parts list Fig. 9-74

1шт.

18

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SCREW - set, 5/16 NC x 3/4 inch, seat to cab

4шт.

19

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , seat to cab (Replaces washer K19481) 5/16"

4шт.
