Запчасти Case IH 885N (9-76) - SUPER COMFORT SUSPENSION SEAT, 885, 885H AND 885G TRACTORS (09) - CHASSIS/ATTACHMENTS

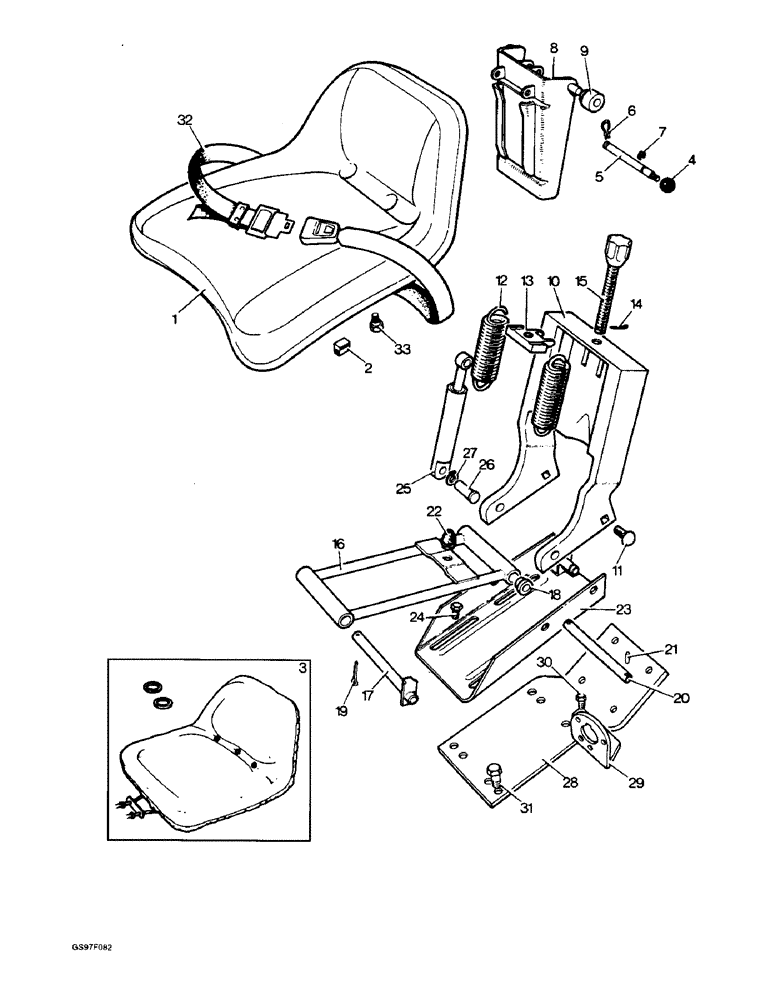

Схема запчастей Case IH 885N - (9-76) - SUPER COMFORT SUSPENSION SEAT, 885, 885H AND 885G TRACTORS (09) - CHASSIS/ATTACHMENTS
27
14
7
24
30
2
31
4
16
13
33
28
25
9
6
19
21
18
29
11
32
17
1
5
22
12
15
8
20
3
26
10
23

Артикул

Название

Примечание

Количество

1

K947414

SEAT

ASSEMBLY - pan, with cushion and cover, white, Includes: Ref. 2 - 3 and Clip

1шт.

1

K948414

DRIVER SEAT

SEAT ASSEMBLY - pan, with cushion and cover, yellow, no longer available, Includes: Ref. 2 - 3 and Clip

1шт.

2

K963419

CATCH

- plastic, no longer available

1шт.

3

K964819

SEAT COVER

COVER - cushion

1шт.

827368C1

CLIP

- cover to seat (Replaces clip K964809)

11шт.

K950589

SEAT

SUSPENSION ASSEMBLY - seat, 60 kg springs, white (Replaces suspension assembly K947402), Includes: Ref. 4 - 27

1шт.

K947401

SUSPENSION

ASSEMBLY - seat, 80 kg springs, white, no longer available, Includes: Ref. 4 - 27

1шт.

K948413

SEAT

SUSPENSION ASSEMBLY - seat, 80 kg springs, yellow, no longer available order suspension assembly K950589 above, Includes: Ref. 4 - 27

1шт.

4

K963425

KNOB

- seat locking pin, with seat belt

1шт.

5

K965123

PIN

- seat locking, 8 mm diameter, no longer available

1шт.

5

K965311

WASHER

PIN - seat locking, 10 mm diameter

1шт.

6

K38632

SPRING

CLIP - spring, with seat belt (Replaces clip K963612)

1шт.

7

100-3321

SNAP RING,#X21, .185" Dia, E-Type

CLIP - locking pin, 8 mm diameter (Replaces clip K965124)

1шт.

7

100-3337

SNAP RING,E-Type, 0.3" OD

Ring, Retaining, (Replaces ring A27795) #37, .300" Dia, E-Type

1шт.

8

K965125

SUPPORT

CARRIER - support, no longer available

1шт.

9

K260659

ROLLER

- nylon (Replaces roller K962432)

2шт.

10

K964784

SPRING

FRAME - spring, no longer available

1шт.

11

K962443

SCREW

BOLT - coach, 10 mm x 1 inch, frame to support, no longer available

2шт.

492-11038

LOCK WASHER,3/8"

frame to support (Replaces washer K19482) 3/8"

2шт.

K962493

NUT

- hex, 10 mm, Serial Range: frame-support

2шт.

12

827361C1

SPRING

- tension, 60 kg without seat belt (Replaces spring K962437)

2шт.

12

K964944

SPRING

- tension, 80 kg heavy duty, with seat belt

2шт.

13

3134838R1

HOLDER

BRACKET - spring tensioner (Replaces bracket K962442)

1шт.

K626686

WASHER

- flat, 1/2 inch (Replaces washer K19474)

1шт.

14

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), (Replaces pin K19528) 3/32" x 3/4"

1шт.

15

K962436

SCREW

- tension, no longer available (Replaces screw K963418)

1шт.

16

K964798

BEAM

- suspension (Replaces beam K963431)

1шт.

17

K963452

PIN

- locating, no longer available

1шт.

18

3134834R1

BUSHING

- suspension (Replaces bushing K962431)

4шт.

19

432-1016

COTTER PIN,5/32" x 1"

PIN, SPLIT (COTTER), 5/32" x 1"

1шт.

20

3134840R1

PIN

- pivot, no longer available (Replaces pin K962441)

1шт.

21

934898R1

LOCK PIN,M4 x 24, Slotted

PIN - suspension (Replaces pin K962495)

2шт.

22

3134835R1

BUMPER

STOP - rubber (Replaces stop K962434)

1шт.

23

K964791

BRACKET

SUPPORT - sliding

1шт.

24

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Support to bracket (Replaces bolt K602982) Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

K19472

WASHER

- flat, 3/8 inch, Serial Range: support-bracket

4шт.

492-11038

LOCK WASHER,3/8"

support to bracket (Replaces washer K19482) 3/8"

4шт.

25

K964817

DAMPER

- hydraulic

1шт.

26

K962433

PIN

- suspension

1шт.

27

K962494

RING, SNAP

RING - snap, suspension

2шт.

28

K943046

BRACKET

- support

1шт.

29

K925114

BRACKET

- trailer socket, bracket to support, no longer available

2шт.

30

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch, bracket to support (Replaces bolt K602734)

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer K626341) 1/4"

1шт.

31

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Support to axle housing Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

492-11038

LOCK WASHER,3/8"

support to axle housing (Replaces washer K19482) 3/8"

4шт.

K159600

BELT

ASSEMBLY - seat (Replaces belt assembly K945347), Includes: Ref. 32 - 33 and Washer

1шт.

32

NSS

NOT SOLD SEPARAT

BELT - seat, order belt assembly K159600 above

1шт.

33

K945348

BOLT

- special, 5/16 inch NF, no longer available

2шт.

K945349

WASHER

- special, 9/16 inch, no longer available

2шт.
