Запчасти Case IH 885N (9-74) - SEAT SUSPENSION, 885LP, 885Q, 885QH AND 885SK TRACTORS (09) - CHASSIS/ATTACHMENTS

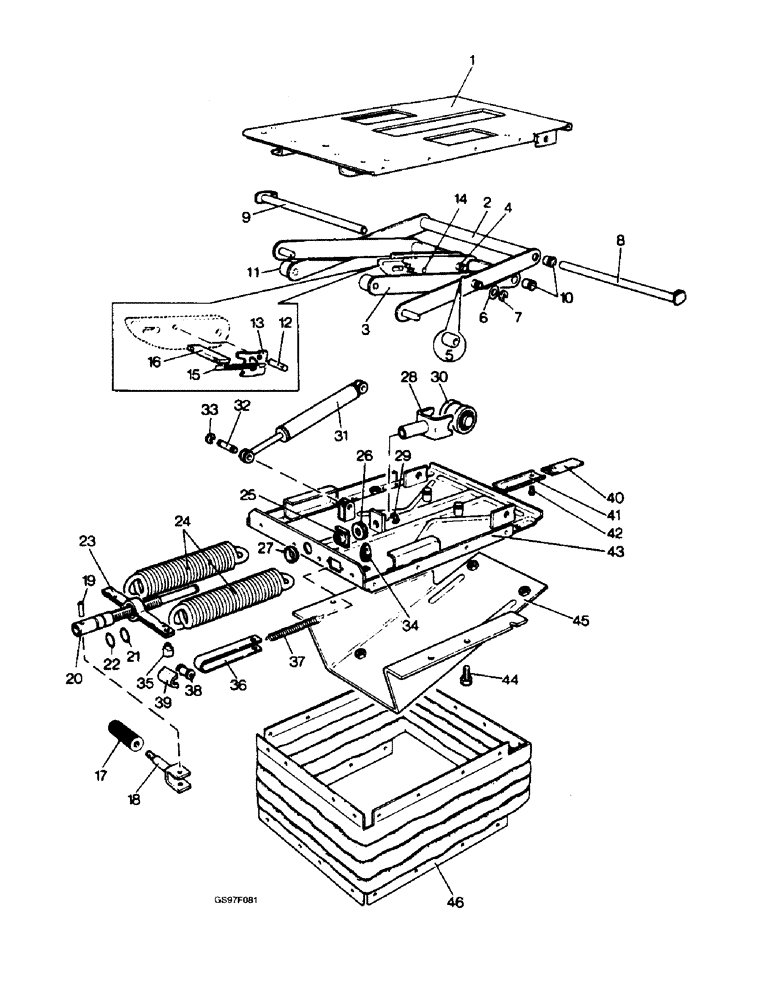

Схема запчастей Case IH 885N - (9-74) - SEAT SUSPENSION, 885LP, 885Q, 885QH AND 885SK TRACTORS (09) - CHASSIS/ATTACHMENTS
27
26
16
21
11
31
24
7
44
39
13
18
19
35
14
22
25
9
42
34
38
29
36
46
37
17
2
4
15
12
45
6
40
10
43
20
8
3
1
28
41
32
33
23
30

Артикул

Название

Примечание

Количество

K953184

SEAT

SUSPENSION ASSEMBLY - used with 885Q, 885QH and 885Sk tractors, no longer available, Includes: Ref. 1 - 46 and Fastener

1шт.

K201697

SPARE PART

SUSPENSION ASSEMBLY - used with 885LP tractors, no longer available, Includes: Ref. 1 - 46 and Fastener

1шт.

1

K964636

PLATE

- top, no longer available

1шт.

2

K964663

FRAME

SCISSORS - outer half, used with 885Q, 885QH and 885Sk tractors, no longer available

1шт.

3

K262108

FRAME

SCISSORS - inner half, used with 885Q, 885QH and 885Sk tractors (Replaces scissors K964664)

1шт.

K965789

SUSPENSION BLOCK

SCISSORS - used with 885LP tractors, no longer available

1шт.

4

K964676

PIN

PEG - brass, scissors inner half, used with 885Q, 885QH and 885Sk tractors, no longer available

2шт.

5

K965085

BUSHING

- nylon, used with 885Q, 885QH and 885Sk tractors, no longer available

2шт.

6

K626686

WASHER

- flat, 1/2 inch, used with 885Q, 885QH and 885Sk tractors

2шт.

7

100-3337

SNAP RING,E-Type, 0.3" OD

Ring, Retaining, , Used with 885Q, 885QH and 885Sk tractors (Replaces ring A27795) #37, .300" Dia, E-Type

2шт.

8

3225304R1

PIN

SHAFT - pivot, upper, 10-1/8 inch (257 mm) long (Replaces shaft K964659)

1шт.

9

K262110

SHAFT

- pivot, lower, 8-13/16 inch (224 mm) long (Replaces shaft K964660)

1шт.

10

3225373R1

BUSHING

- suspension (Replaces bushing K964668)

4шт.

11

3225310R1

ROLLER

- nylon, 13/16 x 1/2 x 5/8 inch (Replaces roller K964667)

4шт.

12

3225320R1

PIN

- suspension (Replaces pin K964675)

1шт.

13

3225303R1

RATCHET

PLATE - cam (Replaces plate K964658)

2шт.

14

K964677

SPRING

PEG - brass, spring anchor, used with 885Q, 885QH and 885Sk tractors, no longer available

2шт.

15

3225307R1

SPRING

- suspension (Replaces spring K964662)

2шт.

16

3225306R1

RETAINER

- spring (Replaces retainer K964661)

1шт.

K964647

ADJUSTER

ASSEMBLY - spring tension, no longer available as an assembly, order components, Includes: Ref. 17 - 22

1шт.

17

3223481R1

HANDLE

KNOB - adjuster (Replaces knob K964641)

1шт.

18

3223482R1

FORK

- adjuster (Replaces fork K964642)

1шт.

19

934903R1

GROOVED PIN,M5 x 28

PIN - adjuster, fork to shaft (Replaces pin K964643)

1шт.

3225348R1

STOP

BUSHING - adjuster, fork to shaft, used with 885LP tractors (Replaces bushing K965794)

1шт.

20

3225294R1

PIN

SHAFT - threaded (Replaces shaft K964646)

1шт.

30788R1

LOCK PIN,M3 x 16, Slotted

PIN - carrier to shaft, used with 885LP tractors (Replaces pin K965790)

1шт.

21

3225323R1

O-RING

O-RING - red (Replaces O-ring K964678)

1шт.

22

3225324R1

O-RING

O-RING - black (Replaces O-ring K964679)

1шт.

23

3225296R1

HOLDER

CARRIER - spring (Replaces carrier K964648)

1шт.

24

3225330R1

SPRING

- suspension (Replaces spring K965200)

2шт.

25

3225317R1

NUT,Weld, M12

- captive (Replaces nut K964672)

1шт.

K964690

WASHER

- flat, 15/16 x 5/16 x 1/16 inch, no longer available

1шт.

26

3225318R1

BEARING, BALL

BEARING - needle roller (Replaces bearing K964673)

1шт.

3225319R1

WASHER

- flat, 1-3/16 x 3/8 x 1/8 inch (Replaces washer K964674)

1шт.

27

3225297R1

BUSHING

- nylon (Replaces bushing K964649)

1шт.

28

3225302R1

FORK

- suspension (Replaces fork K964657)

1шт.

29

100-3321

SNAP RING,#X21, .185" Dia, E-Type

Ring, Retaining, (Replaces ring A22356) #X21, .185" Dia, E-Type

1шт.

30

3225301R1

NEEDLE BEARING

- needle roller (Replaces bearing K964656)

1шт.

31

3225300R1

SHOCK ABSORBER

DAMPER - hydraulic (Replaces damper K964655)

1шт.

32

K964654

PIN

- suspension, used with 885Q, 885QH and 885Sk tractors, no longer available

2шт.

32

322534R1

WASHER

PIN - suspension, used with 885LP tractors (Replaces pin K965791)

2шт.

33

100-3321

SNAP RING,#X21, .185" Dia, E-Type

Ring, Retaining, , Suspension (Replaces clip K621592) #X21, .185" Dia, E-Type

4шт.

34

3134835R1

BUMPER

STOP - bumper, rubber (Replaces stop K962434)

2шт.

35

3225315R1

BUTTON

- nylon, tape to carrier (Replaces button K964670)

1шт.

36

K964650

INDICATOR

TAPE - suspension, used with 885Q, 885QH and 885Sk tractors, no longer available

1шт.

36

3225329R1

DIAL

TAPE - suspension, used with 885LP tractors (Replaces tape K965792)

1шт.

37

K964680

SPRING

- suspension, used with 885Q, 885QH and 885Sk tractors, no longer available

1шт.

37

3225382R1

BUSHING

SPRING - suspension, used with 885LP tractors (Replaces spring K965793)

1шт.

38

3225299R1

ROLLER

- nylon (Replaces roller K964653)

1шт.

39

3225282R1

GUIDE

COVER - plastic, roller (Replaces cover K964638)

1шт.

40

K964669

PAD

- rubber, no longer available

1шт.

41

K964671

PLATE

- bearing, no longer available

1шт.

42

K964683

RIVET

- plate to base plate, no longer available

2шт.

43

K964637

BASE

PLATE - base, no longer available

1шт.

44

934679R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 4.6

SCREW - hex, M8 x 20 mm (Replaces screw K650029)

6шт.

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

WASHER - external tooth lock, 5/16 inch (Replaces washer K11517)

6шт.

45

K953185

SEAT

BRACKET - support, no longer available

1шт.

46

K964684

COVER

- suspension, no longer available

1шт.

60-1613T1

FASTENER

- retaining snap (Replaces fastener K964645)

30шт.

Выбрано товаров: 59
