Запчасти Case IH 885N (9-70) - CAB FINISHING PARTS, ALL MODELS WITH CLAD DB WEATHERFRAME (09) - CHASSIS/ATTACHMENTS

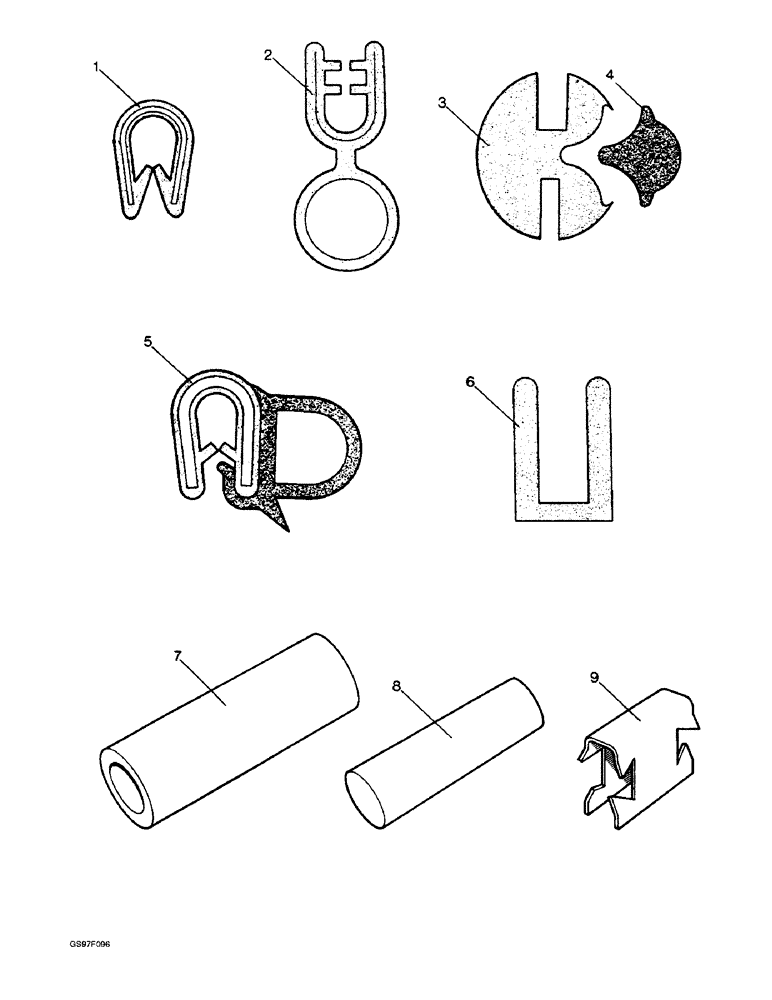

Схема запчастей Case IH 885N - (9-70) - CAB FINISHING PARTS, ALL MODELS WITH CLAD DB WEATHERFRAME (09) - CHASSIS/ATTACHMENTS
6
9
3
5
1
7
4
8
2

Артикул

Название

Примечание

Количество

1

K927167

BRAKE

STRIP - finishing (Replaces strip K961978)

1шт.

2

K691979

PANEL

SEAL - panel, no longer available

1шт.

3

K692078

RUBBER STRIP

STRIP - glazing , no longer available (Replaces strip K691980)

1шт.

4

K692079

RUBBER

STRIP - filler , no longer available (Replaces strip K691981)

1шт.

5

K691985

SEAL

STRIP - sealing, no longer available

1шт.

6

K692009

STRIP

- channel, no longer available

1шт.

7

K691905

JOINT

SPACER - joining, 11 x 75 mm, no longer available

4шт.

8

K773767

JOINT

SPACER - joining, 5/16 x 2 inch, no longer available

4шт.

9

K692054

BRACKET

CLIP - retaining , no longer available

24шт.

K773161

MAT

- rubber, right-hand platform, no longer available

1шт.

K773162

MAT

- rubber, left-hand platform, no longer available

1шт.

Выбрано товаров: 11
