Запчасти Case IH 885N (9-62) - CAB INTERNAL TRIM AND GLAZING, 885Q AND 885QH TRACTORS (09) - CHASSIS/ATTACHMENTS

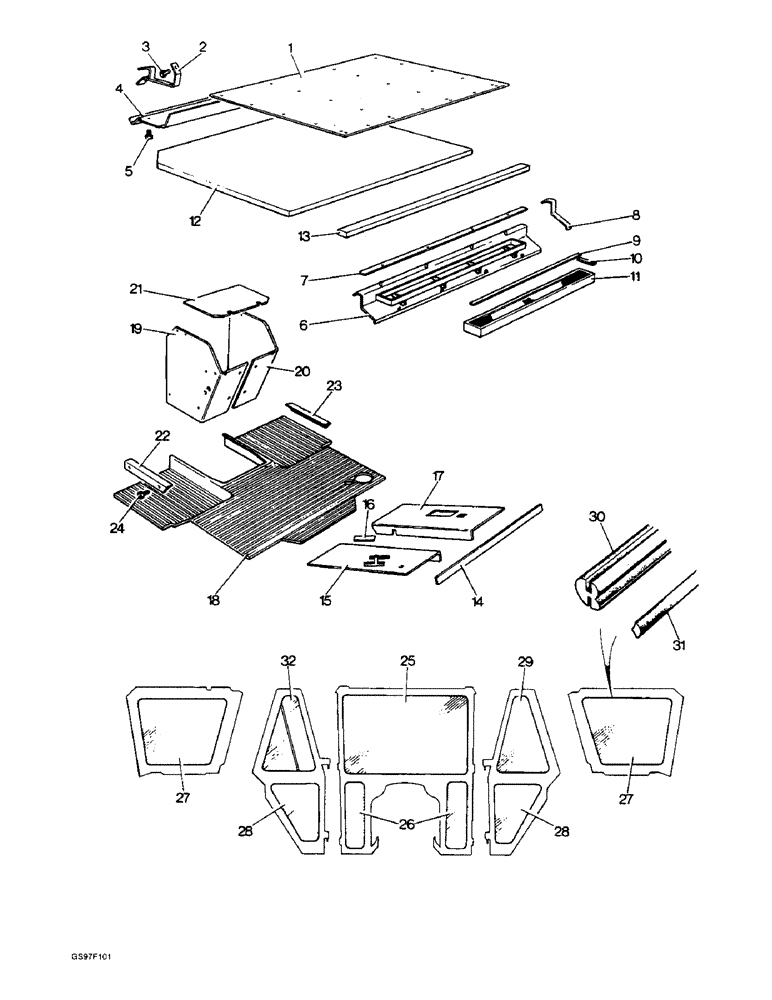

Схема запчастей Case IH 885N - (9-62) - CAB INTERNAL TRIM AND GLAZING, 885Q AND 885QH TRACTORS (09) - CHASSIS/ATTACHMENTS
10
26
8
11
32
9
1
4
28
25
19
22
17
27
28
29
13
21
27
7
16
23
15
14
6
31
20
24
3
2
5
12
18
30

Артикул

Название

Примечание

Количество

1

K952468

DUCT

COVER - duct, cab roof, no longer available

1шт.

2

K952778

SUPPORT

BRACKET - support, top cover, no longer available

3шт.

3

K602846

SCREW,5/16" - 18 x 5/8", Gr S

- set, 5/16 NC x 5/8 inch, Serial Range: brackets-cab

6шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , brackets to cab (Replaces washer K19481) 5/16"

6шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, Brackets to cab (Replaces nut K607044)

6шт.

4

K952725

COVER

- top, no longer available

1шт.

5

K624527

SCREW

- self-tapping, No.6 x 1/2 inch, cover to brackets, no longer available

9шт.

K626760

WASHER

- cup, No. 6, cover to brackets, no longer available

9шт.

6

K952190

DOOR

- access, filter, no longer available

1шт.

7

K952475

SEAL

STRIP - sealing, 5 x 20 mm x 37-1/2 inch (953 mm) long, filter door, no longer available

2шт.

8

K952476

SEAL

STRIP - sealing, 5 x 20 mm x 8-5/8 inch (219 mm) long, filter door, no longer available

2шт.

9

K952477

SEAL

STRIP - sealing, 5 x 12 mm x 32 inch (813 mm) long, filter to roof, no longer available

2шт.

10

K952769

SEAL

STRIP - sealing, 5 x 12 mm x 4 inch (102 mm) long, filter to roof, no longer available

2шт.

11

K952133

FILTER

- air, cab ventilation, no longer available

1шт.

12

K950396

INSULATOR

- cab roof, no longer available

1шт.

13

K953080

INSULATOR

STRIP - insulating, cab roof, no longer available

1шт.

14

K952698

STRIP

INSULATOR - rear cross member, no longer available

1шт.

15

K951046

COVER

INSULATOR - left-hand rear, no longer available

1шт.

16

K951389

FLOOR

STRIP - insulating, left-hand, no longer available

1шт.

17

K951047

COVER

INSULATOR - right-hand rear, no longer available

1шт.

18

K950268

INSULATOR

MAT - insulating, cab floor, no longer available

1шт.

19

K951050

PANEL, SIDE

INSULATOR - console, left-hand, no longer available

1шт.

20

K951049

INSULATOR

- console, right-hand, no longer available

1шт.

21

K950397

INSULATOR

- console, top, no longer available

1шт.

22

K950608

PLATE

- tread, left-hand, no longer available

1шт.

23

K950607

PLATE

- tread, right-hand, no longer available

1шт.

24

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SCREW - set, 5/16 NC x 3/4 inch, plates to cab floor

4шт.

K626682

WASHER

- flat, 5/16 inch, plates to cab floor

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , plates to cab floor (Replaces washer K19481) 5/16"

4шт.

25

K951052

WINDSHIELD

GLASS - windscreen, no longer available

1шт.

26

K951053

GLASS

- bulkhead panel, no longer available

2шт.

27

K772654

WINDOW

GLASS - side panel, no longer available

2шт.

28

K950362

GLASS

- door window, lower, no longer available

2шт.

29

K950361

DOOR

GLASS - door window, upper, left-hand, no longer available

1шт.

30

K692078

RUBBER STRIP

STRIP - window glazing, no longer available

1шт.

31

K692079

RUBBER

STRIP - filler, no longer available

1шт.

32

K951637

WINDOW

ASSEMBLY - scoop, right-hand door, no longer available, Includes: Panel's and Pivot

1шт.

K965205

GLASS

PANEL - glass, fixed, no longer available

1шт.

K965204

GLASS

PANEL - glass, opening, no longer available

1шт.

K965203

PIVOT

- nylon, stay to opening panel, no longer available

2шт.

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

- machine, pan Phillips, No. 10 NF x 1/2 inch, window stay to door (Replaces screw K614944)

4шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, , Window stay to door (Replaces washer K626340) #10

4шт.

K626310

WASHER

- flat, 3/16 inch, window stay to door, no longer available

4шт.

Выбрано товаров: 43
