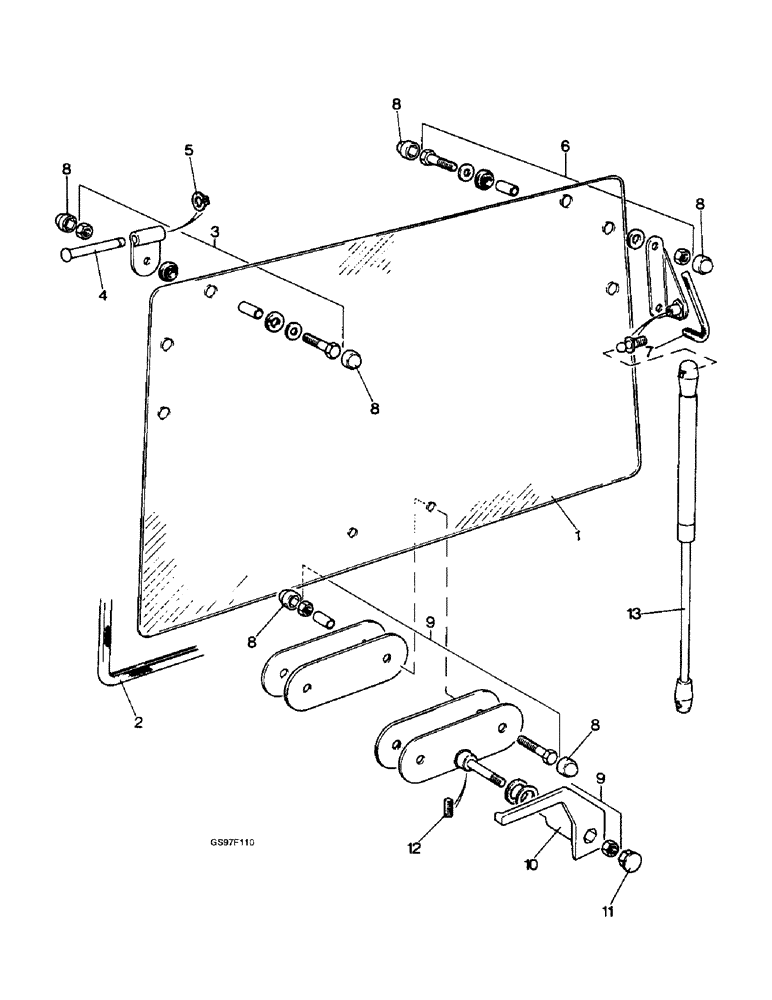

Запчасти Case IH 885N (9-60) - OPENING REAR WINDOW, 885LP TRACTORS (09) - CHASSIS/ATTACHMENTS

K260033

WINDOW

ASSEMBLY - opening rear, Sekura 41.027, no longer available, Includes: Ref. 1 - 13

1шт.

1

K260035

GLASS

- Sekura 930.145, no longer available

1шт.

2

K260036

FITTING

STRIP - edging, Sekura 21.265, no longer available

1шт.

3

K260037

HINGE

ASSEMBLY - complete, Sekura 41.116, no longer available, Includes: Ref. 4 and 5

1шт.

4

K965496

PIN

- hinge, Sekura 20.724, no longer available

2шт.

5

K965569

RING

- snap, Sekura 917.012, no longer available

4шт.

6

K260038

BRACKET

ASSEMBLY - left-hand, Sekura 41.118, no longer available, Includes: Ref. 7 and 8

1шт.

K260039

BRACKET

ASSEMBLY - right-hand, Sekura 41.119, no longer available, Includes: Ref. 7 and 8

1шт.

7

K260040

STRIP

- edging, Sekura 21.266, no longer available

2шт.

8

K965671

CAP

- nut, M6, Sekura 958.030

4шт.

9

K303631

HANDLE

ASSEMBLY - Sekura 41.117, no longer available (Replaces handle assembly K260041), Includes: Ref. 10 - 12

1шт.

10

K965657

HANDLE

- Sekura 21.123, no longer available

1шт.

11

K965672

STOP

PLUG - plastic, Sekura 958.505, no longer available

1шт.

12

K260042

SCREW

- locking, Sekura 906.045, no longer available

1шт.

13

K260043

CYLINDER

SPRING - gas pressure, Sekura 963.105, no longer available

2шт.
