Запчасти Case IH 885N (9-58) - REAR PANEL, FLEXIBLE, 885Q AND 885QH TRACTORS (09) - CHASSIS/ATTACHMENTS

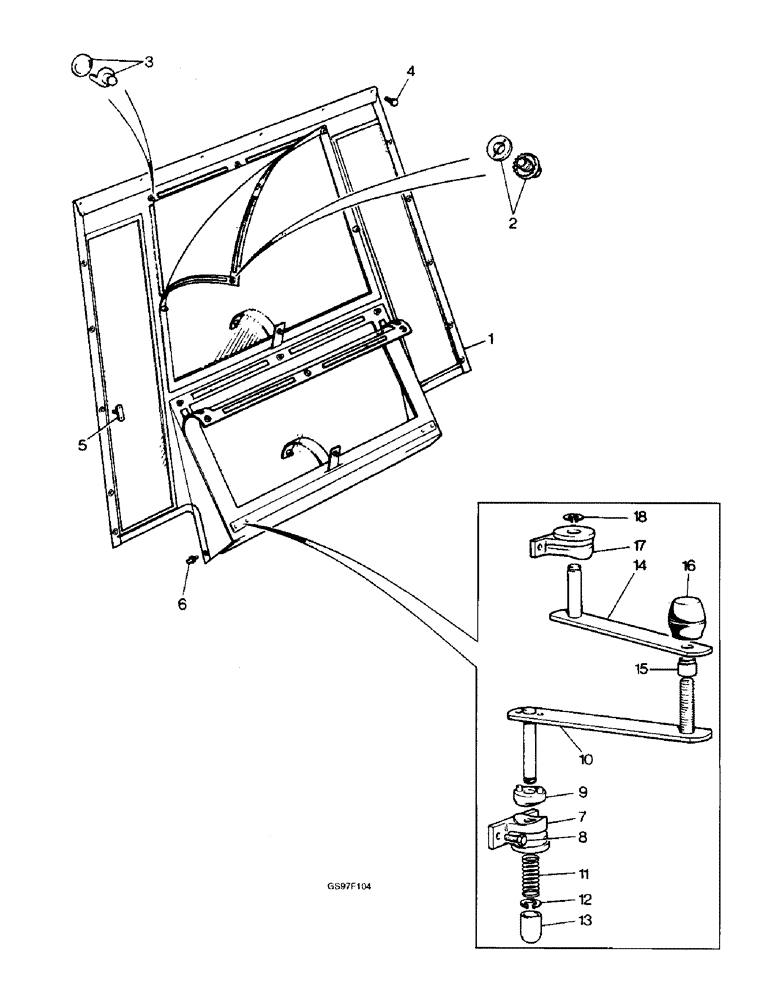

Схема запчастей Case IH 885N - (9-58) - REAR PANEL, FLEXIBLE, 885Q AND 885QH TRACTORS (09) - CHASSIS/ATTACHMENTS
8
13
17
18
9
1
10
2
7
16
3
15
12
4
5
14
11
6

Артикул

Название

Примечание

Количество

1

K951700

PANEL

ASSEMBLY - flexible rear, no longer available, Includes: Ref. 2 and 3

1шт.

2

K624589

BUTTON

- push, female, no longer available

22шт.

3

K624593

BUTTON

- push, male, no longer available

12шт.

4

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch, panel to cab roof (Replaces bolt K602847)

6шт.

K626682

WASHER

- flat, 5/16 inch, panel to cab roof

6шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , panel to cab roof (Replaces washer K19481) 5/16"

6шт.

K607201

NUT

- wing, 5/16 inch NC, panel to cab roof, no longer available

6шт.

5

K624588

BUTTON

FASTENER - push button, male riveted, cab side panels, no longer available

8шт.

6

K624595

BUTTON

FASTENER - push button, male threaded, cab side panels, no longer available

4шт.

K626946

WASHER

- flat, cab side panels

2шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, , Cab side panels (Replaces washer K626340) #10

2шт.

K11109

NUT

- hex, 2 BA, cab side panels

2шт.

K952497

NUT

- special, 2 BA, cab side panels, no longer available

2шт.

7

K952200

HINGE

BLOCK - hinge, no longer available

2шт.

8

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch, blocks to cab (Replaces bolt K602733)

4шт.

493-41026

LOCK WASHER,Ext Tooth, 1/4"

WASHER - external tooth lock, 1/4 inch, blocks to cab (Replaces washer K626552)

4шт.

9

K952240

CAM

- hinge, no longer available

2шт.

10

K952239

HINGE

- lower, no longer available

2шт.

11

K625295

SPRING

- hinge block, no longer available

2шт.

K19472

WASHER

- flat, 3/8 inch

4шт.

12

100-3337

SNAP RING,E-Type, 0.3" OD

Ring, Retaining, (Replaces ring A27795) #37, .300" Dia, E-Type

2шт.

13

K947518

COVER

- spring

2шт.

14

K952238

HINGE

- upper, no longer available

2шт.

15

K953110

BUSHING

SPACER - distance, no longer available

2шт.

K19472

WASHER

- flat, 3/8 inch

2шт.

16

K950493

KNOB

- hinge

2шт.

17

K952200

HINGE

BLOCK - hinge, no longer available

2шт.

K19472

WASHER

- flat, 3/8 inch

2шт.

18

A27795

RING

- snap, 3/8 inch OD

2шт.

Выбрано товаров: 29
