Запчасти Case IH 885N (9-56) - REAR PANEL, RIGID, 885Q AND 885QH TRACTORS (09) - CHASSIS/ATTACHMENTS

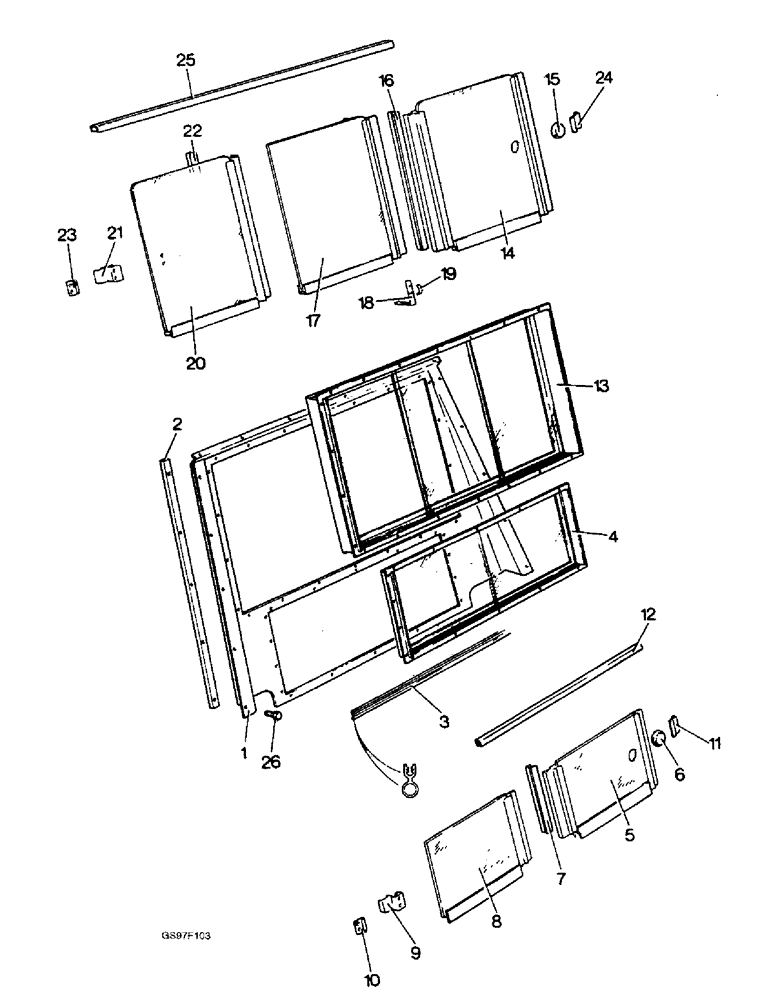

Схема запчастей Case IH 885N - (9-56) - REAR PANEL, RIGID, 885Q AND 885QH TRACTORS (09) - CHASSIS/ATTACHMENTS
7
22
16
12
25
24
2
26
8
19
20
9
21
1
15
17
10
23
4
13
11
18
14
6
3
5

Артикул

Название

Примечание

Количество

K956196

PANEL

ASSEMBLY - rigid, rear, tractor serial number 11010300 and after, no longer available, Includes: Ref. 1 - 25

1шт.

K955683

PANEL

ASSEMBLY - rigid, rear, tractor serial numbers prior to 11010300, no longer available, Includes: Ref. 1 - 25

1шт.

1

K955214

PANEL

- rear, tractor serial number 11010300 and after, no longer available

1шт.

1

K955022

PANEL

- rear, tractor serial numbers prior to 11010300, no longer available

1шт.

2

K955219

RUBBER

STRIP - sealing, 1/4 x 5/8 x 33-1/2 inch (851 mm) long, tractor serial number 11010300 and after, no longer available

2шт.

2

K955387

SEAL

STRIP - sealing, 1/4 x 5/8 x 35-1/4 inch (895 mm) long, tractor serial numbers prior to 11010300, no longer available

2шт.

3

K691979

PANEL

STRIP - sealing, no longer available

1шт.

4

K955322

WINDOW

ASSEMBLY - double sliding, no longer available, Includes: Ref. 5 - 12

1шт.

5

K965117

PANEL

ASSEMBLY - glass, with circular finger pull, no longer available, Includes: Ref. 6 and 7

1шт.

6

K965108

KNOB

PULL - finger, circular, no longer available

1шт.

7

K965120

SEAL

WEATHERSEAL - nylon, no longer available

1шт.

8

K965118

PANEL

ASSEMBLY - glass, with finger pull, no longer available, Includes: Ref. 9

1шт.

9

K965109

KNOB

PULL - finger, with catch, no longer available

1шт.

10

K965112

CATCH

PLATE - catch, left-hand side, no longer available

1шт.

11

K965113

CATCH

PLATE - catch, right-hand side, no longer available

1шт.

12

K965119

WEB

BING - nylon, no longer available

1шт.

13

K955303

WINDOW

ASSEMBLY - triple sliding, tractor serial number 11010300 and after, no longer available, Includes: Ref. 14 - 25

1шт.

13

K955321

WINDOW

ASSEMBLY - triple sliding, tractor serial numbers prior to 11010300, Includes: Ref. 14 - 25

1шт.

14

K965194

PANEL

ASSEMBLY - glass, with circular finger pull, tractor serial number 11010300 and after, no longer available, Includes: Ref. 15 and 16

1шт.

14

K965103

PANEL

ASSEMBLY - glass, with circular finger pull, tractor serial numbers prior to 11010300, no longer available, Includes: Ref. 15 and 16

1шт.

15

K965108

KNOB

PULL - finger, circular, no longer available

1шт.

16

K965120

SEAL

WEATHERSEAL - nylon, no longer available

1шт.

17

K965193

PANEL

ASSEMBLY - glass center, tractor serial number 11010300 and after, no longer available, Includes: Ref. 18 and 19

1шт.

17

K965102

PANEL

ASSEMBLY - glass center, tractor serial numbers prior to 11010300, no longer available, Includes: Ref. 18 and 19

1шт.

18

K965107

BOLT

- sliding, window catch, no longer available

1шт.

19

K965106

SPRING

- sliding bolt, no longer available

1шт.

20

K965195

PANEL

ASSEMBLY - glass, with finger pull, tractor serial number 11010300 and after, no longer available, Includes: Ref. 21 and 22

1шт.

20

K965105

PANEL

ASSEMBLY - glass, with finger pull, tractor serial numbers prior to 11010300, no longer available, Includes: Ref. 21 and 22

1шт.

21

K965109

KNOB

PULL - finger, with catch, no longer available

1шт.

22

K965120

SEAL

WEATHERSEAL - nylon, no longer available

1шт.

23

K965112

CATCH

PLATE - catch, left-hand side, no longer available

1шт.

24

K965113

CATCH

PLATE - catch, right-hand side, no longer available

1шт.

25

K965119

WEB

BING - nylon, no longer available

1шт.

26

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SCREW - set, 5/16 NC x 3/4 inch

21шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer K19481) 5/16"

21шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut K607044)

21шт.

Выбрано товаров: 36
