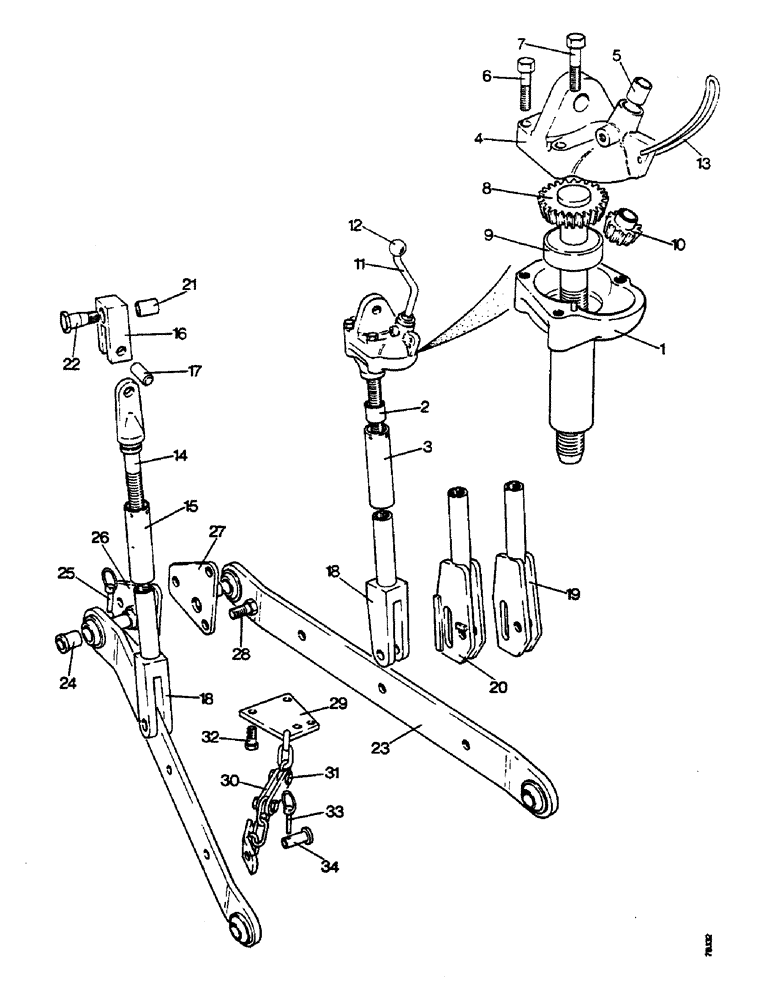

Запчасти Case IH 885 (E26) - SELECTAMATIC HYDRAULIC SYSTEM, LIFT RODS & LOWER LINKS, 885 TRACTORS, W/ DUAL CATEGORY LINKAGE U1504 (07) - HYDRAULIC SYSTEM

K940508

LEVER

LEVELLING LEVER, complete, Includes: Ref. 1 - 13

1шт.

1

K962977

HOUSING

GEAR HOUSING, with bush and tube

1шт.

2

K621339

BUSHING

BUSH, gear housing

1шт.

3

K922657

TUBE,1.75" DIA x 5.25" L

1-3/4 x 5-1/4 in, gear housing

1шт.

4

K962691

COVER

CAP, with bushes and dowels

1шт.

5

K621340

BUSHING

BUSH, cap

2шт.

6

K600405

BOLT

3/8 UNC x 1-5/8, cap to gear housing

2шт.

7

K600407

BOLT

3/8 UNC x 1-7/8 in, cap to gear housing

2шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in, cap to gear housing

4шт.

K32063

PIN

DOWEL, 3/16 x 1/2 in

2шт.

8

K919770

SHAFT

LEVELLING SCREW, 1 in Whitworth x 9-5/16 in

1шт.

9

K19187

THRUST BEARING

1шт.

10

K919769

GEAR

BEVEL PINION

1шт.

K623741

SPRING

PIN, 5/32 x 3/4 in

1шт.

11

K919761

LEVER

HAND LEVER, with knob

1шт.

12

K919763

BUTTON

KNOB

1шт.

K621790

RING, SNAP

CIRCLIP, 1/2 in external

1шт.

13

K924723

SPRING

LATCH

1шт.

K940505

ROD

LIFT ROD, complete, Includes: Ref. 14 - 18 and grease nipple

1шт.

14

K962978

SET SCREW

ADJUSTING SCREW, 1 in Whitworth x 10-7/8 in, with tube

1шт.

15

K940510

TUBE,1.75" ID x 6.187" L

1-3/4 x 6-1/4 in, adjusting screw

1шт.

16

K921914

FORK

END

2шт.

17

K948353

PIVOT PIN

2шт.

K623740

SPLIT PIN/SAFETY PIN

SPRING PIN, 3/16 x 7/8 in

4шт.

18

K940700

NUT

ADJUSTING NUT, 1 in Whitworth x 10-5/8 in, standard

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

5шт.

19

K945967

CLEVIS

ADJUSTING NUT, 10-5/8 in, slotted

2шт.

K19476

WASHER

PLAIN WASHER, 3/4 in

2шт.

20

K922087

ROD

ADJUSTING NUT, 10-5/8 in, right-hand, slotted

1шт.

K921210

ROD

ADJUSTING NUT, 10-5/8 in, left-hand, slotted

1шт.

21

K901963

BUSHING

BUSH

2шт.

22

K601413

BOLT

3/4 UNC x 3-3/4 in

2шт.

K19476

WASHER

3/4 in

2шт.

K607446

NUT

CLEVELOC NUT, 3/4 UNC

2шт.

23

K943631

LINK

LOWER LINK, 30-1/2 in

2шт.

24

K922071

BUSHING

BUSH, link pin

2шт.

25

K920359

PIN

LINCH PIN AND RING

4шт.

26

K943627

BRACKET

HITCH BRACKET, left-hand

1шт.

27

K943628

HITCH ASSY

HITCH BRACKET, right-hand

1шт.

28

K603108

SCREW

SETSCREW, 1/2 UNC x 1-1/2 in, brackets to PTO case

8шт.

K19484

LOCK WASHER

SPRING WASHER, 1/2 in, brackets to PTO case

6шт.

29

K946476

CHAIN (AG)

CHECK CHAIN ASSEMBLY, Includes: Ref. 30 & 31 and Cleveloc nut

2шт.

K946475

CHAIN (AG)

CHAIN, rear half

2шт.

30

K943855

PLATE

4шт.

31

K602906

SCREW

SETSCREW, 3/8 UNC x 1-1/4 in

4шт.

K607460

NUT

CLEVELOC NUT, 3/8 UNC

4шт.

32

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

SETSCREW, 3/8 UNC x 1-1/8 in, chains to PTO case

3шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in, chains to PTO case

3шт.

33

K915678

PIN

LINCH PIN AND RING

2шт.

34

K946108

HEADED PIN

PIN, check chain

2шт.

Telescopic Stabilizers PB 9-78

1шт.
