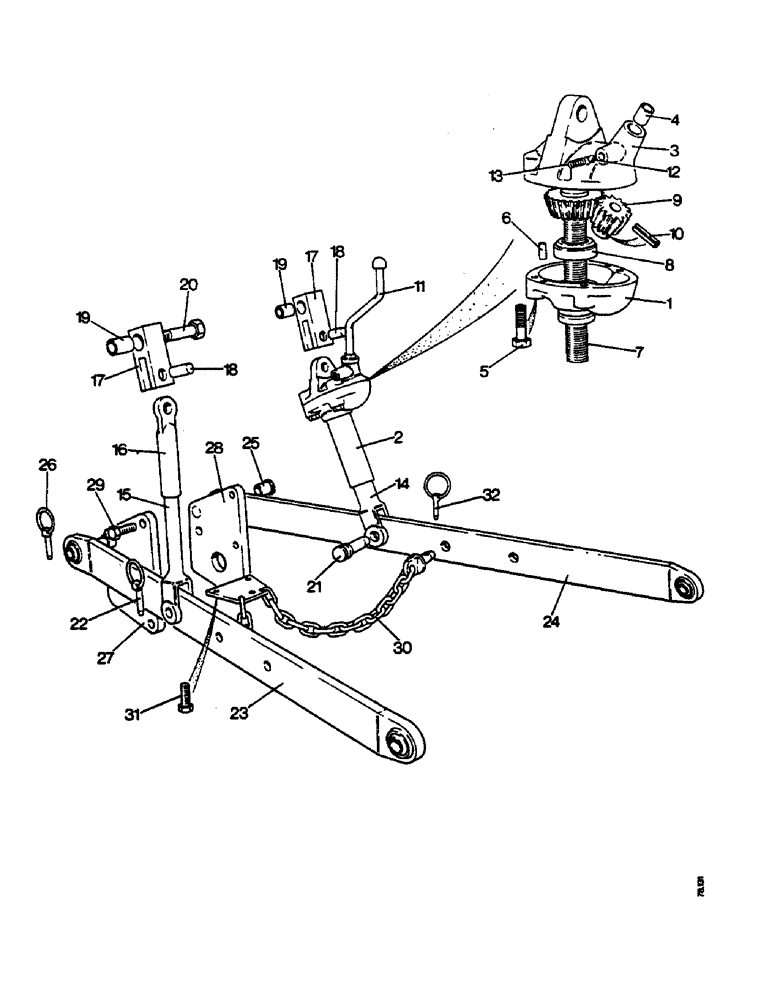

Запчасти Case IH 885 (E24) - SELECTAMATIC HYDRAULIC SYSTEM, LIFT RODS AND LOWER LINKS, 885 TRACTORS (07) - HYDRAULIC SYSTEM

K940515

LEVER

LEVELLING LEVER (complete), Includes: Ref. 1 - 14

1шт.

1

K913166

GEAR

HOUSING

1шт.

2

K913165

TUBE

1-1/4 x 5 in, gear housing

1шт.

3

K961754

CAP

(with bushes and dowels)

1шт.

4

K621373

BUSHING

BUSH, cap

2шт.

5

K602807

SCREW

SETSCREW, 5/16 UNC x 1-1/4 in, cap to gear housing

4шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in, cap to gear housing

2шт.

6

K32063

PIN

DOWEL, 3/16 x 1/2 in, cap to gear housing

1шт.

7

K913224

BEVEL GEAR

LEVELLING SCREW, 3/4 UNC x 7-7/16 in

1шт.

8

K620181

THRUST BEARING

1шт.

9

K913170

GEAR

BEVEL PINION

1шт.

10

K623931

SPLIT PIN/SAFETY PIN

SPRING PIN, 1/8 x 11/16 in

1шт.

11

K913171

LEVER

HAND LEVER

1шт.

12

K620179

BALL

STEEL BALL, 7/16 in

1шт.

13

K625174

SPRING

1шт.

K622251

FITTING

GREASE NIPPLE, 5/16 BSF

1шт.

14

K922761

CLEVIS

ADJUSTING NUT, 3/4 UNC x 7-3/8 in

1шт.

K940498

ROD

LIFT ROD (complete), Includes: Ref. 15 - 19

1шт.

15

K922765

FORK

ADJUSTING SCREW

1шт.

16

K914197

EYE

END

1шт.

17

K901960

FORK

END

2шт.

18

K901962

PIN

PIVOT PIN

2шт.

19

K901963

BUSHING

BUSH

2шт.

20

K601413

BOLT

3/4 UNC x 3-3/4 in, fork ends to lift arms

2шт.

K19476

WASHER

3/4 in, fork ends to lift arms

2шт.

K607446

NUT

CLEVELOC NUT, 3/4 UNC, fork ends to lift arms

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

1шт.

21

K903399

HITCH PIN

LINK PIN, 5/8 x 2-3/16 in

2шт.

22

K66408

PIN

LINCH PIN AND RING

2шт.

23a

K928548

LINK

LOWER LINK, 30-1/2 in, left-hand (Category 1 (U1384)

1шт.

24a

K928549

LINK

LOWER LINK, 30-1/2 in, right-hand (Category 1 (U1384)

1шт.

23b

K928583

LINK

LOWER LINK, 30-1/2 in, left-hand (Categories 1 & 2 (U1385)

1шт.

24b

K928584

LINK

LOWER LINK, 30-1/2 in, right-hand (Categories 1 & 2 (U1385)

1шт.

25

K922071

BUSHING

BUSH, lower links (Categories 1 & 2 (U1385)

2шт.

26

K920359

PIN

LINCH PIN AND RING (Categories 1 & 2 (U1385)

2шт.

27

K940091

BRACKET

HITCH BRACKET, left-hand

1шт.

28

K940092

BRACKET

HITCH BRACKET, right-hand

1шт.

29

K603108

SCREW

BOLT, 1/2 UNC x 1-1/2 in, brackets to PTO case

6шт.

K19484

LOCK WASHER

SPRING WASHER, 1/2 in, brackets to PTO case

6шт.

30

K942994

CHAIN (AG)

CHECK CHAIN

1шт.

31

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

SETSCREW, 3/8 UNC x 1-1/8 in, chains to PTO case

3шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in, chains to PTO case

3шт.

32

K66408

PIN

LINCH PIN AND RING

2шт.
