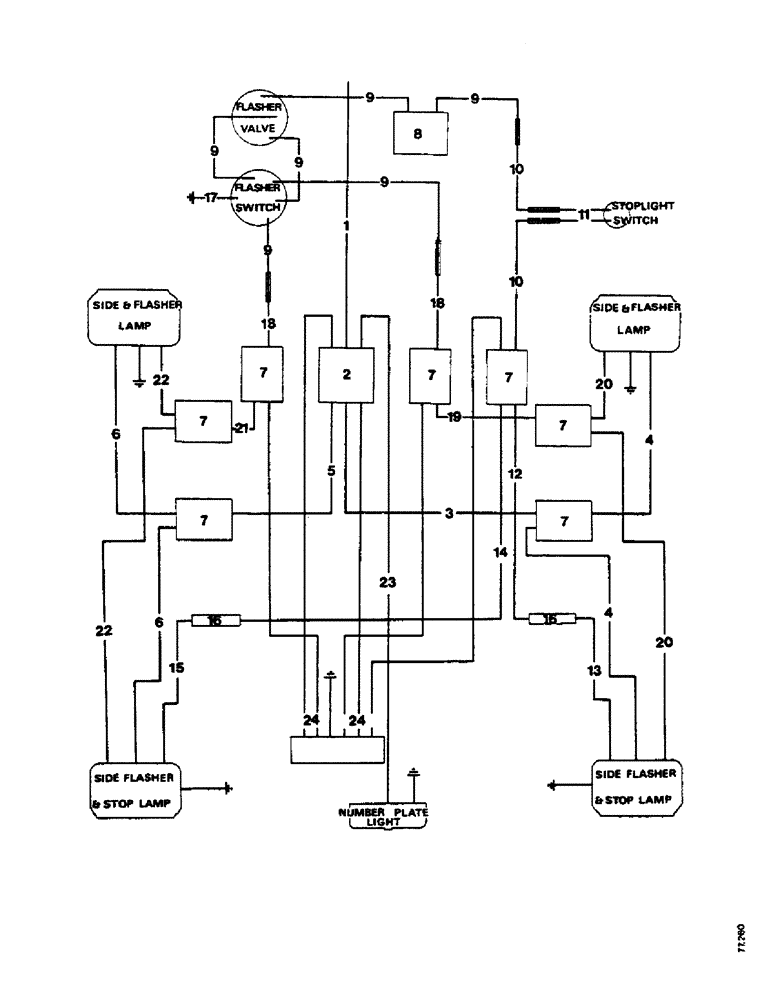

Запчасти Case IH 885 (M34) - ELECT. EQUIP., ELECT. WIRING, SIDE & REAR LAMPS 885 TRAC. EXCEPT W/ LIGHT DUTY FULL FENDERS, UP TO A (06) - ELECTRICAL SYSTEMS

1

K923775

ELECTRICAL WIRE

LEAD, lighting, Serial Range: switch-connector

1шт.

2

K908905

CONNECTOR, ELEC

CONNECTOR three-way

1шт.

3

K925197

NO LONGER SERVICED

LEAD, right-hand side/rear lamp

1шт.

4

K940639

ELECTRICAL WIRE

LEAD, right-hand side/rear lamps

2шт.

5

K925283

NO LONGER SERVICED

LEAD, left-hand side/rear lamps

1шт.

6

K940639

ELECTRICAL WIRE

LEAD, left-hand side/rear lamps

2шт.

7

K86230

CONNECTOR, ELEC

CONNECTOR double

7шт.

8

K925309

CONNECTOR, ELEC

CONNECTOR four-way

1шт.

9

K929555

HARNESS

stop and indicator lamps

1шт.

10

K929738

ELECTRICAL WIRE

LEAD, stop lamps

1шт.

11

K929739

ELECTRICAL WIRE

LEAD, stop lamp switch

1шт.

K621633

CABLE

CLIP, stop lamp switch leads

3шт.

K929740

NO LONGER SERVICED

LEAD, for stop lamp switch K920206 (four wheel brakes)

1шт.

K621672

HOSE CLAMP

CLIP, stop lamp switch lead (four wheel brakes)

3шт.

K19930

GROMMET,3/8" ID x 5/8" Groove Dia

5/8 in, frame platform

1шт.

12

K925285

ELECTRICAL WIRE

LEAD, right-hand stop lamp

1шт.

13

K940645

ELECTRICAL WIRE

LEAD, right-hand stop lamp

1шт.

14

K925284

ELECTRICAL WIRE

LEAD, left-hand stop lamp

1шт.

15

K940645

ELECTRICAL WIRE

LEAD, left-hand stop lamp

1шт.

16

K67916

ELEC CONNECTOR

CONNECTOR single

2шт.

17

K923592

ELECTRICAL WIRE

LEAD, indicator, Serial Range: switch-earth

1шт.

18

K925293

ELECTRICAL WIRE

LEAD, direction indicator lamps

1шт.

19

K925287

ELECTRICAL WIRE

LEAD, right-hand direction indicator lamps

1шт.

20

K940641

NO LONGER SERVICED

LEAD, right-hand direction indicator lamps

2шт.

21

K925286

ELECTRICAL WIRE

LEAD, left-hand direction indicator lamps

1шт.

22

K940640

ELECTRICAL WIRE

LEAD, left-hand direction indicator lamps

2шт.

K947419

COVER

lamp connections

1шт.

K615404

SCREW

No. 10 UNF x 1/2 in

1шт.

K626310

WASHER

3/16 in

1шт.

K925167

CABLE

TUBE cable, right-hand

1шт.

K925168

CABLE

TUBE cable, left-hand

1шт.

K627708

GROMMET

1-1/4 in, fenders.

2шт.

K627704

GROMMET

1 in, fenders.

4шт.

K19930

GROMMET,3/8" ID x 5/8" Groove Dia

5/8 in, fenders.

4шт.

23

K921078

COIL

LEAD, rear number-plate lamp

1шт.

K621644

CLIP

, Serial Range: lead-seat

1шт.

K19930

GROMMET,3/8" ID x 5/8" Groove Dia

5/8 in, seat support

1шт.

24

K925489

HARNESS, 12 in long, trailer socket

1шт.

K925197

NO LONGER SERVICED

LEAD, right-hand side/rear lamp (tractor with shell)

1шт.

K925196

NO LONGER SERVICED

LEAD, left-hand side/rear lamp (fenders)

1шт.

K942599

WIRE HARNESS

LEAD, trailer socket (fenders)

1шт.
