Запчасти Case IH 885 (M24) - ELECTRICAL EQUIPMENT, ELECTRICAL WIRING, STARTING AND HEADLAMPS 885 TRACTORS, S/N 633680 AND AFTER (06) - ELECTRICAL SYSTEMS

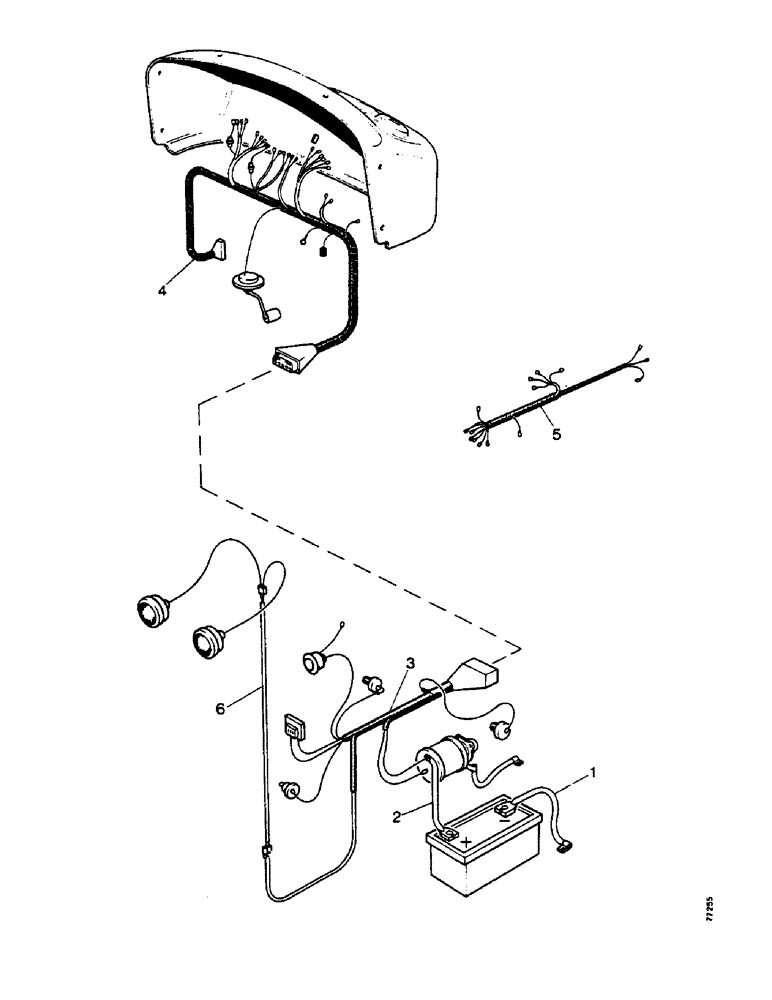

Схема запчастей Case IH 885 - (M24) - ELECTRICAL EQUIPMENT, ELECTRICAL WIRING, STARTING AND HEADLAMPS 885 TRACTORS, S/N 633680 AND AFTER (06) - ELECTRICAL SYSTEMS
4
5
1
6
2
3

Артикул

Название

Примечание

Количество

1

K913945

CABLE

, Serial Range: battery-earth

1шт.

K602840

SCREW

set, 5/16 UNC x 1/2 in

1шт.

K11517

WASHER

spring, 5/16 in

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC

1шт.

2

K947406

CABLE

, Serial Range: battery-starter

1шт.

K15518

CLAMP

CLIP

1шт.

K87560

CONTACT HOUSING

COVER rubber, starter terminal

2шт.

K918762

CABLE

, Serial Range: starter-earth

1шт.

K621702

CLIP

buckle, horn lead to air inlet hose

3шт.

3

K948448

HARNESS

wiring, engine auxiliaries

1шт.

K621709

CLIP

harness to cylinder block

1шт.

L602738

SCREW set, 1/4 UNC x 7/16 in, clip to cylinder block.

1шт.

K19480

SPRING WASHER

spring, 1/4 in, clip to cylinder block.

1шт.

4a

K948449

HARNESS

wiring, instrument panel (shell/fan fenders)

1шт.

4b

K948450

HARNESS

wiring, instrument panel (full fenders)

1шт.

K625003

CLIP

Kwik, 3/8 in deg., Serial Range: harness-panel.

1шт.

K625004

CLIP

Kwik, 1 in deg., Serial Range: harness-panel.

1шт.

K625006

CLIP

Kwik, 1/4 in deg., Serial Range: harness-panel.

1шт.

5

K947483

HARNESS

hazard warning (full fenders)

1шт.

6a

K948467

ELECTRICAL WIRE

LEAD, connector to headlamps, outboard headlamps.

1шт.

K625006

CLIP

leads to bonnet, outboard headlamps.

11шт.

6b

K948468

ELECTRICAL WIRE

LEAD, connector to headlamps, inboard headlamps.

1шт.

K625006

CLIP

leads to bonnet, inboard headlamps.

9шт.

K925268

BLADE

CONNECTOR blade, 25 amp

1шт.

86625206

SCREW,Phillips Drive, Pan HD, #10 - 32 x 1/2"

No. 10 UNF, connector and clip to fuel tank support.

1шт.

K626340

RING

WASHER, 3/16 in, connector and clip to fuel tank support.

1шт.

K617080

NUT

No. 10 UNF, connector and clip to fuel tank support.

1шт.

K10518

BUCKLE

CLIP buckle, fuel tank support

1шт.

Выбрано товаров: 28
